Camera marsarier - montare / probleme

[F l o r i n]

daca montezi camera aftermarket, trebuie delay box.

[NeacsuGabriel]

Salutare. Am si eu o problema cu becurile integrate ale camerei de marsarier After Market, s-au ars, le pot schimba in vre-un fel? De preferat fara sa dau camera jos? Multumesc anticipat.

[F l o r i n]

Nu. Sunt leduri...trebuie dezlipita camera, etc. Din pacate...atata a funcționat. Alta camera acum...

[rais]

Salutare,

Ma poate cineva ajuta cu o informație in legătură cu o unitate media 5K7035200F de pe o Jetta 2017. As vrea sa stiu c fel de intrare are pentru camera marsarier, cel albastru cu 12 pini sau cel cu 26 de pini? Am găsit mai multe variante de oem insa nu știu dacă se potrivesc: 5C6827566B, 5C6827566D sau 5C6827566F? Care ar fi diferența între acestea? Care ar fi varianta oem recomandată pentru această unitate și ce tip de cablaj trebuie?

Mulțumesc!

[F l o r i n]

Are intrare AV. Sunt 2 pini la varianta low, care intra in mufa albastra cu 12 pini. La varianta highline cu linii de ghidaj, ai si firele de can.

[rais]

Multumesc, Florin! Din cate am inteles camerele cu mufa albastra(A,B si C) sunt lowline iar cele gri highline(D,F). Ca sa stiu ce ar trebui sa caut, pentru cele highline e nevoie si de modulul aferent? Daca da, ma poti ajuta cu un cod pentru el?

[F l o r i n]

Nu. Totul e integrat in sigla, la acest model.

Modificat 27 Iunie, 2022 de F l o r i n

[FlorinDenis]

Salutare. Am incercat sa montez o camera de marsarier pe un Golf 6.. am legat fire si tot ce trebuie insa cand am motorul pornit si bag in marsarier, am imaginea bruiata pe navigatie ba chiar uneori dispare.. cand am motorul oprit, contactul pus si bag in marsarier am imagine clara pe navigatie.. Am inteles ca ar fi nevoie sa cumpar un releu, zis si facut.. L am cumparat, acum ce as vrea sa stiu mai exact unde se leaga acele 3 fire care ies din releu : Albastru (1), Rosu (2) & Negru (3).



https://pin.it/3gmvd1c ( imagine pinterest )

[spido]

16 hours ago, F l o r i n said:

Nu. Totul e integrat in sigla, la acest model.

La Jetta ?

Nu. Totul e integrat in camera (cea cu clapa deschidere portbagaj).



@FlorinDenis

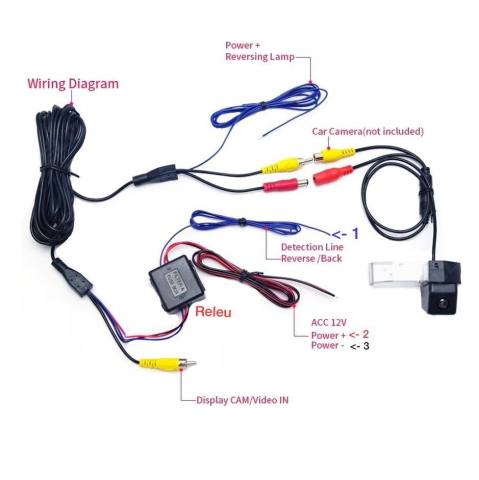

1-albastru semnal marsarier

2-rosu plus contact

3-negru masa.



Scuze ptr quote repetat. Nu stiu cum am reusit sa fac asta. Si nu pot sterge de pe telefon...

Modificat 28 Iunie, 2022 de Bebeee

[F l o r i n]

5 hours ago, spido said:

La Jetta ?

Nu. Totul e integrat in camera (cea cu clapa deschidere portbagaj).

sigla/clapa, in functie de masina/model.... multumesc pt corectare !





[FlorinDenis]

On 28.06.2022 at 7:55, spido a scris:

La Jetta ?

Nu. Totul e integrat in camera (cea cu clapa deschidere portbagaj).



@FlorinDenis

1-albastru semnal marsarier

2-rosu plus contact

3-negru masa.



Scuze ptr quote repetat. Nu stiu cum am reusit sa fac asta. Si nu pot sterge de pe telefon...

Pai acel fir albastru de iasa din Releu, vine in fața, acolo unde se conecteaza mufa de la camera la navigatie.

Mai este un fir albastru de se leaga la marsarier impreuna cu mufa de legatura dintre camera si firul lung

[spido]

Ptr albastru ai 2 variante. Ori te legi in spate pe lampa mers inapoi,ori in fata in navi,pe pinul de mers inapoi. Unele navigatii AM au pin dedicat pe care genereaza semnal mers inapoi.Vezi in diagrama navi.

[unchiu]

Salut. Am facut retrofit la un RNS510 pe un Seat Altea din 2006. Navigatia nu afiseaza nimic cand bag in marsarier, nici macar ecran negru. Prezinta si o eroare de comunicatie. Este posibil sa am nevoie de alt CAN Gateway sau update la cel existent? Rog indrumare. Multumesc.



Thursday,25,August,2022,10:02:57:49450
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 16.8.0.3
Data version: 20160803 DS255
www.Ross-Tech.com


VIN: VSSZZZ5PZ5R033950   License Plate:
Mileage: 279100km-173424mi   Repair Order: 1000


Chassis Type: 5P (1K0)
Scan: 01 02 03 08 09 15 16 17 19 25 37 42 44 46 52 56 62 72 76 7D


VIN: VSSZZZ5PZ5R033950   Mileage: 279100km-173424miles

00-Steering Angle Sensor -- Status: OK 0000
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
76-Park Assist -- Status: Not registered 0011
7D-Aux. Heat -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03G-906-016-BKD.lbl
   Part No SW: 03G 906 016 EG    HW: 028 101 195 0
   Component: R4 2,0L EDC G200AG  6256
   Revision: 12345678    Serial number: SEZ7Z0D2650238
   Coding: 0050078
   Shop #: WSC 06402 785 00200
   VCID: 6CD7AED64F4ADD226C-8038

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 02E-927-770.clb
   Part No SW: 02E 300 041     HW: 02E 927 770 AD
   Component: GSG DSG         041 0814
   Revision: 00004010    Serial number: 00000408170535
   Coding: 0000020
   Shop #: WSC 06402 785 00200
   VCID: 4FAD195ADE1C063A69-801A

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK60-F.lbl
   Part No: 1K0 907 379 K
   Component: ESP FRONT MK60      0104
   Coding: 0023282
   Shop #: WSC 06402 785 00200
   VCID: 3A7B588E759EB392AE-806E

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-907-044.lbl
   Part No: 5P0 907 044 B
   Component: ClimatronicPQ35 004 0202
   Shop #: WSC 00000 000 00000
   VCID: 2F6D79DABEDC663A09-807A

2 Faults Found:
01809 - Actuating Motor for Temperature Flap; Left (V158)
            000 -  -
01810 - Actuating Motor for Temperature Flap; Right (V159)
            000 -  -  - Intermittent

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels: 3C0-937-049-23-H.lbl
   Part No SW: 1K0 937 049 T    HW: 1K0 937 049 T*
   Component: Bordnetz-SG 1.0 H29 0704
   Revision: 00029000    Serial number: 00000001314993
   Coding: 81880F2700041000001E00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 408F2A661342E942E0-8014

   Subsystem 1 - Part No: 5P0 955 119 A  Labels: 1KX-955-119.CLB
   Component: Wischer SE359  012  0401
   Coding: 00056272
   Shop #: WSC 00000

3 Faults Found:
01800 - Light Switch (E1)
            008 - Implausible Signal - Intermittent
01598 - Drive Battery Voltage
            000 -  -  - Intermittent
00154 - Windshield Wiper Motor;  Passenger Side (V217)
            004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 H    HW: 1K0 909 605 H
   Component: S3 AIRBAG VW8   023 0700
   Revision: 06023000    Serial number: 00385D0KCF7/
   Coding: 0021299
   Shop #: WSC 06402 785 00200
   VCID: 31697FA2A8E870CA1F-8064

   Subsystem 1 - Serial number: 6332MSME01772405

   Subsystem 2 - Serial number: 6342MSME2E322905

   Subsystem 3 - Serial number: 6351HSME53160A04

   Subsystem 4 - Serial number: 6361HSME61521904

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY8.lbl
   Part No SW: 1K0 953 549 AM    HW: 1K0 953 549 AM
   Component: J0527           036 0070
   Coding: 0012042
   Shop #: WSC 64011 476 80824
   VCID: 7DF19392243044AACB-8028

   Subsystem 1 - Part No: XXXXXXXXXXX
   Component: E0221           004 0060

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1K0-920-xxx-17.lbl
   Part No: 5P0 920 822 E
   Component: KOMBIINSTRUMENT VO3 1056
   Coding: 0000101
   Shop #: WSC 36211 001 1048576
   VCID: 31697FA2A8E870CA1F-8064

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels: 1K0-907-530-V1.clb
   Part No SW: 1K0 907 530 C    HW: 1K0 907 951
   Component: Gateway         H08 0080
   Revision: 08          Serial number: 2600104720050B
   Coding: 3F3F0B48078202
   Shop #: WSC 06402 785 00200
   VCID: 275D91FA962C3E7AC1-8072

1 Fault Found:
01044 - Control Module Incorrectly Coded
            000 -  -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 112
                    Mileage: 279108 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:58:55


-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No: 5P0 920 822 E
   Component: IMMO                1056
   Shop #: WSC 06402 785 00200
   VCID: 31697FA2A8E870CA1F-8064

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J0506)       Labels: 1T0-035-680.clb
   Part No SW: 1T0 035 680 L    HW: 1T0 035 680 B
   Component: RNS-MID       H03 5238
   Revision: AB001001    Serial number: VWZ6Z7H5341115
   Coding: 00000440000000800000
   Shop #: WSC 05314 123 12345
   VCID: 377D41BA868CAEFA51-8062

3 Faults Found:
00856 - Radio Antenna
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 5
                    Fault Frequency: 5
                    Reset counter: 112
                    Mileage: 279072 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:59:36

00821 - Antenna 2 for Radio (R93)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 5
                    Fault Frequency: 7
                    Reset counter: 112
                    Mileage: 279072 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:59:49

01299 - Diagnostic Interface for Data Bus (J533)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 108
                    Mileage: 279079 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 18:47:09


-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels: 1K0-959-701-MAX1.lbl
   Part No: 1T0 959 701 A
   Component: Tuersteuergeraet 09 0139
   Coding: 0000016
   Shop #: WSC 06402 785 00200
   VCID: 35614BB25C805CEA43-8060

1 Fault Found:
00928 - Locking Module for Central Locking; Front Driver Side (F220)
            008 - Implausible Signal

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb
   Part No: 1K1 909 144 G
   Component: EPS_ZFLS Kl.13      1401
   Shop #: WSC 00000 000 00000
   VCID: 2F6D79DABEDC663A09-807A

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels: 1K0-959-433-MIN.clb
   Part No: 1K0 959 433 BL
   Component: 01 KSG              0301
   Coding: 99C000BC090005054C4F090000
   Shop #: WSC 00137 211 56823
   VCID: 7BF59D8A3A244A9AF5-802E

   Subsystem 1 - Component:   Sounder n.mounted

   Subsystem 2 - Component:       NGS n.mounted

   Subsystem 3 - Component:      IRUE n.mounted

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels: 1K0-959-702-MAX1.lbl
   Part No: 1T0 959 702 A
   Component: Tuersteuergeraet 09 0139
   Coding: 0000016
   Shop #: WSC 06402 785 00200
   VCID: 36634CBE418657F24A-8062

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506)       Labels: 1T0-035-680.clb
   Part No SW: 1T0 035 680 L    HW: 1T0 035 680 B
   Component: RNS-MID       H03 5238
   Revision: AB001001    Serial number: VWZ6Z7H5341115
   Coding: 00000440000000800000
   Shop #: WSC 05314 123 12345
   VCID: 377D41BA868CAEFA51-8062

3 Faults Found:
00856 - Radio Antenna
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 5
                    Fault Frequency: 5
                    Reset counter: 112
                    Mileage: 279072 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:59:36

00821 - Antenna 2 for Radio (R93)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 5
                    Fault Frequency: 7
                    Reset counter: 112
                    Mileage: 279072 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:59:49

01299 - Diagnostic Interface for Data Bus (J533)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 108
                    Mileage: 279079 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 18:47:09


-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels: 1K0-959-703-GEN1.lbl
   Part No: 1K0 959 703 B
   Component: Tuersteuergeraet 06 0216
   Coding: 0000016
   Shop #: WSC 06402 785 00200
   VCID: 2F6D79DABEDC663A09-807A

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels: 1K0-959-704-GEN1.lbl
   Part No: 1K0 959 704 B
   Component: Tuersteuergeraet 06 0216
   Coding: 0000016
   Shop #: WSC 06402 785 00200
   VCID: 306F7AA6A3E279C210-8064

No fault code found.

-------------------------------------------------------------------------------
Address 76: Park Assist        Labels: 1K0-919-283.lbl
   Part No: 5P0 919 283
   Component: 05 Einparkhilfe     0101
   Shop #: WSC 00000 000 00000
   VCID: 75E18BB21C001CEA83-8020

1 Fault Found:
01299 - Diagnostic Interface for Data Bus (J533)
            005 - No or Incorrect Basic Setting / Adaptation

-------------------------------------------------------------------------------
Address 7D: Aux. Heat        Labels: 1K0-963-235.lbl
   Part No SW: 1K0 963 235 E    HW: 1K0 963 235 E
   Component: PTC-Element         0404
   Revision: 00800000    Serial number:
   Shop #: WSC 00000 000 00000
   VCID: 2D5163D2B4D0142A3B-8078

1 Fault Found:
00361 - Heater Element for Auxiliary Heater (Z35)
            014 - Defective

End-------------------------(Elapsed Time: 01:57)--------------------------



[spido]

Fa update. Va ajuta doar ptr a nu descarca bateria. Ptr OPS e nevoie de inlocuire Can si modul Ops.

[unchiu]



Camera nu va merge fara OPS?

Modificat 26 August, 2022 de Bebeee
Fara quote la postul anterior!

[spido]

Daca ai camera Oem, codezi Rns-ul cu camera,restart si ar trebui sa mearga. Codeaza si Pdc-ul pe Can/instalation list,bifeaza adresa 76.

[unchiu]

Camera e chinezeasca, au fost facute codarile si pt camera low si pdc in gw list dar tot nu se schimba nimic cand trec in marsarier, nici macar ecran negru.

Modificat 26 August, 2022 de Bebeee
Fara quote la postul anterior!

[spido]

Rns low se codeaza pe Rns,dupa care restart. Suntem OT...insa.

[F l o r i n]

Alex, corecteaza/editeaza postul - Rear view camera low se codeaza, nu rns low

Modificat 26 August, 2022 de F l o r i n

[unchiu]

Precum am spus in postul anterior, am facut deja codarea si reset si nu e nici o schimbare. Eroarea de pe rns are vreo legatura cu versiunea can-ului?

[F l o r i n]



13 hours ago, unchiu said:



Camera nu va merge fara OPS?

Trebuie sa mearga si fara.



Camera chinezeasca ce insemna ? Camera fabricata in china, rgb....? Sau av cu modul?

Modificat 27 August, 2022 de F l o r i n

[unchiu]

Camera este AV cu modul

[F l o r i n]

Ok. Esti sigur ca functioneaza? Ai facut o proba cu un display,  etc...sa vezi ca ai semnal video in fata, la unitate, cand bagi in R?

Sunt destul de pretentioase aceste RNS uri, cand e vb de camera AV si modul...nu recomand acesta soluție.

Pune un link sau poze, sa vedem camera ce model este, modulul, etc

[unchiu]

Camera este model ieftin, incorporat in suportul de numar, nu stiu exact modelul, masina este a unui prieten din alt oras.

Modulul:

https://www.aliexpress.com/item/32808669954.html?spm=a2g0o.order_list.0.0.59451802iLJkuD



Dar, chiar daca ar fi problema cu camera, nu ar trebui sa apara ecran negru cand baga in R?





[spido]

Ba da,trebuia sa se faca negru la R.
