Golf 6 - CAN Gateweay Incorrectly Coded

[tuchbr]

Buna ziua,

am nevoie de ajutor in a depista o problema.

Descriu prima data ce am facut:

am demontat modulul de climatronic de pe masina, dupa ce l-am remontat a aparut eroarea Airbags Service, pentru ca am uitat sa reconectez LED-ul indicator Passanger airbag off.

Am imprumutat un Laptop pentru a sterge eroarea aparuta, ce am si reusit.

Problema este ca nu mai pot sa intru la Central Electr. de loc.

Am facut o scanare pe module si la unele module apar erori ciudate.

Saturday,29,December,2012,18:59:35:37412

VCDS Version: Release 11.11.0 (x64)

Data version: 20111111

--------------------------------------------------------------------------------

--------------------------------------------------------------------------------

Chassis Type: 1K0

Scan: 01 03 08 09 10 15 16 17 19 25 42 44 46 52 56 62 65 72

VIN: WVWZZZ1KZ9P

01-Engine -- Status: OK 0000

03-ABS Brakes -- Status: OK 0000

04-Steering Angle -- Status: OK 0000

08-Auto HVAC -- Status: OK 0000

09-Cent. Elect. -- Status: Malfunction 0010

10-Park/Steer Assist -- Status: OK 0000

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: Malfunction 0010

17-Instruments -- Status: OK 0000

19-CAN Gateway -- Status: Malfunction 0010

25-Immobilizer -- Status: OK 0000

42-Door Elect, Driver -- Status: Malfunction 0010

44-Steering Assist -- Status: Malfunction 0010

46-Central Conv. -- Status: OK 0000

52-Door Elect, Pass. -- Status: OK 0000

56-Radio -- Status: Malfunction 0010

62-Door, Rear Left -- Status: OK 0000

65-Tire Pressure -- Status: Not registered 0011

72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------

Address 01: Engine (CBD) Labels: 03L-906-022-CBA.clb

Part No SW: 03L 906 022 MC HW: 03L 907 309

Component: R4 2,0L EDC G000SG 3593

Revision: 13H01--- Serial number:

Coding: 0000071

Shop #: WSC 10133 599 181496

VCID: 72E1AB6C6DB43EE

No fault code found.

Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------

Address 03: ABS Brakes (-----) Labels: 1K0-907-379-60EC1F.clb

Part No SW: 1K0 907 379 AE HW: 1K0 907 379 AE

Component: ESP MK60EC1 H35 0104

Revision: 00H35001

Coding: 113B200D09220001881304E5901C00423500

Shop #: WSC 00028 028 00001

VCID: 75EB9070DCDA296

No fault code found.

-------------------------------------------------------------------------------

Address 08: Auto HVAC (J255) Labels: 5K0-907-044.clb

Part No SW: 5K0 907 044 AK HW: 5K0 907 044 AK

Component: Climatronic 130 0303

Revision: 00002001

Coding: 0000000000

Shop #: WSC 00000 000 00000

ASAM Dataset: EV_Climatronic A01001

ROD: EV_Climatronic_VW36.rod

VCID: 74EDAD74DFA030E

No fault code found.

-------------------------------------------------------------------------------

Address 09: Cent. Elect.

Cannot be reached

-------------------------------------------------------------------------------

Address 10: Park/Steer Assist (J791) Labels: 1T0-919-475.clb

Part No SW: 1T0 919 475 D HW: 1T0 919 475

Component: PARKHILFE PLA H07 0012

Revision: -------- Serial number: 45230823203153

Coding: 10000A

Shop #: WSC 00028 028 00001

VCID: 3C7D4554BF70B8E

No fault code found.

-------------------------------------------------------------------------------

Address 15: Airbags (J234) Labels: 5K0-959-655.clb

Part No SW: 5K0 959 655 HW: 5K0 959 655

Component: AirbagVW10 020 0507

Serial number: 003C2D03866A

Coding: 00003135

Shop #: WSC 00028 028 00011

ASAM Dataset: EV_AirbaVW10SMEVW360 A01003

VCID: F7F71A784ED6DB6

Subsystem 1 - Part No SW: 5K0 959 354 HW: 5K0 959 354

Component: S.Sens.Fahr.V U01 ----

Serial number: 4106463FZZZZZZZZZZZZ

Subsystem 2 - Part No SW: 5K0 959 354 HW: 5K0 959 354

Component: S.Sens.Beif.V U01 ----

Serial number: 2556133EZZZZZZZZZZZZ

Component: S.Sens.Fahr.H --- ----

Serial number: 1E230B5FZZZZZZZZZZZZ

Component: S.Sens.Beif.H --- ----

Serial number: 020D094EZZZZZZZZZZZZ

No fault code found.

-------------------------------------------------------------------------------

Address 16: Steering wheel Labels: 1K0-953-549-MY9.lbl

Part No SW: 1K0 953 549 CQ HW: 1K0 953 549 CQ

Component: J0527 853 0111

Coding: 0000034

Shop #: WSC 00028 028 00001

VCID: 830F7EA8C20E876

5 Faults Found:

00576 - Terminal 15

012 - Electrical Fault in Circuit - Intermittent

00883 - Ignition Switch (D) Terminal S

012 - Electrical Fault in Circuit - Intermittent

00884 - Ignition Switch (D) Terminal X

012 - Electrical Fault in Circuit - Intermittent

01744 - Ignition Switch Terminal P (D)

012 - Electrical Fault in Circuit - Intermittent

00885 - Ignition Switch (D) Terminal 50

012 - Electrical Fault in Circuit - Intermittent

-------------------------------------------------------------------------------

Address 17: Instruments (J285) Labels: 5K0-920-xxx-17.clb

Part No SW: 5K0 920 870 CX HW: 5K0 920 870 CX

Component: KOMBI H21 0030

Serial number: 00000000000000

Coding: 170F00

Shop #: WSC 21243 142 95265

ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04020

ROD: EV_Kombi_UDS_VDD_RM09_VW36.rod

VCID: 850B60B0043AB96

No fault code found.

-------------------------------------------------------------------------------

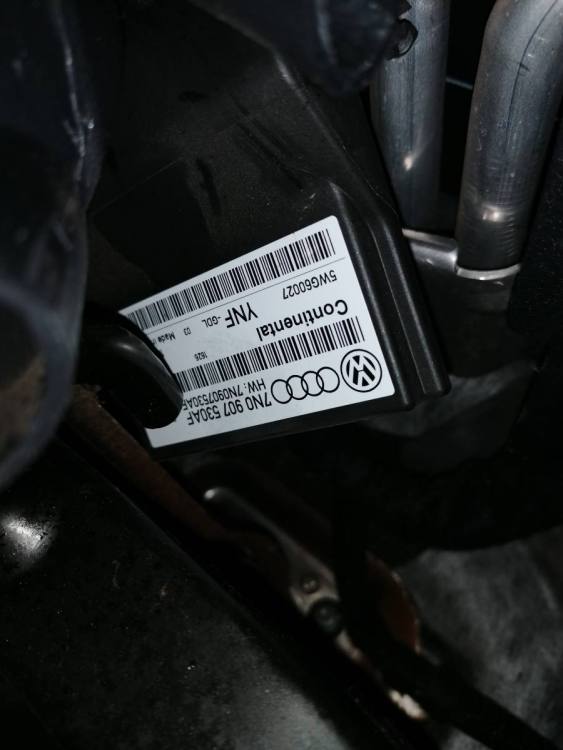

Address 19: CAN Gateway Labels: 1K0-907-530.lbl

Part No SW: 1K0 907 530 Q HW: 1K0 907 951

Component: J533 Gateway H07 5063

Revision: H07 01 Serial number: 020908F1000953

Coding: E9A07F060002020002

Shop #: WSC 00028 028 00001

VCID: 356B50705C5A696

1 Fault Found:

01044 - Control Module Incorrectly Coded

000 - -

Freeze Frame:

Fault Status: 01100000

Fault Priority: 1

Fault Frequency: 1

Mileage: 144357 km

Time Indication: 0

Date: 2021.14.19

Time: 18:48:52

-------------------------------------------------------------------------------

Address 25: Immobilizer (J334) Labels: 5K0-920-xxx-25.clb

Part No SW: 5K0 920 870 CX HW: 5K0 920 870 CX

Component: IMMO H21 0030

Serial number: 00000000000000

ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03002

ROD: EV_Immo_UDS_VDD_RM09_VW36.rod

VCID: 850B60B0043AB96

No fault code found.

-------------------------------------------------------------------------------

Address 42: Door Elect, Driver Labels: 1K0-959-701-MAX3.lbl

Part No SW: 1K0 959 701 AG HW: 1K0 959 701 AG

Component: Tuer-SG 008 2033

Coding: 0004278

Shop #: WSC 00028 028 00001

VCID: 73EFAE6812AE376

1 Fault Found:

01706 - Switch for Mirror-Adjust (E43)

008 - Implausible Signal - Intermittent

-------------------------------------------------------------------------------

Address 44: Steering Assist Labels: 1Kx-909-14x-44.clb

Part No: 1K0 909 144 C

Component: EPS_ZFLS Kl. 69 2301

Revision: 00H15000

Shop #: WSC 00000 000 00000

VCID: 2A51730C85E436E

2 Faults Found:

16353 - Control Module - Internal Malfunction

014 - Defective

Freeze Frame:

Fault Status: 01101110

Fault Priority: 6

Fault Frequency: 1

Reset counter: 184

Mileage: 142882 km

Time Indication: 0

Date: 2019.14.08

Time: 12:16:10

Freeze Frame:

Battery Volts: 12.7 V

DU

Temperature: 39.0°C

Error Code: 15491

Torque: -6.6 Nm

Torque: 0.412 Nm

RPM: -558 /min

16355 - Control Module - Watchdog Timer

014 - Defective - Intermittent

Freeze Frame:

Fault Status: 00101110

Fault Priority: 6

Fault Frequency: 1

Reset counter: 100

Mileage: 142882 km

Time Indication: 0

Date: 2019.14.08

Time: 12:16:10

Freeze Frame:

Voltage: 12.88 V

DU

Temperature: 39.0°C

Count: 0

Count: 0

Count: 60

Count: 0

-------------------------------------------------------------------------------

Address 46: Central Conv.

Cannot be reached

-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. Labels: 1K0-959-702-MAX3.lbl

Part No SW: 1K0 959 702 AG HW: 1K0 959 702 AG

Component: Tuer-SG 008 2033

Coding: 0004534

Shop #: WSC 00028 028 00001

VCID: 74EDAD7417A030E

No fault code found.

-------------------------------------------------------------------------------

Address 56: Radio (J0503) Labels: 5M0-035-1xx-56.clb

Part No SW: 3C8 035 195 HW: 3C8 035 195

Component: Radio RCD510 036 0130

Revision: 00000001 Serial number: VWZ1Z3H3348756

Coding: 0500040004

Shop #: WSC 00028 028 00001

VCID: E5CB4030EC7A596

1 Fault Found:

03138 - Input AUX IN

011 - Open Circuit

Freeze Frame:

Fault Status: 01101011

Fault Priority: 5

Fault Frequency: 1

Reset counter: 13

Mileage: 139479 km

Time Indication: 0

Date: 2016.14.00

Time: 12:03:44

-------------------------------------------------------------------------------

Address 62: Door, Rear Left Labels: 1K0-959-703-GEN3.lbl

Part No SW: 1K0 959 703 AL HW: 1K0 959 703 AL

Component: Tuer-SG 007 2009

Coding: 0000144

Shop #: WSC 00028 028 1012545

VCID: 7AF1834C35C446E

No fault code found.

-------------------------------------------------------------------------------

Address 65: Tire Pressure (J502) Labels: 1K0-937-08x-65.clb

Part No SW: 1K0 937 086 HW: 1K0 937 086

Component: RDK 020 0517

Coding: 000000

Shop #: WSC 131071 1023 2097151

VCID: EDDB3810348A616

2 Faults Found:

01325 - Control Module for Tire Pressure Monitoring (J502)

005 - No or Incorrect Basic Setting / Adaptation

Freeze Frame:

Fault Status: 01100101

Fault Priority: 3

Fault Frequency: 1

Mileage: 139479 km

Time Indication: 0

Date: 2016.14.00

Time: 11:56:26

01521 - Sensor for Tire Pressure

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 4

Fault Frequency: 1

Mileage: 139511 km

Time Indication: 0

Date: 2016.14.02

Time: 09:27:40

-------------------------------------------------------------------------------

Address 72: Door, Rear Right Labels: 1K0-959-704-GEN3.lbl

Part No SW: 1K0 959 704 AL HW: 1K0 959 704 AL

Component: Tuer-SG 007 2009

Coding: 0000144

Shop #: WSC 00028 028 1012545

VCID: 7BFF86483AFE7F6

No fault code found.

End ---------------------------------------------------------------------

cel mai tare ma deranjeaza :

CAN Gateweay 01044 - Control Module Incorrectly Coded

si

Address 09: Cent. Elect.

Cannot be reached

Presupun ca Address 09: Cent. Elect. Cannot be reached este cauzat de Address 19 CAN Control Module Incorrectly Coded

Va rog sa ma sfatuiti in a rezolva aceste probleme la masina (este destul de urgent, deoarece laptopul il am numai pana maine)

Va multumesc!

EDIT: am uitat sa mentionez ca vara am mai activat cateva functii pe masina (washerfluid warning,teerdrop,comming home, TPMS, etc, de cand am pus cauciucurile de iarna TPMS sta aprins) , atunci am reusit sa intru la 09 Cent. Elect.

Modificat 29 Decembrie, 2012 de tuchbr

[andrei_221]

ai defecte la switch-ul electric al contactului...

La servodirectie si TPM trebuie sa faci setariel de baza si pe urma vezi ce mai apare...

teoretic daca VCDS incearca sa scaneze 09-central electronics, dar nu o gaseste, nu ar trebui sa fie de vina codarea gateway-ului.

incearca sa refaci codarea gateway. Intri pe modul, mergi la Coding, Long Coding - si te apuci si bifezi dotarile pe care le are masina ta

Modificat 29 Decembrie, 2012 de andrei_221

[tuchbr]

La servodirectie si TPM - cum se fac setarile de baza ?

Codarea gateway cu Long Coding am incercat insa nu stiu ce dotari sa bifez.

Coding II pe CAN arata asa, este normal ?

Nu stiu de cand am aceste erori, abia azi am observat, nu am observat functionare defectioasa la masina.

Modificat 29 Decembrie, 2012 de tuchbr

[B-78-TDI]

trebuie sa ajungi la o reprezentanta VW, nu se pot face toate cu VCDS-ul.. Bafta!

[tuchbr]

Am sters erorile si am mai facut o scanare.

Au ramas urmatoarele:

09-Cent. Elect. -- Status: Malfunction 0010

19-CAN Gateway -- Status: Malfunction 0010

44-Steering Assist -- Status: Malfunction 0010

65-Tire Pressure -- Status: Not registered 0001

Address 09: Cent. Elect. (J519) Labels: 1K0-937-08x-09.clb

Part No SW: 1K0 937 086 HW: 1K0 937 086

Component: BCM PQ35 M 020 0358

Revision: 00020000

Coding: 40180A3A98251AC0C0080080550081E447010088725D8D60288000000000

Shop #: WSC 00028 028 00001

VCID: EDDB3810348A616

Subsystem 1 - Part No: 1K1 955 119 E Labels: 1KX-955-119.CLB

Component: Wischer 04090 21 0501

Coding: 009F95

1 Fault Found:

00907 - Intervention load Management

000 - -

Freeze Frame:

Fault Status: 01100000

Fault Priority: 6

Fault Frequency: 2

Reset counter: 20

Mileage: 144357 km

Time Indication: 0

Date: 2021.14.19

Time: 20:48:01

Freeze Frame:

Term 15 On

Voltage: 11.65 V

ON

ON

Term 50 Off

OFF

OFF

Address 19: CAN Gateway Labels: 1K0-907-530.lbl

Part No SW: 1K0 907 530 Q HW: 1K0 907 951

Component: J533 Gateway H07 5063

Revision: H07 01 Serial number: 020908F1000953

Coding: E9A07F060002020002

Shop #: WSC 00028 028 00001

VCID: 356B50705C5A696

1 Fault Found:

01044 - Control Module Incorrectly Coded

000 - -

Freeze Frame:

Fault Status: 01100000

Fault Priority: 1

Fault Frequency: 1

Mileage: 144357 km

Time Indication: 0

Date: 2021.14.19

Time: 20:42:14

Address 44: Steering Assist Labels: 1Kx-909-14x-44.clb

Part No: 1K0 909 144 C

Component: EPS_ZFLS Kl. 69 2301

Revision: 00H15000

Shop #: WSC 00000 000 00000

VCID: 2A51730C85E436E

2 Faults Found:

16353 - Control Module - Internal Malfunction

014 - Defective

Freeze Frame:

Fault Status: 01101110

Fault Priority: 6

Fault Frequency: 1

Reset counter: 184

Mileage: 142882 km

Time Indication: 0

Date: 2019.14.08

Time: 12:16:10

Freeze Frame:

Battery Volts: 12.7 V

DU

Temperature: 39.0°C

Error Code: 15491

Torque: -6.6 Nm

Torque: 0.412 Nm

RPM: -558 /min

16355 - Control Module - Watchdog Timer

014 - Defective - Intermittent

Freeze Frame:

Fault Status: 00101110

Fault Priority: 6

Fault Frequency: 1

Reset counter: 100

Mileage: 142882 km

Time Indication: 0

Date: 2019.14.08

Time: 12:16:10

Freeze Frame:

Voltage: 12.88 V

DU

Temperature: 39.0°C

Count: 0

Count: 0

Count: 60

Count: 0

Daca masina functioneaza fara probleme, trebuie neaparat rezolvate aceste erori ? (poate le-am avut de cand am cumparat masina, si nici nu stiam, avand in vedere ca in bord nu apare nici o eroare - daca nu aveam cablu VCDS, nici nu aflam de erorile astea)

Modificat 29 Decembrie, 2012 de tuchbr

[florin r.]

Eu cred ca tu ai gresit cand te-ai apucat sa codezi anumite chestii.

Daca te uiti la erori, sunt date la un anumit nr. de km, care de obicei sunt cei reali la care a survenit eroarea.

Asa poti sa-ti dai seama daca tu ai gresit sau a fost asa mai de mult.

Suna-l pe Florin sau pe Al Bundy si cere-le sa te ajute.

[tuchbr]

Am trimis PM lui Al Bundy, sper ca ma poate ajuta.

Pe masina am codat doar 09 centr. si 17 instr.

La 19 gateway nu am umblat deloc.

Ai dreptate cu nr. de Km/ masina era deja de ceva vreme la mine. Insa eroarea la gateway nu se stie cand a aparut prima data, pt. ca nu m-am uitat cand l-am sters.

[Rave]

Ce anume ai codat? Pentru ca unele chestii trebuie codate si in Can ca sa mearga. Altfel ori nu merg deloc ori merg dar nu 100% perfect si cu erori...

[tuchbr]

@Rave

am activat urmatoarele:

Breakpad warning

Washer fluid warning

Emergency Brake Flashing

Comfort Turn Signal Count la 5

Coming Home Lights

Tear Drop Wiping on Front Wiper

Tear Drop Wiping on Rear Wiper

Driver Seat Heater Memory

TPMS (fara buton SET,nu am buton)

Hill Hold Control

Doar la astea am umblat.

EDIT:

Eroarea CAN Gateway rezolvata cu ajutorul lui Al Bundy. :icon_thumleft:

Modificat 30 Decembrie, 2012 de tuchbr

[Boditza]

Spune si ce anume ai avut gresit pe acolo.. sa fie un fel de "ASA NU!!"

[tuchbr]

Am activat TPMS , fara sa-l bifez in Instalation list in CAN, la mine se pare ca asta a fost buba, dupa ce l-am bifat am mai facut 2 scanari si nu mai apare "Control Module Incorrectly Coded" :icon_thumleft:

Restul erorilor le mai am, se pare ca trebuie sa schimb "ignition switch"-ul. (daca nu gasesc un DIY , voi apela la reprezentata, cand buzunarul imi va permite, masina nu da nici un semn de boala, aceste erori apar doar la scanare)

[Rave]

E bine ca ai rezolvat!

[tuchbr]

Dupa schimbarea electronici de la contact, urmatoarele erori au ramas,



-------------------------------------------------------------------------------

5 Faults Found:
00576 - Terminal 15
            012 - Electrical Fault in Circuit - Intermittent
00883 - Ignition Switch (D) Terminal S
            012 - Electrical Fault in Circuit - Intermittent
00884 - Ignition Switch (D) Terminal X
            012 - Electrical Fault in Circuit - Intermittent
01744 - Ignition Switch Terminal P (D)
            012 - Electrical Fault in Circuit - Intermittent
00885 - Ignition Switch (D) Terminal 50
            012 - Electrical Fault in Circuit - Intermittent

-------------------------------------------------------------------------------



Cica erorile pot fi cauzate de Alarma AM Viper ???

[Al Bundy]

Daca era doar pe unul sau 2 contacte DA, dar asa NU. Alarma e si cu pornire motor?

[tuchbr]

Fara pornire motor



*edit: interesant e, ca masina porneste fara rateuri...

Modificat 9 Iunie, 2013 de tuchbr

[Al Bundy]

Atunci schimba partea electrica a contactului.

[tuchbr]

A fost schimbat , sau nu la chestia asta te referi ?



[Al Bundy]

Daca poza e de la masina ta, atunci nu a fost schimbat. Codul e cu B si mai nou cu C.

[tuchbr]

Poza e veche, demontez maine daca am timp , sa vad ce este acum pe masina...

[alexandru_]

Salutare, vad ca s-a mai discutat aici de eroarea 16353 - Control Module - Internal Malfunction, asadar postez si eu un log al unui G6 2009, 2.0 TDI, DSG cu aceste doua erori la adresa 44.



Chassis Type: 1K0

Scan: 01 02 03 08 09 15 16 17 19 25 42 44 46 52 56 62 72



VIN: WVWZZZ1KZA (sters de mine restul)



01-Engine -- Status: OK 0000

02-Auto Trans -- Status: OK 0000

03-ABS Brakes -- Status: OK 0000

04-Steering Angle -- Status: OK 0000

08-Auto HVAC -- Status: OK 0000

09-Cent. Elect. -- Status: OK 0000

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: OK 0000

17-Instruments -- Status: OK 0000

19-CAN Gateway -- Status: OK 0000

25-Immobilizer -- Status: OK 0000

42-Door Elect, Driver -- Status: OK 0000

44-Steering Assist -- Status: Malfunction 0010

46-Central Conv. -- Status: OK 0000

52-Door Elect, Pass. -- Status: OK 0000

56-Radio -- Status: OK 0000

62-Door, Rear Left -- Status: OK 0000

72-Door, Rear Right -- Status: OK 0000



-------------------------------------------------------------------------------

Address 01: Engine (CBD)       Labels: None

   Part No SW: 03L 906 022 LK    HW: 03L 906 022 G

   Component: R4 2,0L EDC G000AG  3142

   Revision: 13H02---    Serial number:

   Coding: 0000078

   Shop #: WSC 83968 427 535272

   VCID: 79F39C4030C24D6

No fault code found.

Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------

Address 02: Auto Trans        Labels: 02E-300-0xx.lbl

   Part No SW: 02E 300 052     HW: 02E 927 770 AJ

   Component: GSG DSG AG6     440 1919

   Revision: 04844002    Serial number: 00000905111400

   Coding: 0000020

   Shop #: WSC 00028 028 00001

   VCID: D1A384E048F2A56



No fault code found.



-------------------------------------------------------------------------------

Address 03: ABS Brakes (-----)       Labels: 1K0-907-379-60EC1F.clb

   Part No SW: 1K0 907 379 AP    HW: 1K0 907 379 AP

   Component: ESP MK60EC1   H45 0107

   Revision: 00H45001

   Coding: 113B200D092300FD880E04E6901F0042B100

   Shop #: WSC 00028 028 00001

   VCID: 800571A413189CE

No fault code found.

-------------------------------------------------------------------------------

Address 08: Auto HVAC (J301)       Labels: 3C8-907-336.clb

   Part No SW: 3C8 907 336 H    HW: 3C8 907 336 H

   Component: Climatic      H13 0203

   Revision: 00006001

   Coding: 0000000000

   Shop #: WSC 00028 028 00318

   ASAM Dataset: EV_Climatic A01001

   ROD: EV_Climatic_VW36.rod

   VCID: 32616B6C65347EE

No fault code found.

-------------------------------------------------------------------------------

Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb

   Part No SW: 1K0 937 086 C    HW: 1K0 937 086 C

   Component: BCM PQ35  M   103 0537

   Revision: 00103 AC

   Coding: 40180A3A90251AC040000080100081E443010088524D8960648000200000

   Shop #: WSC 00028 028 00001

   VCID: 3065616463384CE

   Subsystem 1 - Part No: 1K1 955 119 E  Labels: 1KX-955-119.CLB

   Component: Wischer 03060  21  0501

   Coding: 009795

No fault code found.

-------------------------------------------------------------------------------

Address 15: Airbags (J234)       Labels: 5K0-959-655.clb

   Part No SW: 5K0 959 655     HW: 5K0 959 655

   Component: AirbagVW10    033 0604

   Serial number: 003C2D0BB55J

   Coding: 00003139

   Shop #: WSC 00028 790 00012

   ASAM Dataset: EV_AirbaVW10SMEVW360 A01009

   ROD: EV_AirbaVW10SMEVW360_VW36.rod

   VCID: F7F71A784ED6DB6

   Crash sensor for side airbag; driver side:

   Subsystem 1 - Part No SW: 5K0 959 354     HW: 5K0 959 354

   Component: S.Sens.Fahr.V  U01 ----

   Serial number: 05193448ZZZZZZZZZZZZ

   Crash sensor for side airbag; passenger side:

   Subsystem 2 - Part No SW: 5K0 959 354     HW: 5K0 959 354

   Component: S.Sens.Beif.V  U01 ----

   Serial number: 7D302148ZZZZZZZZZZZZ

   Crash sensor for side airbag; rear driver side:

   Component: S.Sens.Fahr.H  --- ----

   Serial number: 08412D3DZZZZZZZZZZZZ

   Crash sensor for side airbag; rear passenger side:

   Component: S.Sens.Beif.H  --- ----

   Serial number: 182E2F48ZZZZZZZZZZZZ

No fault code found.

-------------------------------------------------------------------------------

Address 16: Steering wheel        Labels: 1K0-953-549-MY9.lbl

   Part No SW: 1K0 953 549 CP    HW: 1K0 953 549 CP

   Component: J0527           053 0111

   Coding: 0001034

   Shop #: WSC 00028 028 00001

   VCID: 82017BACDD148EE

No fault code found.

-------------------------------------------------------------------------------

Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb

   Part No SW: 5K0 920 860 G    HW: 5K0 920 860 G

   Component: KOMBI         H06 0206

   Serial number: 00000000000000

   Coding: 170B00

   Shop #: WSC 00028 028 00318

   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04040

   ROD: EV_Kombi_UDS_VDD_RM09_VW36.rod

   VCID: 306561646B384CE

No fault code found.

-------------------------------------------------------------------------------

Address 19: CAN Gateway        Labels: 1K0-907-530.lbl

   Part No SW: 1K0 907 530 AA    HW: 1K0 907 951

   Component: J533  Gateway   H07 0081

   Revision:   H07 01    Serial number: 040609F2001019

   Coding: ED807F06000202000002

   Shop #: WSC 00028 028 00001

   VCID: 66C9C73C517CD2E

No fault code found.

-------------------------------------------------------------------------------

Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb

   Part No SW: 5K0 920 860 G    HW: 5K0 920 860 G

   Component: IMMO          H06 0206

   Serial number:

   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03004

   ROD: EV_Immo_UDS_VDD_RM09_VW36.rod

   VCID: 306561646B384CE

No fault code found.



-------------------------------------------------------------------------------

Address 42: Door Elect, Driver        Labels: 1K0-959-701-MIN3.lbl

   Part No SW: 5K0 959 701 D    HW: 5K0 959 701 D

   Component: Tuer-SG         009 2123

   Coding: 0000180

   Shop #: WSC 00028 028 00001

   VCID: 336F6E68522E776

No fault code found.

-------------------------------------------------------------------------------

Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb

   Part No: 1K0 909 144 H

   Component: EPS_ZFLS Kl. 70     2901

   Revision: 00H15000

   Shop #: WSC 00028 028 00001

   VCID: 2F676218BE06536



2 Faults Found:

16353 - Control Module - Internal Malfunction

            014 - Defective

             Freeze Frame:

                    Fault Status: 01101110

                    Fault Priority: 6

                    Fault Frequency: 1

                    Reset counter: 143

                    Mileage: 0 km

                    Time Indication: 0



             Freeze Frame:

                    Battery Volts: 0.0 V

                        PD

                    Temperature: -70.0°C

                    Error Code: 0

                    Torque: 0.0 Nm

                    Torque: 0.000 Nm

                    RPM: 0 /min



16355 - Control Module - Watchdog Timer

            014 - Defective - Intermittent

             Freeze Frame:

                    Fault Status: 00101110

                    Fault Priority: 6

                    Fault Frequency: 1

                    Mileage: 0 km

                    Time Indication: 0



             Freeze Frame:

                    Voltage: 0.00 V

                        PD

                    Temperature: -70.0°C

                    Count: 0

                    Count: 0

                    Count: 0

                    Count: 0





-------------------------------------------------------------------------------

Address 52: Door Elect, Pass.        Labels: 1K0-959-702-MIN3.lbl

   Part No SW: 5K0 959 702 D    HW: 5K0 959 702 D

   Component: Tuer-SG         009 2123

   Coding: 0000180

   Shop #: WSC 00028 028 00001

   VCID: 346D6D74572070E

No fault code found.

-------------------------------------------------------------------------------

Address 56: Radio (J503)       Labels: 5M0-035-1xx-56.clb

   Part No SW: 1K0 035 156 B    HW: 1K0 035 156 B

   Component: Radio         509 0521

   Revision: R0509004    Serial number: VWZ5Z1I0096995

   Coding: 0000020002

   Shop #: WSC 00028 790 00012

   VCID: 22419B2C3DD4EEE

No fault code found.

-------------------------------------------------------------------------------

Address 62: Door, Rear Left        Labels: 1K0-959-703-GEN3.lbl

   Part No SW: 5K0 959 703 C    HW: 5K0 959 703 C

   Component: Tuer-SG         007 2101

   Coding: 0000144

   Shop #: WSC 00028 028 1012545

   VCID: 346D6D74572070E

No fault code found.

-------------------------------------------------------------------------------

Address 72: Door, Rear Right        Labels: 1K0-959-704-GEN3.lbl

   Part No SW: 5K0 959 704 C    HW: 5K0 959 704 C

   Component: Tuer-SG         007 2101

   Coding: 0000144

   Shop #: WSC 00028 028 1012545

   VCID: 356B50705C5A696

No fault code found.

End   ---------------------------------------------------------------------



Masina merge normal, niciun martor aprins in bord, dar totusi la scanare apar aceste 2 erori. Am incercat sa le sterg, desigur ca au oparut imediat...



Din pacate nici pe google nu am gasit prea multe, desi mai sunt utilizatori de G6/Jetta care au aceata problema cu aceleasi simpotome, si anume ca masina functioneaza corect.



E vorba de un defect hardware sau  ar trebui resoftata caseta, sau ceva de genul.



O zi buna,

Alex.

[tuchbr]

Din cate am inteles aceasta eroare apare la masinile care au parcare automata, si inregistreaza eroarea daca in timpul parcarii intervine o eroare. (daca nu e asa imi cer scuze... nu sunt 100% sigur)

La mine asa s-a intamplat, in timp ce demonstram sistemul de parcare automat la un prieten, masina din fata a dat cu spatele si spatiul s-a facut mai mic... a aparut pe afisaj "System Error...bla bla bla"

Eu am reusit sa sterg cu "erase DTC" ... (sau cum se numeste...nu am VCDS momentan) din VCDS, si nu mai apare.

[alexandru_]

Aceasta masina nu are parcare automata, nici senzori de parcare macar...



Si nici nu a mers cu "erase all DTC" :( Am intrat si separat pe adresa 44 si am sters de acolo, acelasi rezultat.. apare la loc imediat eroarea.

[F l o r i n]

sigur ca da - trebuie verificat si vazut de ce este incodat corect. Se reface codarea si va disparea eroarea.

[tuchbr]

El are alta eroare la modulul 44-Steering Assist -- Status: Malfunction 0010

[F l o r i n]

Am vazut.... nu-i de bine.



Acum, am raspuns de o codare gresita pe CAN... dar cred ca am/s-au ametit postarile
