Scanarea cu VCDS - coduri de eroare

[csm_1]

Mda, mult mai scump, nu oricine isi permite.

[die]

salut, ma poate ajuta si pe cine cineva cu explicatia erorilor din urmatorul log? Surprinzator, masina merge bine, singurele probleme reala sunt la inchiderea centralizata, motoras stergator spate si la climatronic.

Saturday,06,August,2016,16:04:49:62939
VCDS -- Windows Based VAG/VAS Emulator
VCDS Version: 12.12.0.0
Data version: 20130910

VIN: WVWZZZ1JZ3W618254   License Plate:
Mileage: 205210km-127511mi   Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 1J (1J - VW Golf/Bora IV (1998 > 2006))
Scan: 01 02 03 08 15 16 17 19 22 29 35 36 37 39 46 47 55 56 57 75
          76

VIN: WVWZZZ1JZ3W618254   Mileage: 205210km/127511miles
-------------------------------------------------------------------------------
Address 01: Engine        Labels: 038-906-019-AXR.lbl
   Part No: 038 906 019 AT
   Component: 1,9l R4 EDC G000SG  1575
   Coding: 00002
   Shop #: WSC 01266
   VCID: 69D95B2F138C395623D-4A3A
   WVWZZZ1JZ3W618254     VWZ7Z0C7548376

3 Faults Found:
19557 - Motor for Intake Manifold Flap (V157)
            P3101 - 35-10 - Open or Short to Ground - Intermittent
18080 - Coolant Fan Control 1
            P1672 - 35-10 - Open or Short to Ground - Intermittent
17978 - Engine Start Blocked by Immobilizer
            P1570 - 35-10 -  - Intermittent
Readiness: 0 0 X X X

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1C0-907-37x-ESP-F.lbl
   Part No: 1C0 907 379 M
   Component: ESP FRONT MK60      0102
   Coding: 0019458
   Shop #: WSC 01266 785 00200
   VCID: 3467FA5B54CEB4BE40B-5000

1 Fault Found:
00003 - Control Module
            014 - Defective - Intermittent

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 3Bx-907-044.lbl
   Part No: 3B1 907 044 C
   Component: CLIMATRONIC     C 2.0.0
   Coding: 11000
   Shop #: WSC 01266
   VCID: 2149030FAB3C3116BBD-5000

2 Faults Found:
00792 - A/C Pressure Switch (F129)
            35-00 - -
01272 - Positioning Motor for Central Flap (V70)
            37-10 - Faulty - Intermittent

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 6Q0-909-605-VW5.lbl
   Part No: 1C0 909 605 F
   Component: 02 AIRBAG VW61 0101 0003
   Coding: 12338
   Shop #: WSC 01266
   VCID: 275D1D17C518CF26F59-5000

1 Fault Found:
00532 - Supply Voltage B+
            07-10 - Signal too Low - Intermittent

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1J0-907-487-A.lbl
   Part No: 1J0 907 487 B
   Component: Lenkradelektronik   0002
   Coding: 00008
   Shop #: WSC 01266
   VCID: 306FF64BF0D6889E243-5000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1J0-920-xx5-17.lbl
   Part No: 1J5 920 846 C
   Component: KOMBI+WEGFAHRSP VDO V20
   Coding: 19112
   Shop #: WSC 00000
   VCID: 306FF64BF0D6889E243-5000
   WVWZZZ1JZ3W618254     VWZ7Z0C7548376

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels: 6N0-909-901-19.lbl
   Part No: 6N0 909 901
   Component: Gateway K<->CAN    0001
   Coding: 00006
   Shop #: WSC 01266
   VCID: F0EFB64BB056489EE43-5000

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation        Labels: 3B0-919-887.lbl
   Part No: 1J0 919 887 A
   Component: Navigation     BNO 0106
   Coding: 00000
   Shop #: WSC 01266
   VCID: 3663C05312B2A6AE7EF-4A3A

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels: 1C0-959-799.lbl
   Part No: 1C0 959 799 B
   Component: 1C Komfortgerát HLO 0003
   Coding: 00258
   Shop #: WSC 01271
   VCID: 3663C05312B2A6AE7EF-4A3A

   Subsystem 1 - Part No: 1C1959801A
   Component: 1A Tõrsteuer.FS KLO 0009

   Subsystem 2 - Part No: 1C1959802A
   Component: 1A Tõrsteuer.BF KLO 0202

   Subsystem 3 - Part No: 1C0959811A
   Component: 1A Tõrsteuer.HL KLO 0009

   Subsystem 4 - Part No: 1C0959812A
   Component: 1A Tõrsteuer.HR KLO 0009

4 Faults Found:
00928 - Locking Module for Central Locking; Front Driver Side (F220)
            27-10 - Implausible Signal - Intermittent
00929 - Locking Module for Central Locking; Front Passenger Side (F221)
            27-10 - Implausible Signal - Intermittent
00935 - Electric Window Motor; Rear Right (V27)
            35-10 - - - Intermittent
00931 - Locking Module for Central Locking; Rear Right (F223)
            27-00 - Implausible Signal

-------------------------------------------------------------------------------
Address 56: Radio        Labels: 3B0-035-186.lbl
   Part No: 1J0 035 152 G
   Component: Radio          BNO 0106
   Coding: 03405
   Shop #: WSC 01266
   VCID: 224B0C03AE3A2A0EA27-4A3A

No fault code found.

End   ---------------------------------------------------------------------


[sebava]

Un pic de ajutor as avea nevoie si eu.
Mi-am instalat pe masina din semnatura un cablu de AUX la un RCD 210 care nu cunoaste mp3. Dupa montaj a trebuit sa gasesc pe cineva sa-mi activeze AUX cu VCDS-ul. A bifat primele 3 casute din poza atasata (am luat de pe net poza) si acum am 2 erori:

Adresa 56: Radio (J0503)       Eticheta: ROJ\5M0-035-1xx-56.clb
   Număr VAG SW: 5M0 035 156     HW: 5M0 035 156
   Componenta: Radio         013 0023
   Revizie: R0013000    Număr serial: VWZAZ1G6604042
   Codare: 0700040002
   Atelier: WSC 10175 599 89769
   VCID: 66C8662691B60E0EC6-8032

2  coduri de defecte:
00857 - Magazia CD -R41-
            004 - lipsă semnal/nu comunică
             înprejurări cod:
                    Stare defect: 01100100
                    Priorit.defect: 5
                    Frecv. defect: 1
                    Resetare contor: 134
                    rulaj: 128832 km
                    Indicator de timp: 0
                    Data: 2000.00.00
                    timp: 12:28:24

03138 - Intrare AUX IN
            011 - întrerupt(ă)
             înprejurări cod:
                    Stare defect: 01101011
                    Priorit.defect: 5
                    Frecv. defect: 1
                    Resetare contor: 134
                    rulaj: 128833 km
                    Indicator de timp: 0
                    Data: 2000.00.00
                    timp: 13:03:06



De functionat, functioneaza, dar au aparut cele doua erori. Sa ma stresez sau sa le las in pace.

Multumesc pentru rabdare si eventualele raspunsuri.



[Al Bundy]

debifeaqza casuta 3.

[ulisica]

Cum aș putea rezolva eroarea de la becul stang al hayonului?

Menționez că becul se aprinde, deci nu este ars



WP_20160807_20_54_37_Pro.mp4

[Valenthin]

Salut ! Imi poate spune si mie cineva ce inseamna eroarea asta:

                Address 09: Cent. Elect.       Labels: 3C0-937-049-30-H.lbl

Control Module Part Number: 3C8 937 049 E    HW: 3C8 937 049 E

  Component and/or Version: Bordnetz-SG     H54 2602

           Software Coding: A5078E2700041000470A00000F00000000095D035C000120000000000000

            Work Shop Code: WSC 00066 123 12345

           Additional Info: 1K1955119E  Wischer 090908 021  0501

                      VCID: 336F078C52CBA986591-8066

1 Fault Found:



01519 - Bulb for Back-Up Lights; Right (M17)

            012 - Electrical Fault in Circuit - Intermittent

             Freeze Frame:

                    Fault Status: 00101100

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 216

                    Mileage: 102863 km

                    Time Indication: 0



             Freeze Frame:

                        ON

                    Voltage: 13.85 V

                        ON

                        ON

                        OFF

                        OFF

                        ON



MULTUMESC !

[Al Bundy]

Ca nu-ti merge becul de mers inapoi,

[marius_damyan]

Salutare tuturor,

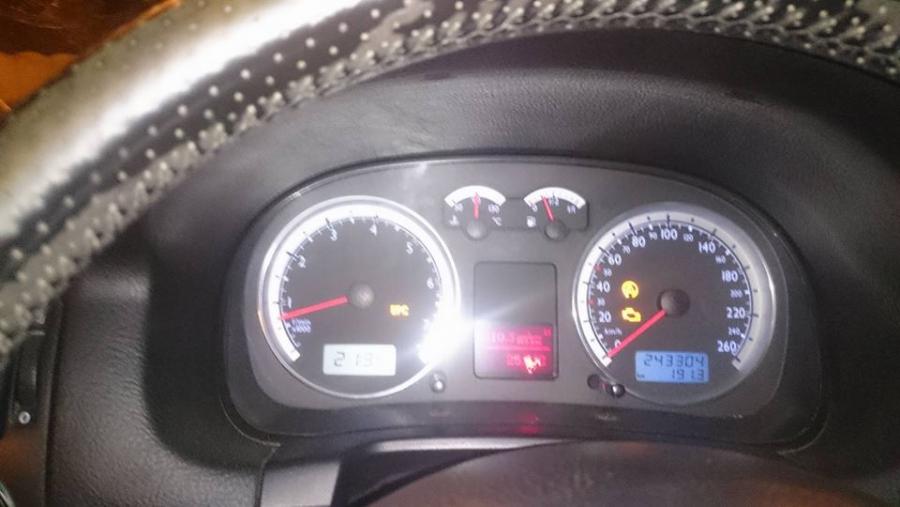

Dupa ce am fost intampinat in bord de martorii aprinsi din imaginea de mai jos ( exceptand check engine care e mereu prezent) am realizat o scanare cu diagnoza si am urmatoarele erori :

-------------------------------------------------------------------------------
10 Faults Found:
17439 - Intake Manifold Tuning Valve (N316)
P1031 - 35-00 - Setpoint Not Reached
17477 - NOx Sensor (G295) Heater Control
P1069 - 35-00 - Short to Ground
17947 - Clutch Pedal Switch (F36)
P1539 - 35-00 - Implausible Signal
16395 - Bank 1: Camshaft A (Intake)
P0011 - 35-10 - Retard Setpoint not Reached (Over-Advanced) - Intermittent
17951 - Angle Sensor 1 for Throttle Actuator (G187)
P1543 - 35-10 - Signal too Small - Intermittent
17580 - Angle Sensor 2 for Throttle Actuator (G188) Signal too Low
P1172 - 35-10 - - Intermittent
17441 - Sensor for NOx (G295)
P1033 - 35-00 - Signal too Low
17976 - Throttle Actuator (J338)
P1568 - 35-10 - Mechanical Failure - Intermittent
17987 - Throttle Actuator (J338)
P1579 - 35-10 - Adaptation Not Started - Intermittent
17953 - Throttle Valve Controller
P1545 - 35-10 - Malfunction - Intermittent
Readiness: 1010 0001
------------------------------------------------------------------------------

Erorile noi aparute spre deosebire de ultima diagnoza sunt cele legate de Throttle Actuator. A mai intampinat cineva aceasta problema ? Stie cineva de la ce ar putea fi ? Multumesc !

[Al Bundy]

Sterge-le si vezi care mai apar.

[marius_damyan]

Le-am sters si au reaparut dupa ~5km cand mi-a taiat si acceleratia, masina mergand doar cu o viteza de maxim 10km/h. Dupa ce a stat motorul oprit apoi aproximativ vreo 30 de minute, masina a pornit si a mers normal fara niciun martor aprins. Apoi cand am prins mai mult curaj si m-am apropiat de casa, am turat motorul  pana in 5000 rpm, iar martorul de ESP s-a reaprins.

[Al Bundy]

Si au aparut toate 10 ?



[marius_damyan]

Da, primele sunt oricum mostenite de mult timp.

[SpeedyCT]

Salut tuturor. dupa 1 saptamana in care am incercat de unul singur si fara rezultat m-am hotarat sa va deranjez cu o cerere . La un Passat b5 1.8 20 v (non turbo) mi-a crapat ECU. Dupa 2 zile, inainte sa primesc noul ECU , am gazit masina cu bateria moarta. Am gasit firul general de + pus in scurt cu blocul motor. Am schimbat bateria si ECU, Am facut sincronizarea noului ECU cu imobilizatorul dar masina nu vrea deloc sa porneasca. Postez erorile, multe dealtfel, poate ma puteti ghida voi cei cu mai multa experienta.
Pentru eroarea - 17978 - Engine Start Blocked by Immobilizer - becul galben de la immo nu clipeste ci se stinge dupa 2 secunde cum ar fi normal
Pentru eroarea - 17967 - Throttle Body (J338) - am facut adaptarea clapetei cu succes fara eroare
Pentru eraorea - 01120 - Camshaft Adjustment 1 04-10 - Mechanical Malfunction - Intermittent - am schimbat senzorul de pe axa cu came dar primesc aceeasi eroare

VCDS Version: Release 15.7.0 Running on Windows 7 x64
Data version: 20150820

Thursday,11,August,2016,16:10:30:04550

Chassis Type: 3B - VW Passat B5 (1997 > 2005)
Scan: 01 02 03 08 15 16 17 19 35 36 37 46 47 55 56 57 58 75 76 77


Mileage: 341070km-211931miles
-------------------------------------------------------------------------------
Address 01: Engine Labels: 058-907-55x-AEB2.lbl
Part No: 8D0 907 558 S
Component: 1,8L R4/5V MOTR HS D01
Coding: 04001
Shop #: WSC 05314
VCID: 419152BF81893A3A50EE1B9-4B00

8 Faults Found:
16500 - Engine Coolant Temp. Sensor (G62)
P0116 - 35-10 - Implausible Signal - Intermittent
17978 - Engine Start Blocked by Immobilizer
P1570 - 35-10 - - Intermittent
17953 - Throttle Valve Controller
P1545 - 35-10 - Malfunction - Intermittent
17967 - Throttle Body (J338)
P1559 - 35-10 - Fault in basic settings - Intermittent
01120 - Camshaft Adjustment 1
04-10 - Mechanical Malfunction - Intermittent
17916 - Idle Control Sys
P1508 - 35-10 - Upper Regulation Limit Reached - Intermittent
16496 - Intake Air Temp. Sensor (G42)
P0112 - 35-10 - Signal too Low - Intermittent
17924 - Intake Manifold Valve (N156)
P1516 - 35-10 - Open Circuit - Intermittent
Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 8E0-614-111-ABS.lbl
Part No: 8E0 614 111
Component: ABS 5.3 FRONT D11
Shop #: BB 24303
VCID: 5BAD80D7032570EA2AF2391-5140

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: 1J1-907-044.lbl
Part No: 1J1 907 044
Component: CLIMATRONIC S 6.0
Coding: 02000
Shop #: WSC 05319
VCID: 64DFBB2B3E5B4F129B889A5-25A6

1 Fault Found:
01206 - Signal for Duration of Ignition Off Time
35-00 - -

-------------------------------------------------------------------------------
Address 15: Airbags Labels: 1J0-909-60x-VW3.lbl
Part No: 8L0 959 655 A
Component: Airbag VW 3-S 0304
Coding: 00065
Shop #: WSC 05311
VCID: 3C6F234BE66B57D20338425-5140

2 Faults Found:
00532 - Supply Voltage B+
07-10 - Signal too Low - Intermittent
00595 - Crash Data Stored
35-00 - -

-------------------------------------------------------------------------------
Address 17: Instruments Labels: 3B0-919-xxx-17.lbl
Part No: 3B0 919 880 A
Component: B5-KOMBIINSTR. VDO V11
Coding: 00142
Shop #: WSC 00222
VCID: 2941EA1F19F9D27A68FE139-515E

Subsystem 1 - Part No: IMMO
Component: IDENTNR: VWZ7Z0V0091915
IMMO-IDENTNR: VWZ7Z0V0091915

4 Faults Found:
00667 - Ambient Temperature Signal
30-10 - Open or Short to Plus - Intermittent
00771 - Fuel Level Sensor (G)
30-10 - Open or Short to Plus - Intermittent
01176 - Key
07-00 - Signal too Low
65535 - Internal Control Module Memory Error
00-00 - -

-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: 3B0-959-79x-46.lbl
Part No: 3B0 959 798 G
Component: Zentral-SG Komfort V43
Coding: 00257
Shop #: WSC 05311
VCID: 3B6D2057E36550EA0A32591-4B00

7 Faults Found:
01329 - Convenience System Data Bus in Emergency Mode
35-10 - - - Intermittent
00930 - Locking Module for Central Locking; Rear Left (F222)
27-00 - Implausible Signal
00931 - Locking Module for Central Locking; Rear Right (F223)
27-00 - Implausible Signal
01330 - Central Control Module for Central Convenience (J393)
37-00 - Faulty
00928 - Locking Module for Central Locking; Front Driver Side (F220)
27-00 - Implausible Signal
00943 - Heated Exterior Mirror; Driver Side (Z4)
35-10 - - - Intermittent
00944 - Heated Exterior Mirror; Passenger Side (Z5)

[manupri]

Ma ajuta cineva is pe mine?

mersi



12691 - Intake Manifold Runner Control
               P3193 - 002 - Open Stop outside of Valid Range

000768 - Random/Multiple Cylinder Misfire Detected
               P0300 - 001 -

000772 - Cylinder 4
               P0304 - 001 - Misfire Detected

[spido]

Fa setarile de baza la clapeta.

[Al Bundy]

Schimba bobina de pe 4.

[Dolfin]

Golf 4, ALH, cum se rezolva?



Citat:

Mileage: 353980km
-------------------------------------------------------------------------------
Address 01: Engine
   Part No: 038 906 012 M
   Component:  1,9l R4 EDC G000SG  2813
   1 Fault Found
17978 - Engine Start Blocked by Immobilizer
            P1570 - 35-10 -  - Intermittent

-------------------------------------------------------------------------------
Address 17: Instruments
   Part No: 1J0 920 845 B
   Component: A4-KOMBIINSTR. VDO V09
      Subsystem 1 - Part No: IMMO
   Component: IDENTNR: VWZ7Z0Y3161336
   IMMO-IDENTNR: VWZ7Z0Y3161336

1 Fault Found
01176 - Key
            07-10 - Signal too Low - Intermittent

Modificat 13 August, 2016 de Dolfin

[spido]

Daca au aparut concomitent-posibil inel contact cu probleme.Schimba eventual bateria cheii si vezi daca mai apare signal low..



[Dolfin]

Cheia nu are baterie.

Inelul acesta se schimba?

[Dolfin]

Inelul este in partea de contact?

[spido]

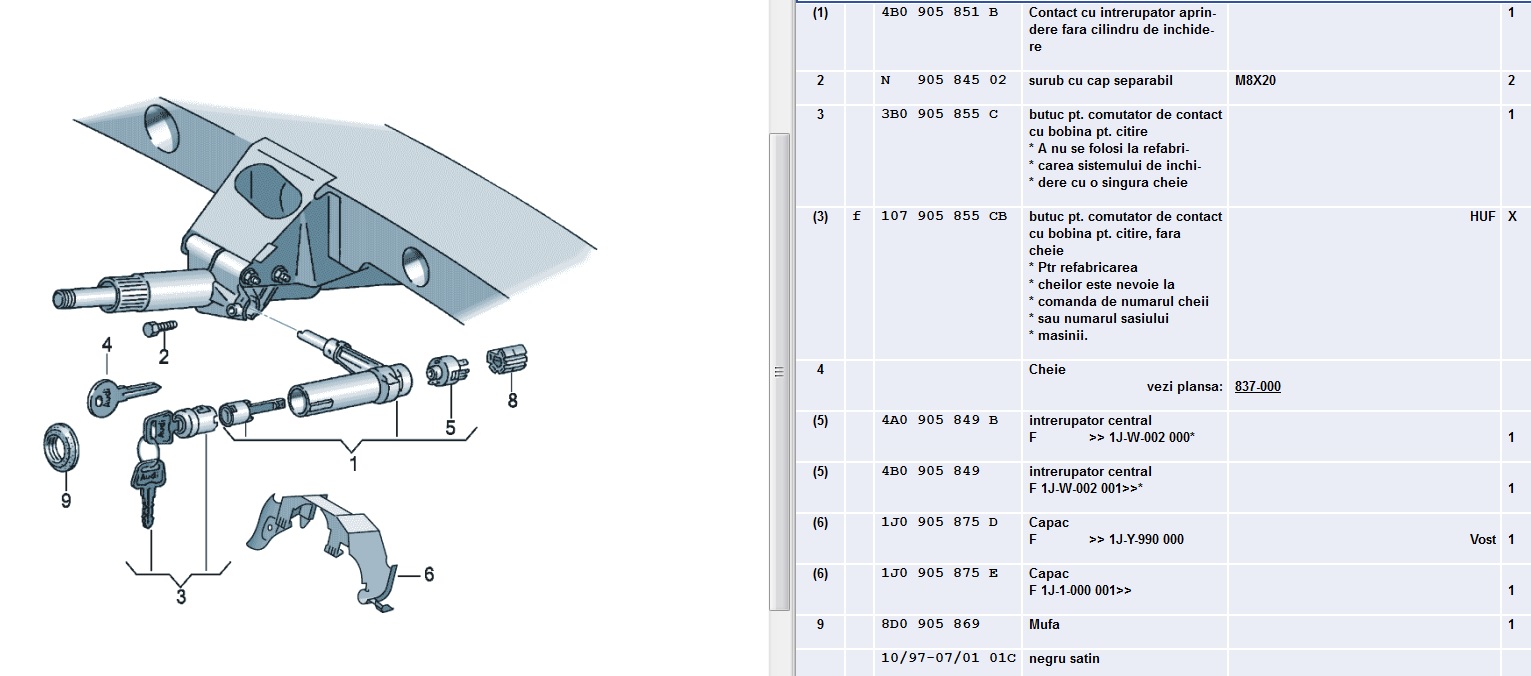

La pozitia 3 bobina de citire.Trebuie verificat conectorul ei si cablajul pina in ceasuri



[Al Bundy]

REZOLVARE: se refac lipiturile de la mufa din ceasuri unde ajung firele de la bobine cititoare, in special pinii 1 si 17.

[Dolfin]

On ‎14‎.‎08‎.‎2016 at 14:37, spido a scris:

La pozitia 3 bobina de citire.Trebuie verificat conectorul ei si cablajul pina in ceasuri





On ‎14‎.‎08‎.‎2016 at 19:54, Al Bundy a scris:

REZOLVARE: se refac lipiturile de la mufa din ceasuri unde ajung firele de la bobine cititoare, in special pinii 1 si 17.

Multumesc. Transmit informatia.

[andreim08]

Salutare! Am gasit mai multe erori, imi poate spune cineva ce inseamna? Multumesc.

Address 02: Auto Trans (J743)       Labels: 0D9-927-770.clb
   Part No SW: 0D9 300 040 A    HW: 02E 927 770 AN
   Component: DQ250-6F MQB  H52 3613
   Revision: 05652103    Serial number: TFK01211091028
   Coding: 0014
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TCMDQ250021 001001
   ROD: EV_TCMDQ250021_AU37.rod
   VCID: 1539D6FFA5816F2ADCB63F9-8040

1 Fault Found:
10763 - Starter Enable from Selector Lever Sensor System
          P1734 00 [002] - -
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:



Address 08: Auto HVAC (J255)       Labels: 5G0-907-044.clb
   Part No SW: 5G0 907 044 R    HW: 5G0 907 044 R
   Component: Climatronic   H02 0503
   Revision: 00001K06
   Coding: 00020104202100011105000000101000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_ACClimaBHBVW37X 002017
   ROD: EV_ACClimaBHBVW37X_SK37.rod
   VCID: 367B3173D8478432F57C80D-8062

1 Fault Found:
327940 - Motor for Left Temperature Flap
          B108C 71 [008] - Actuator stuck
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 5
                    Reset counter: 114
                    Mileage: 130778 km
                    Date: 2016.08.05
                    Time: 22:11:26



Address 17: Instruments (J285)       Labels: 5G0-920-XXX-17.clb
   Part No SW: 5G0 920 870 A    HW: 5G0 920 870 A
   Component: KOMBI         336 0555
   Coding: 07A401086F94000800886A03040000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_DashBoardVDDMQBAB 008026
   ROD: EV_DashBoardVDDMQBAB_AU37.rod
   VCID: 2745EC370FEDEDBA7EEA651-8072

2 Faults Found:
16777010 - Function Restricted due to Interrupted Communications
          U1110 00 [008] - -
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 7
                    Reset counter: 113
                    Mileage: 130693 km
                    Date: 2016.08.05
                    Time: 10:59:18

16777012 - Function Restricted due to Interrupted Communications
          U1110 00 [008] - -
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 7
                    Reset counter: 113
                    Mileage: 130693 km
                    Date: 2016.08.05
                    Time: 10:59:18


[liviu242006]

salutari care ma ajutati si pe mine?unde vad in vag (in ce canal)informatile trimise de senzori de la arborele cotit si cel de la axa cu came?
