Scanarea cu VCDS - erori aparute


zorg
 Share

Recommended Posts

Din cauza calaminei care se depune in camera de ardere, inclusiv pe bujie si filet, dupa cca 60.000km la cat se schimba setul de bujii, cand se desface bujiile exista riscul sa se deterioreze filetul, daca nu esti cu bagare de seama.

Bine ca nu a fost capota ridicata si nici o persoana prin preajma, ca exista riscul sa se lase cu victime, daca unghiul in care a fost aruncata bujia este periculos.

Apoi cand strangi bujia, aceasta tb stransa la cu cheia dinamometrica, asa si-ar fi dat seama daca sunt probleme cu filetul....

Că soluție mai ieftina de remediere, se poate da o gaura cu un filet mai mare in chiulasa si apoi tb cautata bujie pentru filetul respectiv, care sa aiba caracteristici apropriate de restul, altfel, este posibil sa nu iti mai functioneze rotund......Bafta!

Link to comment
Share on other sites

acidone77

Am inteles ca s-ar fi refiletat. Ar trebui sa ma ingrijoreze solutia asta? Ar fi mai safe varianta schimbarii capacului cu totul? Sau ce alte variante ar mai fi sa fie ok?

Link to comment
Share on other sites

adrian001

"Capacul" ala e chiulasa motorului ... nu cred ca ai idee cat costa una noua origianala (cam am vazut ca esti fan OE) :)) si e mai bine sa nu afli. Solutia cu refacerea filetlui e in regula daca e facuta bine. Totusi e destul de dificil de refacut fara sa cada particule metalice in cilindru cu chiulasa pe masina.



LE: Nu e problema ca nu ai stat langa ei, dar sunt curios care e explicatia lor pentru care a cedat filetul ? I-ai intrebat ?

Edited by adrian001
Link to comment
Share on other sites

F l o r i n
57 minutes ago, acidone77 said:

Am inteles ca s-ar fi refiletat. Ar trebui sa ma ingrijoreze solutia asta? Ar fi mai safe varianta schimbarii capacului cu totul? Sau ce alte variante ar mai fi sa fie ok?

Daca s-a infiletat ok si nu sunt alte probleme, nu

Link to comment
Share on other sites

acidone77

Normal ca am intrebat, si bineinteles ca nu am putut primit un raspuns in acest sens, pentru ca si pentru el a fost o premiera, fiind mecanic de suficient de multa vreme sa aibe o vasta experienta, a zis ca el n-a mai vazut sau avut niciodata o speta de genul. E totusi un baiat destul de priceput si apreciat in zona pentru VAG si BMW (doar astea 2 marci le face, si recomandarile sunt foarte bune pt el si service-ul lui). A ramas si el destul de preplex, mai ales ca lucrarea de inlocuit bujii la revizia trecuta, a facut-o el personal, si nu vreunul din mecanicii angajati (cel putin asa sustine).

Tind si sper sa cred ca lucrarea de remediere/infiletare s-a facut corect. Cel putin asa am fost asigurat.

Nu a fost necesar sa platesc nimic pentru remediere.

Am luat masina, merge bine. N-am sesizat diferente la pornire sau in mers, si am tras un pic de ea.

Daca era necesara schimbarea chiulasei, as fi schimbat-o, nu asta e problema, ca nu ma pot zgarci cu chestii de genul, sa ma lase iar masina in drum. Acum am avut noroc ca eram acasa, si m-am descurat repede, dar in alte conditii si circumstante...

Multumesc dragi colegi pentru sfaturi si ajutor!

Edited by acidone77
Link to comment
Share on other sites

adrian001

Mecanicii sunt si ei oameni si oricat de meserias ar fi mai dau si rateuri. Diferenta e ca un mecanic bun recunoaste cand greseste, ceea ce se intampla foarte rar in domeniu asta.  Deci ajungeai sa te coste un schimb de bujii 3000 de euro, sa tot ai clienti intelegatori asa ca tine :)

Link to comment
Share on other sites

Mihnea34

Salut!

Am un Passat B8 2015 2.0 CRLB mi se aprinde check ul la câteva sute de km după ce șterg erorile. Este achiziționat de curând , știu doar că a fost curățat dpf/egr ul. Masina își face regenerare destul de des și din ce am citit ar fi răcitorul înfundat. Am trecut pe la mecanic, dar din lipsă de timp a primit doar o regenerare forțată. Sunt programat peste o săptămână la service și nu știu dacă e o idee buna să circul cu ea până atunci.

Vă mulțumesc pentru orice sfat!



LE: masina merge ireproșabil. Pornește fără probleme. ..

Log-337687km-209828mi.txt

Edited by Mihnea34
Completare
Link to comment
Share on other sites

F l o r i n

Verifica ce se întâmplă cu clapete de pe evacuare. Verificat cablajul pana in ecu, daca este ok, inlocuita clapeta

Link to comment
Share on other sites

salutare.. La o Skoda Superb (2017) 2.0 Tdi (190Hp) de la munca am o eroare mai ciudata..

Nu are descriere eroarea chiar daca am rod file la zi (vcds fiind mai vechi si clona) si nici direct pe rosstech sau pe vas5051 nu apare la descriere.

Idem, la reprezentanta Skoda nu au putut sa imi spuna de la ce vine eroarea si ce ar avea masina, testarea aici fiind facuta cu diagnoza lor.

In afara de check engine aprins aleatoriu, masina nu are nici un simptom.



Multumesc.



Friday,27,August,2021,10:32:56:00001
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 19.6.0.5 (x64)
Data version: 20190529 DS308.0



VIN: TMBCJ9NP1K7017386   License Plate:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


                Address 01: Engine       Labels: 04L-907-309-V1.clb
Control Module Part Number: 04L 906 026 KA    HW: 04L 907 309 P
  Component and/or Version: R4 2.0l TDI   H25 6014
           Software Coding: 01250432036605083000
            Work Shop Code: WSC 33361 790 00138
              ASAM Dataset: EV_ECM20TDI01104L906026KA 005004 ()
                       ROD: N/A
                      VCID: 73E4E750DAB529D79B-8026
Unsupported vehicle.Please upgrade to a current Ross-Tech interface.

No ASAM data for: "EV_ECM20TDI01104L906026KA" ()
1 Fault Found:
20170 - ROD - Unknown Error Code
          - 00 [237]
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 4
                    Mileage: 82570 km
                    Date: 2021.07.31
                    Time: 20:54:31


Readiness: 1 1 0 0 0


Edited by ili2k2
Link to comment
Share on other sites

Quote

Unsupported vehicle.Please upgrade to a current Ross-Tech interface.



Păi și zice acolo că mașina nu e suportată.

Repetă diagnoza cu o interfață originală.





Link to comment
Share on other sites

Va salut!

Am si eu nevoie de un sfat pentru erorile de mai jos. Masina este Passat 2010, CBAB (WVWZZZ3CZAE101029).



Tuesday,31,August,2021,08:19:36:00009
VCDS Version: Release 20.4.2 (x64) Running on Windows 10 x64
www.Ross-Tech.com
                Address 01: Engine       Labels: 03L-906-022-CBA.clb
Control Module Part Number: 03L 906 022 QC    HW: 03L 907 309
  Component and/or Version: R4 2,0L EDC G200SG  6208
           Software Coding: 0000072
            Work Shop Code: WSC 00531 531 01234
                      VCID: 76E9BB1A01C7343639-8022
2 Faults Found:

009258 - Exhaust Gas Temperature Sensor; B1 S3
               P242A - 000 - Malfunction - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 299978 km
                    Time Indication: 0
                    Date: 2063.14.31
                    Time: 08:09:38

             Freeze Frame:
                    RPM: 897 /min
                    Speed: 8.0 km/h
                    Voltage: 13.98 V
                    Temperature: 45.9°C
                    Temperature: 120.0°C
                    Temperature: 930.0°C
                    Temperature: 36.0°C

009258 - Exhaust Gas Temperature Sensor; B1 S3
               P242A - 000 - Malfunction - MIL ON
             Freeze Frame:
                    Fault Status: 11100000
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 299978 km
                    Time Indication: 0
                    Date: 2063.14.31
                    Time: 08:09:42

             Freeze Frame:
                    RPM: 1219 /min
                    Speed: 10.0 km/h
                    Voltage: 14.14 V
                    Temperature: 45.9°C
                    Temperature: 120.0°C
                    Temperature: 930.0°C
                    Temperature: 42.0°C



Din cate am citit este vorba de senzorul 3, cel aflat intre DPF si catalizator.

Astazi am decuplat conectorul maro, se pastreaza erorile fara sa mai apara altele.

Inainte de a-l comanda, va rog sa-mi confirmati ca senzorul respectiv are codul 03L 906 088 AJ.

Am observat ca exista mai multi producatori (Siemens Vdo, Febi, Metzger, OE, etc). Preturile variaza intre 350 - 650 lei (OE). Sa merg pe OE sau sunt ok si celelalte?

Dupa inlocuire trebuie sa fac vreo adaptare sau alta operatiune cu VAG COM?

Multumesc.

Edited by Gelu
Link to comment
Share on other sites

cryst7ano

Verifica si cablajul sa te asiguri ca este in regula si daca ai posibilitatea sa probezi un senzor inainte de a comanda sa fi sigur ca de la el este problema si pt senzori recomand oe

Link to comment
Share on other sites

Cred ca prima data trebuie sa verifici cablajul, iar in ceea ce priveste codul pe care l-ai postat, are descrierea de mai jos.

Trebuie sa te asiguri care este senzorul care genereaza eroare.



- 03L906088AJ - traductor temp. gaze esapate (inainte filtru particule motor), mufa maro, cod piesa eliminat in 01.02.2017 si inlocuit cu

- 03L906088J - traductor temp. gaze esapate



Daca in discutie este senzorul dintre DPF si catalizator, codul este:

- 03L906262B - sonda lambda inaintea catalizatorului

Link to comment
Share on other sites

Problema sigur nu este la sonda lambda.
Am adus in discutie pozitionarea intre DPF si catalizator pentru ca asa am gasit pe forum.
Am observat ca eroarea apare cand motorul este rece. Daca opresc si pornesc atunci cand este motorul cald, nu imi apare eroarea. Asta ma face sa cred ca nu am norocul sa fie cablajul cu probleme, ci senzorul (cel cu mufa maro).
Multumesc pentru ajutor.

Edited by Gelu
Link to comment
Share on other sites

Ionut2021
On 17.06.2019 at 20:28, BTeo a scris:

Buna seara,

Ar trebui sa-mi fac griji pentru urmatoarele erori? Au aparut in autoscan dar nu era nimic cu rosu la modul.





Address 02: Auto Trans (J743)       Labels: 0D9-927-770.clb
   Part No SW: 0D9 300 041 A    HW: 02E 927 770 AQ
   Component: DQ250-6F MQB  H53 4801
   Revision: 05853104    Serial number: TFK01503292135
   Coding: 0014
   Shop #: WSC 05311 115 00091
   ASAM Dataset: EV_TCMDQ250021 001001
   ROD: EV_TCMDQ250021.rod
   VCID: 1675C7D6B804BF97008-8042

12 Faults Found:
21153 - Gear 1
          P072C 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

21154 - Gear 2
          P072D 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

21155 - Gear 3
          P072E 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

21156 - Gear 4
          P072F 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

21157 - Gear 5
          P073A 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

21158 - Gear 6
          P073B 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

21159 - Gear R
          P072B 00 [002] - Not Selectable
          Intermittent - Not Confirmed - Tested Since Memory Clear

10731 - Valve 3 in Transmission Part 1
          P174A 00 [002] - Electrical malfunction
          Intermittent - Not Confirmed - Tested Since Memory Clear

10732 - Valve 3 in Transmission Part 2
          P174E 00 [002] - Electrical malfunction
          Intermittent - Not Confirmed - Tested Since Memory Clear

10657 - RPM Signal from ECU
          P0726 00 [002] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear

21207 - Pressure Control Solenoid 3
          P0797 00 [002] - Stuck ON
          Intermittent - Not Confirmed - Tested Since Memory Clear

10906 - Cooling Oil Valve
          P179D 00 [002] - Electrical Malfunction
          Intermittent - Not Confirmed - Tested Since Memory Clear


Buna, cum ai rezolvat cu aceste erori? Am si au aceasta problema, numai ca la mine sunt si simptome: am unele smucituri care apar mai ales in treptele inferioare.

Caut o posibila rezolvare de ceva timp si nu am gasit.

Erorile apar dupa ce se incalzeste motorul, cutia de viteze.

Link to comment
Share on other sites

Salut, acele erori sunt de la testare cu motor pornit si/sau daca ai force UDS parca in VCDS. Deci nu sunt probleme.

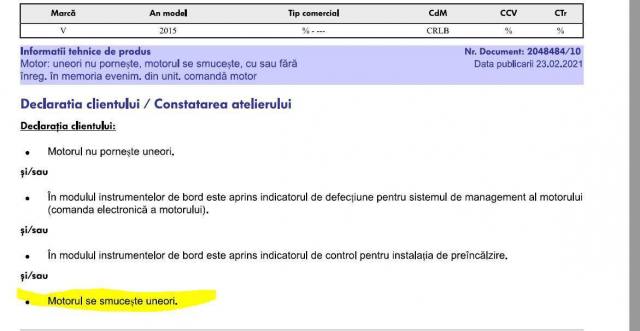

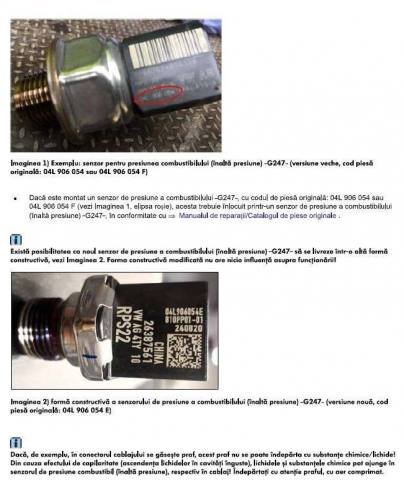

Legat de smucituri, este un buletin VW prin care poti schimba senzorul de inalta presiune cu ultima versiune (arata putin diferit dar e bun).

Eu am scapat.. piesa e vreo ~350 lei si se schimba repede.





Edited by BTeo
Link to comment
Share on other sites

Procatudor

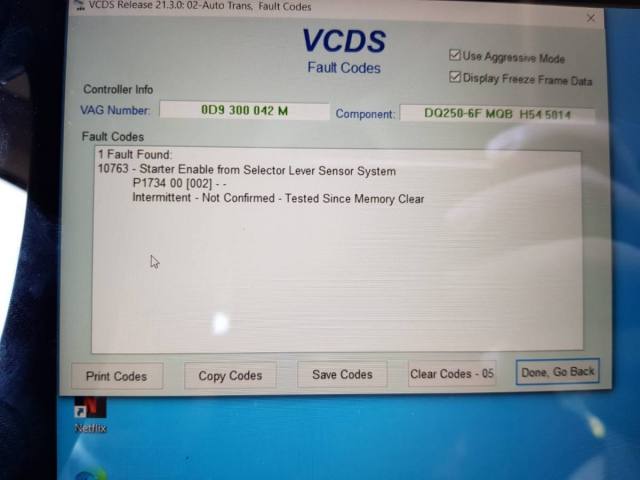

Cu aceasta eroare ma poate ajuta cineva ?? . Multumesc !!





509092957_WhatsAppImage2021-09-09at21_42_30.thumb.jpeg.8580f6e7101ad26f33bd8e919adaa0a3.jpeg

Edited by Procatudor
Link to comment
Share on other sites

F l o r i n

Ti-am raspuns la celalalt post identic. Trebuie kit reparatie selector.

Link to comment
Share on other sites

On 8/28/2021 at 8:07 AM, F l o r i n said:

Verifica ce se întâmplă cu clapete de pe evacuare. Verificat cablajul pana in ecu, daca este ok, inlocuita clapeta



Multumesc de info! Din pacate nu am ajuns la mecanic... Am insa ceva erori in plus din ce vad eu. Daca ma puteti ajuta cu o idee. Am de facut cca 2000 km in perioada urmatoare.



Log-WVWZ-338669km-210439mi10sept.txt

Link to comment
Share on other sites

Buna ziua , are cineva idee de ce nu pot sa fac adaptarile astea ? pana acum mergea , am schimbat tot chitul de pornire si nu mai merge sa fac adaptarile , am esp ul aprins si P taiat pe bord aprins

WhatsApp Image 2021-09-14 at 17.39.14 (4).jpeg

WhatsApp Image 2021-09-14 at 17.39.14 (3).jpeg

WhatsApp Image 2021-09-14 at 17.39.14 (2).jpeg

WhatsApp Image 2021-09-14 at 17.39.14 (1).jpeg

WhatsApp Image 2021-09-14 at 17.39.14.jpeg

Edited by ran20
Link to comment
Share on other sites

Buna seara, se poate un sfat pentru urmatoarele erori? Masina este un Audi A6 C7 2012 3.0TDI CDUC, care nu merge deloc ok acum.

Multumesc.


5188 - Diesel Particulate Filter (Bank 1)
          - 00 [237]
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 196220 km
                    Date: 2021.09.14
                    Time: 14:46:27

4794 - Mass Air Flow Sensor (G70)
          - 00 [237]
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 196030 km
                    Date: 2021.09.12
                    Time: 23:53:37

10624 - EGR System
          - 00 [237]
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 196101 km
                    Date: 2021.09.14
                    Time: 12:02:18

5189 - Particulate Trap Bank 1
          - 00 [109]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 196220 km
                    Date: 2021.09.14
                    Time: 14:46:27

Ca si prim pas ma gandesc ca trebuie schimbat senzorul G70 (o recomandare de producator va rog aici), apoi schimbat doar supapa egr (sau se schimba tot ansamblul?) si curatat racitorul si curatata si admisia. Dupa toate astea ar trebui sa isi faca singura regenerarea? Nu fortata cu vcds.

Link to comment
Share on other sites

On 9/2/2021 at 12:40 AM, Gelu said:

Va salut!

Am si eu nevoie de un sfat pentru erorile de mai jos. Masina este Passat 2010, CBAB (WVWZZZ3CZAE101029).
2 Faults Found:

009258 - Exhaust Gas Temperature Sensor; B1 S3
               P242A - 000 - Malfunction - Intermittent


009258 - Exhaust Gas Temperature Sensor; B1 S3
               P242A - 000 - Malfunction - MIL ON
 ........

Am rezolvat problema prin inlocuirea senzorului de temperatura aflat inaintea filtrului de particule.

Fiind senzorul cu care a plecat masina din fabrica (mai vechi de 2017) avea codul scris pe el 03L 906 088 AJ.

Multumesc pentru informatiile oferite.

Link to comment
Share on other sites

multumesc pt. raspuns

kitul de pornire de il am acum pe masina ( ECU) a fost pt cutie automata codat cu 0000078 iar eu l-am pus 72 cum era al meu (manual) , iar la Steering wheel era codat 0000103 iar eu am pus0000003, atat am facut la noul kit,i-am pus un alt KIT de pornire de cutie manuala (de proba ) si la acela merge sa fac adaptarile



Chassis Type: 3C (3C0)

Scan: 01 03 08 09 15 16 17 19 25 42 44 46 52 53 56 62 72




VIN: WVWZZZ3CZ7P069465 Mileage: 221990km-137938miles




01-Engine -- Status: Malfunction 0010

03-ABS Brakes -- Status: Malfunction 0010

04-Steering Angle -- Status: OK 0000

08-Auto HVAC -- Status: Malfunction 0010

09-Cent. Elect. -- Status: Malfunction 0010

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: OK 0000

17-Instruments -- Status: OK 0000

19-CAN Gateway -- Status: Malfunction 0010

25-Immobilizer -- Status: Malfunction 0010

42-Door Elect, Driver -- Status: Malfunction 0010

44-Steering Assist -- Status: Malfunction 0010

46-Central Conv. -- Status: Malfunction 0010

52-Door Elect, Pass. -- Status: Malfunction 0010

53-Parking Brake -- Status: OK 0000

56-Radio -- Status: Malfunction 0010

62-Door, Rear Left -- Status: Cannot be reached 1100

72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------

Address 01: Engine Labels: 03G-906-018-BKP.clb

Part No SW: 03G 906 018 CE HW: 03G 906 018 CE

Component: R4 2.0l PPD1.5 9384

Revision: --H35--- Serial number: VWZCZ000000000

Coding: 0000072

Shop #: WSC 80093 222 69422

VCID: 6ADB74AA457FEF14A6-803E




2 Faults Found:

001649 - Cylinder 1 Glow Plug Circuit (Q10)

P0671 - 006 - Electrical Fault

Freeze Frame:

Fault Status: 01010001

Fault Priority: 1

Fault Frequency: 2

Reset counter: 40

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.28

Time: 11:31:39




Freeze Frame:

RPM: 160 /min

Torque: 128.0 Nm

Speed: 0.0 km/h

0.00 %

Voltage: 12.32 V

Bin. Bits: 00110000

Temperature: 21.0°C




001650 - Cylinder 2 Glow Plug Circuit (Q11)

P0672 - 006 - Electrical Fault

Freeze Frame:

Fault Status: 01010001

Fault Priority: 1

Fault Frequency: 2

Reset counter: 40

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.28

Time: 11:31:39




Freeze Frame:

RPM: 160 /min

Torque: 128.0 Nm

Speed: 0.0 km/h

0.00 %

Voltage: 12.32 V

Bin. Bits: 00110000

Temperature: 21.0°C




Readiness: N/A




-------------------------------------------------------------------------------

Address 03: ABS Brakes Labels: 3C0-614-109-C4.clb

Part No SW: 3C0 614 109 D HW: 3C0 614 109 D

Component: J104 C4 440 V2 0003

Revision: --020--- Serial number: 00000775837326

Coding: 0000279

Shop #: WSC 80093 222 69422

VCID: 1F4D557ECEBDDABC01-804A




4 Faults Found:

01309 - Power Steering Control Module (J500)

008 - Implausible Signal

Freeze Frame:

Fault Status: 01101000

Fault Priority: 3

Fault Frequency: 10

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 18:34:32




Freeze Frame:

Speed: 0.0 km/h

Hex Value: 0x0000

Voltage: 12.25 V

Bin. Bits: 00010011

Count: 221




03201 - Adaptation Overboost

005 - No or Incorrect Basic Setting / Adaptation

Freeze Frame:

Fault Status: 01101000

Fault Priority: 3

Fault Frequency: 10

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 18:34:32




01423 - Lateral Acceleration Sensor (G200)

005 - No or Incorrect Basic Setting / Adaptation

Freeze Frame:

Fault Status: 01101000

Fault Priority: 3

Fault Frequency: 10

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 18:34:32




01279 - Longitudinal Acceleration Sensor (G251)

005 - No or Incorrect Basic Setting / Adaptation

Freeze Frame:

Fault Status: 01101000

Fault Priority: 3

Fault Frequency: 10

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 18:34:32







-------------------------------------------------------------------------------

Address 08: Auto HVAC Labels: 3C0-907-044.lbl

Part No SW: 3C0 907 044 BT HW: 3C0 907 044 BT

Component: ClimatronicPQ46 122 0707

Revision: 00122021 Serial number: 00000000000000

Shop #: WSC 00000 000 00000

VCID: 74E76AD217BB29E40C-8020




2 Faults Found:

00229 - Refrigerant Pressure

002 - Lower Limit Exceeded

Freeze Frame:

Fault Status: 01110010

Fault Priority: 3

Fault Frequency: 17

Reset counter: 91

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:57




01592 - Air Quality Sensor (G238)

014 - Defective - Intermittent

Freeze Frame:

Fault Status: 00111110

Fault Priority: 3

Fault Frequency: 27

Reset counter: 131

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:57







-------------------------------------------------------------------------------

Address 09: Cent. Elect. Labels:. 3C0-937-049-30-H.lbl

Part No SW: 3C0 937 049 AJ HW: 3C0 937 049 AJ

Component: Bordnetz-SG H54 2202

Revision: 00H54000 Serial number: 01000007342933

Coding: E1800F0700041A00470A00000F00000000085D435C000100000000000000

Shop #: WSC 80093 222 69422

VCID: 71E963C668A91CCCE7-8024




Subsystem 2 - Part No: 1K0 955 559 AF Labels: 1K0-955-559-AF.CLB

Component: RLS 160807 046 0204

Coding: 00208933

Shop #: WSC 80093




Subsystem 3 - Component: Fehler Lin-Slave 01




5 Faults Found:

01502 - Bulb for Rear Fog; Left (L46)

012 - Electrical Fault in Circuit

Freeze Frame:

Fault Status: 01101100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 91

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:38:00




Freeze Frame:

ON

Voltage: 13.20 V

ON

ON

OFF

OFF

OFF




01519 - Bulb for Back-Up Lights; Right (M17)

012 - Electrical Fault in Circuit

Freeze Frame:

Fault Status: 01101100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 91

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:38:00




Freeze Frame:

ON

Voltage: 13.15 V

ON

ON

OFF

OFF

OFF




02071 - Local Databus

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 91

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:00




Freeze Frame:

ON

Voltage: 13.45 V

ON

ON

OFF

OFF

OFF




01333 - Door Control Module; Rear Left (J388)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 23

Reset counter: 91

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:00




Freeze Frame:

ON

Voltage: 13.45 V

ON

ON

OFF

OFF

OFF




00153 - Windshield Wiper Motor; Driver Side (V216)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 91

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:00




Freeze Frame:

ON

Voltage: 13.45 V

ON

ON

OFF

OFF

OFF







-------------------------------------------------------------------------------

Address 15: Airbags Labels: 3C0-909-605.lbl

Part No SW: 3C0 909 605 M HW: 3C0 909 605 M

Component: 0C AIRBAG VW8 032 2522

Revision: 12032000 Serial number: 003B1PEBS9FV

Coding: 0012355

Shop #: WSC 05311 000 00000

VCID: 306FA6C2A32355C4A8-8064




Subsystem 1 - Serial number: 6332MSME1B6D3E74




Subsystem 2 - Serial number: 6342MSME1C0C4645




Subsystem 3 - Serial number: 6351HTS618LCS766




Subsystem 4 - Serial number: 6361HTS618LSGNS6




Subsystem 5 - Serial number: 00000000000000000




Subsystem 6 - Serial number: 00000000000000000




No fault code found.




-------------------------------------------------------------------------------

Address 16: Steering wheel Labels: 3C0-953-549-SW20.lbl

Part No SW: 3C0 953 549 J HW: 3C0 953 549 J

Component: Lenksäulenmodul 006 0010

Revision: 00006000 Serial number: 3C5953507BC

Coding: 0000003

Shop #: WSC 05311 000 00000

VCID: 3365A9CE52356EDCD5-8066




No fault code found.




-------------------------------------------------------------------------------

Address 17: Instruments Labels: 3C0-920-xxx-17.lbl

Part No SW: 3C0 920 871 E HW: 3C0 920 871 E

Component: KOMBIINSTRUMENT VD1 2416

Revision: V0002000 Serial number: 00000000000000

Coding: 0007105

Shop #: WSC 80093 222 69422

VCID: 2643409A91E70B7442-8072




No fault code found.




-------------------------------------------------------------------------------

Address 19: CAN Gateway Labels:. 3C0-907-530-V2.clb

Part No SW: 3C0 907 530 E HW: 3C0 907 951

Component: J533__Gateway H10 0080

Revision: H10 Serial number: 1200P077180080

Coding: F9807F060002021002

Shop #: WSC 05311 123 12345

VCID: 2345598EE2D5FE5C25-8076




1 Fault Found:

01333 - Door Control Module; Rear Left (J388)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 90

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:57







-------------------------------------------------------------------------------

Address 25: Immobilizer Labels: 3C0-959-433-25.clb

Part No SW: 3C0 959 433 M HW: 3C0 959 433 M

Component: IMMO 042 0383

Revision: 00042000 Serial number: VWZCZ000000000

Shop #: WSC 131071 1023 2097151

VCID: 3467AAD2573B69E4CC-8060




Subsystem 1 - Part No: 3C0 905 861 F

Component: ELV 026 0380

3C0905861F ELV 026 0380




1 Fault Found:

02823 - Requirements for Locking the Steering Column Lock not met

000 - -

Freeze Frame:

Fault Status: 01100000

Fault Priority: 7

Fault Frequency: 1

Reset counter: 90

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 22:06:12







-------------------------------------------------------------------------------

Address 42: Door Elect, Driver Labels:. 1K0-959-701-MIN3.clb

Part No SW: 1K0 959 701 P HW: 1K0 959 793 L

Component: J386 TUER-SG FT 1123

Revision: 12006001 Serial number: 00000044968621

Coding: 0000053

Shop #: WSC 05311 000 00000

VCID: 3B7581EE7A65A69C0D-806E




1 Fault Found:

00932 - Electric Window Motor; Drivers Side (V147)

005 - No or Incorrect Basic Setting / Adaptation - Intermittent

Freeze Frame:

Fault Status: 00100101

Fault Priority: 3

Fault Frequency: 1

Reset counter: 131

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:56







-------------------------------------------------------------------------------

Address 44: Steering Assist Labels: 5N1-909-144.clb

Part No SW: 5N1 909 144 G HW: 5N1 909 148 F

Component: J500__APA-BS KL.081 0401

Revision: 1AH02234 Serial number: 00081340002302

Coding: 0000258

Shop #: WSC 80093 222 69422

VCID: 366390DA41477BF4F2-8062




1 Fault Found:

02546 - Steering Limit Stop

005 - No or Incorrect Basic Setting / Adaptation - MIL ON

Freeze Frame:

Fault Status: 11100101

Fault Priority: 2

Fault Frequency: 1

Reset counter: 91

Time Indication: 0




Freeze Frame:

Term 15 On

RPM: 0 /min

Speed: 0.0 km/h

(no units): 4.0

Voltage: 12.00 V







-------------------------------------------------------------------------------

Address 46: Central Conv. Labels:. 3C0-959-433-46.clb

Part No SW: 3C0 959 433 M HW: 3C0 959 433 M

Component: KSG PQ46 ELV 042 0472

Revision: 00042000 Serial number: VWZCZ000000000

Coding: 19910A0801860E7600049515700853CE103800

Shop #: WSC 00028 028 00001

VCID: 3467AAD2573B69E4CC-8060




Subsystem 1 - Part No: 1K0 951 605 D

Component: LIN BACKUP HORN H07 9001




Subsystem 2 - Part No: 3C0 951 171 C

Component: Neigungssensor 004 0611




Subsystem 3 - Part No: 3C0 951 171 C

Component: Innenraumueberw.004 0611




4 Faults Found:

01333 - Door Control Module; Rear Left (J388)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 4

Fault Frequency: 1

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 19:18:32




01334 - Door Control Module; Rear Right (J389)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 4

Fault Frequency: 1

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 19:18:32




00931 - Locking Module for Central Locking; Rear Right (F223)

012 - Electrical Fault in Circuit

Freeze Frame:

Fault Status: 01101100

Fault Priority: 4

Fault Frequency: 1

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 20:30:57




00930 - Locking Module for Central Locking; Rear Left (F222)

012 - Electrical Fault in Circuit

Freeze Frame:

Fault Status: 01101100

Fault Priority: 4

Fault Frequency: 1

Reset counter: 91

Mileage: 221996 km

Time Indication: 0

Date: 2019.04.27

Time: 20:30:57







-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. Labels:. 1K0-959-702-MIN3.clb

Part No SW: 1K0 959 702 AC HW: 1K0 959 792 N

Component: J387 TUER-SG BT 1517

Revision: 72009005 Serial number: 00000514388628

Coding: 0000244

Shop #: WSC 05311 000 00000

VCID: 70EF66C263A315C4E8-8024




2 Faults Found:

00933 - Electric Window Motor; Passenger Side (V148)

005 - No or Incorrect Basic Setting / Adaptation - Intermittent

Freeze Frame:

Fault Status: 00100101

Fault Priority: 6

Fault Frequency: 1

Reset counter: 131

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:56




00121 - Outside Warning Light/Door exit Light Passenger Side

012 - Electrical Fault in Circuit - Intermittent

Freeze Frame:

Fault Status: 00101100

Fault Priority: 5

Fault Frequency: 10

Reset counter: 131

Mileage: 221995 km

Time Indication: 0

Date: 2019.04.23

Time: 03:37:56







-------------------------------------------------------------------------------

Address 53: Parking Brake Labels: 5N0-907-801.clb

Part No SW: 3C0 907 801 J HW: 3C0 907 801 J

Component: J540 EPB3 VW-09393 0009

Revision: 008 Serial number: 00000000120260

Coding: 0000057

Shop #: WSC 80093 222 69422

VCID: 29594BA680F9240C6F-807C




No fault code found.




-------------------------------------------------------------------------------

Address 56: Radio Labels: 1K0-035-1xx-56.lbl

Part No: 1K0 035 186 AD

Component: Radio GR0 033 0033

Revision: 0003303S Serial number: VWZ2Z2G2137421

Coding: 0040400

Shop #: WSC 05314 000 00000

VCID: 68DF0EA25B73DD04B0-803C




1 Fault Found:

00875 - Treble Speaker Front Right (R22)

011 - Open Circuit




-------------------------------------------------------------------------------

Address 62: Door, Rear Left

Cannot be reached




-------------------------------------------------------------------------------

Address 72: Door, Rear Right Labels:. 1K0-959-704-GEN3.clb

Part No SW: 1K0 959 704 P HW: 1K0 959 794 G

Component: J389 TUER-SG HR 1118

Revision: 11006001 Serial number: 00000002081639

Coding: 0000144

Shop #: WSC 05311 000 00000

VCID: 3E7388FA6977B3B42A-806A




No fault code found.




Link to comment
Share on other sites

ti-am raspuns la celalalt post.... ce sw avea ecu original al masinii ?



trebuia sa inlocuiti ELV cu altul nou.... aceasta este reparatia corecta.

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

  • Recently Browsing   0 members

    No registered users viewing this page.

×
×
  • Create New...

Functionarea acestui site este sustinuta de cele cateva bannere afisate intre posturi. Ar fi o placere pentru noi daca ar fi adaugat site-ul nostru in lista de exceptii ad-block in broserul tau. Promitem si veti vedea ca nu avem reclame intruzive si nici deranjante (nimic cu sunet,video sau all-screen). Multumim! :)



Accept
