Scanarea cu VCDS - erori aparute

16 Iulie, 2021

Au fost verificate sigurante, alimentatea. Ceasurile din bord nu se aprind, in rest madina merge normal.

17 Iulie, 2021

Verificați alimetarea in mufa ceasurilor. Daca este, alte ceasuri, de proba.

17 Iulie, 2021

Salut! Azi, dupa o depasire in care am fost nevoit sa o calc un pic mai serios (a 4-a, >4000 rpm) m-am trezit cu spira aprinsa (fara check engine). Am oprit motorul, l-am pornit iar si eroarea a disparut. Masina nu are nici un simptom dubios, se comporta absolut ok.

Dupa ~70 km, am ajuns acasa si am pus VCDS si am asa - Senzor temperatura 1 gaze evacuare B1 (G235), P0544 - defect circuit electric - intermitent.

Am parcurs azi un drum de ~580 km si de la ultima regenerare de DPF am 650 km cu 5 cereri de regenerare (majoritatea km parcursi azi au avut loc pe autostrada si ma gandesc ca a avut loc o regenerare pasiva), desi daca erau pe bune alea 5 incercari, probabil "ratate", trebuia sa-mi aprinda martorul de DPF, nu?

Odata ajuns acasa, am pus vcds-ul pe masina, am sters eroarea, am pornit-o si eroarea nu mai apare. Credeti c-a fost un rateu al senzorului, date fiind circumstantele sau trebuie neaparat sa-l inlocuiesc?

Ma gandeam sa mai fac un 50 km cu masina si sa vad daca-si face regenerare DPF, dat fiind faptul ca eroarea nu mai e prezenta pe motor, desi nu am avut check engine aprins. Am uitat sa verific efectiv in blocurile de masura daca senzorul lucreaza ok (temp inainte de turbina), dar la ora asta nu mai am chef sa cobor la masina..:).

Masina: Passat, cod motor - CBBB.

17 Iulie, 2021

Inlocuieste senzorul

17 Iulie, 2021

Chiar daca valoarea pe vcds afisata la temp inaintea turbinei, sa presupunem, ca este ok?

Modificat 17 Iulie, 2021 de Raduchu

18 Iulie, 2021

Verifica si conectorul senzorului

18 Iulie, 2021

Am pus repede vcds-ul pe masina si imi arata cu contactul pus, la temp inaintea turbosuflantei 24 grade celsius, in conditiile in care pe bord imi arata o temp de 20 grade. Am pornit-o si sa inceput sa creasca temperatura - 60,80,110 etc. Am turat-o putin pe loc si crestea temperatura, apoi scadea cand luam piciorul de pe acceleratie. Am oprit-o si temperatura a scazut treptat. Eu zic ca functioneaza ok..acum sa vedem.

DPF-ul mai are ~4g pana sa dea drumul la regenerarea activa, o sa urmaresc si treaba asta.

Buna idee cu conectorul senzorului, o sa il verific si pe dansul :)).

Modificat 18 Iulie, 2021 de Raduchu

18 Iulie, 2021

Da, atâta timp cat nu este un defect permanent, asa se ma manifesta. Citeste eronat numai in anumite momente, random

27 Iulie, 2021

Un prieten a bagat in bricheta o lada frigorifica si a topit mufa facand scurt. A fost la un service si a inlocuit siguranta pentru bricheta dar de cand s-a ars are eroare pe Lane assist, posibil si celelalte sa aiba ceva legatura, pe senzor ploaie/lumina etc. Ce parere aveti? j770 trebuie inlocuit, trebuie calibrare dupa inlocuire cu placa cu buline?

Address 02: Auto Trans        Labels: 02E-927-770.clb
   Part No SW: 02E 300 062 A    HW: 02E 927 770 AL
   Component: GSG DSG AG6     512 4342
   Revision: 05551213    Serial number: 00001206281351
   Coding: 0000020
   Shop #: WSC 05311 000 00000
   VCID: 13250A4B327581D278-8046

1 Fault Found:
18097 - Powertrain Data Bus
            P1689 - 000 - Implausible Message from Elect. Load Controller
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 40
                    Mileage: 192700 km
                    Time Indication: 0
                    Date: 2015.12.18
                    Time: 17:29:49

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 3AA-614-109.clb
   Part No SW: 3AA 614 109 BL    HW: 3AA 614 109 BL
   Component: J104   C2 450M VE9D 0024
   Revision: --H07---    Serial number: 00000005938324
   Coding: 0122300
   Shop #: WSC 05311 000 00000
   VCID: 78FF5DE70BD3428AED-802C

1 Fault Found:
01309 - Power Steering Control Module (J500)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 157
                    Mileage: 192700 km
                    Time Indication: 0
                    Date: 2015.12.18
                    Time: 18:00:55

             Freeze Frame:
                    Speed: 0.0 km/h
                    Hex Value: 0x0000
                    Bin. Bits: 00000000 00000000
                    Voltage: 12.25 V
                    Bin. Bits: 00011111
                    Count: 281
                    Hex Value: 0x0000

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 3AA-937-087.clb
   Part No SW: 3AA 937 087 J    HW: 3AA 937 087 J
   Component: BCM PQ47 H++ 421 0465
   Revision: BD421001
   Coding: 000C000000000000008C0088B40011642375000865202D20E480C72400C9
   Shop #: WSC 30278 001 104857
   VCID: 4189F003D889C3429A-8014

   Subsystem 1 - Part No SW: 3C8 955 119 F    HW: 3C8 955 119 F Labels: 1KX-955-119.CLB
   Component: WWS464 180612 010 0604
   Serial number: 180612
   Coding: 00B795

   Subsystem 2 - Part No SW: 7N0 955 559     HW: 7N0 955 559   Labels: 7N0-955-559.CLB
   Component: RLFS 021 0024
   Serial number: Y12M06D30h02m57s59S4
   Coding: 0680DD

2 Faults Found:
01024 - Rain Sensor (G213)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 157
                    Mileage: 192700 km
                    Time Indication: 0
                    Date: 2015.12.18
                    Time: 18:00:28

             Freeze Frame:
                        Term 15 On
                    Voltage: 12.15 V
                        ON
                        ON
                        ON
                        OFF
                        OFF

01520 - Rain and Light Recognition Sensor (G397)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 157
                    Mileage: 192700 km
                    Time Indication: 0
                    Date: 2015.12.18
                    Time: 18:00:28

             Freeze Frame:
                        Term 15 On
                    Voltage: 12.15 V
                        ON
                        ON
                        ON
                        OFF
                        OFF

-------------------------------------------------------------------------------
Address 3C: Lane Change        Labels: None
   Part No SW: 3AA 907 566 C    HW: 4G0 907 566
   Component: J769 SWA MasterH02 0010
   Revision: 00H02000    Serial number: 6PZ 010 316-09
   Coding: 0000174
   Shop #: WSC 05311 000 00000
   VCID: 397998E370599B82D2-806C

Subsystem 1 - Part No: 3AA 907 568 C
Component: J0770_SWA_Slave_H02 0010

Subsystem 2 - Serial number: 6PZ 010 316-29

Subsystem 3 - Serial number: 5F09.07.1200H020003C930684˙

Subsystem 4 - Serial number: 930684˙

1 Fault Found:
02850 - Control Module 2 for Lane Change Assistance (J770)
            014 - Defective
             Freeze Frame:
                    Fault Status: 01101110
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 157
                    Mileage: 192700 km
                    Time Indication: 0
                    Date: 2012.01.01
                    Time: 00:00:00

Log-NGB cc passat-WVWZZZ3CZDE525821-192700km-119738mi.txt

Modificat 27 Iulie, 2021 de davidut5

27 Iulie, 2021

Sa verifice alimentarile, etc. Din ce vad, cred ca erorile nu au treaba cu problema de la bricheta

27 Iulie, 2021

El asa a spus, ca atunci cand s-a ars bricheta din portbagaj s-a aprins si martorul pentru asistenta la schimbare banda. Ambele module radar sunt alimentate din siguranta 4 si e buna, o sa incerc sa schimb j770, am vazut unul pe la 250lei.
Referitor la senzor ploaie/lumina, nu trebuia sa aiba doar unul ori g213 ori g397?

Si ceva ciudat, reset counter este 157 la toate erorile mai putin la prima.

Modificat 27 Iulie, 2021 de davidut5

27 Iulie, 2021

Daca schimbi unul, la modelul acesta, trebuie calibrare

29 Iulie, 2021

Buna seara am si eu urmatoarele , erori, ce ma sfatuiti sa fac :

1 Fault Found:
005697 - Please check DTC Memory of A/C Controller
P1641 - 000 - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 1
Reset counter: 255
Mileage: 241595 km
Time Indication: 0
Date: 2000.00.00
Time: 12:04:21

Freeze Frame:
RPM: 840 /min
Speed: 0.0 km/h
Load: 0.0 %
Voltage: 14.59 V
Bin. Bits: 00101100
Temperature: 9.9°C
(no units): 0.0

Readiness: 0 0 0 0 0

30 Iulie, 2021

Zice sa verifici erorile de pe AC/climatronic. Intra pe 08 AutoHVACsi vezi ce erori ai

3 August, 2021

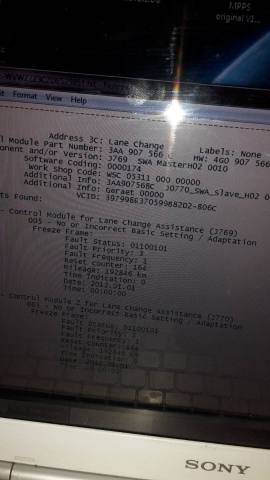

Am inlocuit modulul slave lane assist j770 si a disparut eroarea cu defect dar au aparut eroare cu lipsa adaptare pe amandoi. Deci operatie reusita, am gasit un baiat pe fb din Bucuresti care a zis ca poate face calibrarea.

Modulul cumparat sh parea nou, nemontat. Nu am gasit sa-i iau pe amandoi, doar pe ebay era ceva.

18 August, 2021

Salutare tuturor , de curand mi-am luat un vw 1.9 tdi alh si am urmatoarele erori ,daca ma puteti ajuta , multumesc. Am avut momente cand nu a mers mai mult de 120km /h dupa ce am desfundat valva unisens cu un compresor a inceput sa ruleze 140-160.Ieri am bagat aditivi pentru ulei la motor si mi se opreste motorul intra in limp mode si abia mai pot accelera si trebuie sa repornesc masina ca sa pot merge in continuare,sper sa se fi remediat problema intrucat am schimbat astazi cu uleiul cu 5w40 de la mobile fara nici un fel de aditiv.

Miercuri,18,August,2021,20:48:18:00009
VCDS -- Emulator VAG/VAS bazat pe Windows. Editie în Româna Ruleaza pe Windows 10 x64
Versiune VCDS: ROJ 21.3.0.0
Versiune date: 20210308 DS325.0
www.vcds.ro

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Tip caroserie: 1J - VW Golf/Bora IV (1998 > 2006)
Adrese de scanat: 01 02 03 08 15 16 17 19 22 29 35 36 37 39 46 47 55 56 57 75
76

rulaj: 341460km
-------------------------------------------------------------------------------
Adresa 01: Motor Etichete: ROJ\038-906-018-AGR.clb
Numar VAG: 038 906 018 AE
Component: 1,9l R4 EDC 0000SG 2140
Codare: 00002
Atelier: WSC 00735
VCID: 59B3D0A6C3197B43E4-4B18

4 coduri de defecte:
17552 - Debitmetru aer (G70)
P1144 - 35-00 - circuit întrerupt/scurt la masã
17958 - Reglare presiune supraalimentare
P1550 - 35-10 - diferenþã de reglaj - intermitent
17978 - Modul comandã motor blocat
P1570 - 35-10 - - intermitent
17946 - Ventil de închidere carburant (N109)
P1538 - 35-10 - întrerupere/scurt la masã - intermitent
Gata de functie: N/A

-------------------------------------------------------------------------------
Adresa 03: ABS frâne Etichete: ROJ\1J0-907-37x-ABS.lbl
Numar VAG: 1J0 907 379 G
Component: ABS 20 IE CAN 0001
Codare: 03304
Atelier: WSC 01317
VCID: 356B7C160F417F2320-4B18

2 coduri de defecte:
00283 - Senzor turaþie ABS stânga faþã (G47)
35-10 - Elaborare coduri necunoscuta - intermitent
00283 - Senzor turaþie ABS stânga faþã (G47)
16-10 - Semnal în afara limitei de toleranþã - intermitent

-------------------------------------------------------------------------------
Adresa 15: Airbaguri Etichete:
Numar VAG: 1J0 909 609
VCID: 6CDD99721C8BFEEB0F-4B32

-------------------------------------------------------------------------------
Adresa 17: Instrumente bord Etichete: ROJ\1J0-919-xxx-17.clb
Numar VAG: 1J0 919 881 D
Component: KOMBI+WEGFAHRS. MM0 V16
Codare: 04142
Atelier: WSC 44717
VCID: 336F420E013561130E-5178

Subsistem 1 - Numar VAG: Ident
Component: Nr. WEGFAHRS.:VWZ6Z0W0654820
Ident.-Nr. WEGFAHRS.:VWZ6Z0W0654820

Nu a gasit coduri.

-------------------------------------------------------------------------------
Adresa 46: Confort Etichete: ROJ\1J0-959-799.clb
Numar VAG: 1J0 959 799 AH
Component: 4E Zentral-SG Komf. 0001
Codare: 04097
Atelier: WSC 01317
VCID: 040DD1D2141B16ABE7-4B18

Subsistem 1 - Numar VAG: 1J1959801C
Component: 4E Tõrsteuerger. FS0001r

Subsistem 2 - Numar VAG: 1J1959802D
Component: 4E Tõrsteuerger. BF0001r

Subsistem 3 - Numar VAG: 1J4959811C
Component: 4E Tõrsteuerger. HL0001r

Subsistem 4 - Numar VAG: 1J4959812C
Component: 4E Tõrsteuerger. HR0001r

7 coduri de defecte:
00953 - Limitare de temporizare lumina habitaclu
25-10 - Stare comutator nedefinitã - intermitent
01389 - Comutator deschidere uºa portbagaj (F124)
29-00 - scurt la masã
00928 - Unitate închidere centralizatã (F220) ºofer
27-00 - Semnal neplauzibil
00912 - Comutator geam electric (E40) stânga faþã
27-10 - Semnal neplauzibil - intermitent
00913 - Comutator geam electric (E81) dreapta faþã; la ºofer
27-10 - Semnal neplauzibil - intermitent
00930 - Unitate închidere (F222) stânga spate
27-00 - Semnal neplauzibil
00931 - Unitate închidere (F223) dreapta spate
27-10 - Semnal neplauzibil - intermitent

Sfârsit------------------------(Timp scurs: 05:17)-------------------------

Modificat 18 August, 2021 de Vizitator

25 August, 2021

Passat B8 2016 BITDI 128.000km

Ieri, eram pe centura orasului, dupa o regenerare finalizata corect si corespunzator a DPF-ului, intr- accelerare mai puternica, s-a auzit un bum/pocnitura foarte tare de sub capota, ca si cum ar fi puscat ceva. Am oprit cat am putut de repede pe partea dreapta.

Cum nu aveam decat OBD la mine am verificat erorile aparute.

    Trouble codes:
        P13D600 - Sensor for internal pressure of cylinder 3 Implausible signal
            static
                Date: 2021-08-24 19:40:54
                Mileage: 128740 km
                Priority: 2
                Malfunction frequency counter: 1
                Unlearning counter: 255
                Engine speed: 1242.50 1/min
                Normed load value: 0.0 %
                Vehicle speed: 55 km/h
                Coolant temperature: 91 °C
                Intake air temperature: 98 °C
                Ambient air pressure: 1000 mbar
                Voltage terminal 30: 14.500 V
                Dynamic environmental data: 20962810E800C910EC002810EEF4D214290C10EF012B
        P010400 - Mass or Volume Air Flow Sensor "A" Circuit Intermittent
            Intermittent
        P011300 - Intake Air Temperature Sensor 1 Bank 1 Circuit High
            Intermittent

Am incercat sa pornesc motorul din nou, dar mergea foarte tremurat si turatia fluctua destul de mult.

Am chemat platforma si am dus-o la mecanic.

Ca prima parere/sugestie ar fi ceva furtun fisurat/puscat. Sper totusi nu aibe si alte implicatii...

Multumesc!

25 August, 2021

verificati/inlocuiti bujia de pe cil 3. Daca problema persista, atunci trebuie efectuata o verificare mecanica, compresie pe acel cil, etc

25 August, 2021

Multumesc Florin.

Daca stau sa ma gandesc bine, bujiile au fost schimbate cred la 120.000km. Cand am dat jos capacul de plastic de peste motor, era crapat, posibil in dreptul bujiei?!?

Sa nu fi fost prinsa bine bujia si sa fi scapat presiune pe acolo?

Ca parca acuma incep sa fac niste legaturi...

25 August, 2021

inspecteaza un pic zona respectiva, fa cateva poze sa vad

25 August, 2021

N-am fost pe faza sa le fac atunci, iar acum masina este in curte la service ( cam departe pentru poze ), ca am dus-o direct cu platforma, imi pare rau

Astept un verdict si revin.

Edit - nu tin minte sa fi fost mizere sau ulei pe sub capacul de plastic. Doar ca acesta avea buretele rupt si capacul de plastic era crapat, asta am remarcat. La bujii nu m-am uitat si n-am fost atent, pentru ca nu mi-am putut inchipui ca ar putea fi vreo acolo initial ( cel putin inainte de scanare )

Ms

Modificat 25 August, 2021 de acidone77

25 August, 2021

Buna, am o problema la o octavia 2 1.9tdi 2007 pe modul Abs am eroarea 01317 control module in instrument cluster (j285), nici o eroare pe instrument cluster si pe 44 steering asist am 02546 steering limit stop- no or incorrect basic setting/adaptation si 00778 steering angle sensor g85

pot comunica cu oricare din module dar erorile astea persista si servo merge greu, am incercat adaptarea la steering limit stop si steering angle sensor dar erorile se mentin.

poate fi ABS-ul defect sau trebuie schimbat instrument cluster-ul?

scuze daca nu am postat in topicul potrivit

Multumesc

25 August, 2021

pune un scan complet, sa vedem ce abs ai, ce PN au ceasurile, caseta si ce codari ai pe acolo

25 August, 2021

Wednesday,25,August,2021,15:19:47:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows XP x86
VCDS Version: 20.12.0.0
Data version: 20201124 DS322.0
www.Ross-Tech.com

VIN: TMBGS61Z572050206 License Plate:
Mileage: 345200km-214497mi Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 1Z (1K0)
Scan: 01 03 08 09 15 16 17 19 25 42 44 46 52 56 62 69 72 76 7D

VIN: TMBGS61Z572050206 Mileage: 345200km-214497miles

00-Steering Angle Sensor -- Status: OK 0000
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Not registered 0011
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: Malfunction 0010
52-Door Elect, Pass. -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
69-Trailer -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
76-Park Assist -- Status: OK 0000
7D-Aux. Heat -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03G-906-016-BKC.clb
   Part No SW: 03G 906 021 LB    HW: 03G 906 021 LB
   Component: R4 1,9L EDC G000SG 8501
   Revision: --H05---    Serial number: SKZ7Z0F3806637
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 6AD19F6A457FE0D4BD-803E

1 Fault Found:
005784 - Please Check DTC Memory of Steering Wheel Electronics
               P1698 - 001 -
             Freeze Frame:
                    Fault Status: 01100001
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 345205 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 04:25:18

             Freeze Frame:
                    RPM: 0 /min
                    Speed: 0.0 km/h
                    Load: 0.0 %
                    Voltage: 12.24 V
                    Bin. Bits: 11001100
                    Bin. Bits: 00000000
                    (no units): 0.0

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK60-F.lbl
   Part No SW: 1K0 907 379 AC    HW: 1K0 907 379 AC
   Component: ESP FRONT MK60      0101
   Revision: 00H11001
   Coding: 0021633
   Shop #: WSC 73430 790 00000
   VCID: 73EF820E12B5211C0E-8026

1 Fault Found:
01317 - Control Module in Instrument Cluster (J285)
000 - -

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-907-044.lbl
   Part No: 1Z0 907 044 J
   Component: ClimatronicPQ35 084 0305
   Shop #: WSC 00000 000 00000
   VCID: 3D7B64366471A76C28-8068

1 Fault Found:
00229 - Refrigerant Pressure
002 - Lower Limit Exceeded

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-23-H.lbl
   Part No SW: 3C0 937 049 E    HW: 3C0 937 049 E
   Component: Bordnetz-SG     H37 1002
   Revision: 00H37000    Serial number: 00000004401301
   Coding: 09888F030004140000110D000000000000097F075C
   Shop #: WSC 73430 790 00000
   VCID: 2B5F5A6E8A0539DC86-807E

   Subsystem 1 - Part No: 1Z1 955 119 A Labels: 1KX-955-119.CLB
   Component: Wischer SK351 012 0401
   Coding: 00063477
   Shop #: WSC 73430

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 AA    HW: 1K0 909 605 AA
   Component: Q2 AIRBAG VW8   027 0900
   Revision: 11027000    Serial number: 003B5D0ZUXEF
   Coding: 0020786
   Shop #: WSC 73430 790 00000
   VCID: 6BDF9A6E4A85F9DCC6-803E

Subsystem 1 - Serial number: 6332MSME0F682628I

Subsystem 2 - Serial number: 6342MSME121E660BD

Subsystem 3 - Serial number: 6351HSME0B1E051FE

Subsystem 4 - Serial number: 6361HSME0B1E1B15C

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY8.lbl
   Part No SW: 1K0 953 549 BC    HW: 1K0 953 549 BC
   Component: Lenksäulenmodul 035 0070
   Coding: 0000042
   Shop #: WSC 73430 790 00000
   VCID: 74ED811217BB262417-8020

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1K0-920-xxx-17.lbl
   Part No SW: 1Z0 920 812 D    HW: 1Z0 920 812 D
   Component: KOMBIINSTRUMENT VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0F3806637
   Coding: 0003101
   Shop #: WSC 80093 222 69422
   VCID: 356B7C165C417F2CE0-8060

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels:. 1K0-907-530-V2.clb
   Part No SW: 1K0 907 530 H    HW: 1K0 907 951
   Component: J533__Gateway   H12 0150
   Revision:   H12       Serial number: 31001068151302
   Coding: 393F4F4007002302
   Shop #: WSC 80093 222 69422
   VCID: 2C5D59728F0B3EE48F-8078

1 Fault Found:
01044 - Control Module Incorrectly Coded
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 65
                    Mileage: 345205 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 23:23:00

-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No SW: 1Z0 920 812 D    HW: 1Z0 920 812 D
   Component: IMMO            VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0F3806637
   Shop #: WSC 00000 000 00000
   VCID: 356B7C165C417F2CE0-8060

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 D    HW: 1T0 959 701 D
   Component: Tuer-SG         005 0953
   Coding: 0000246
   Shop #: WSC 73430 790 00000
   VCID: 387575224B538244FB-806C

3 Faults Found:
00120 - Outside Warning Light/Door exit Light Driver Side
            012 - Electrical Fault in Circuit
00913 - Window Regulator Switch; Front Right Driver (E81)
            008 - Implausible Signal
00131 - Outside Door Handle Illumination/mirror Light Driver Side
            012 - Electrical Fault in Circuit

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K1 909 144 L
   Component: EPS_ZFLS Kl.069 H07 1806
   Shop #: WSC 02069 000 90108
   VCID: 346D4112573B6624D7-8060

2 Faults Found:
02546 - Steering Limit Stop
            005 - No or Incorrect Basic Setting / Adaptation
             Freeze Frame:
                    Mileage: 345200 km
                    Temperature: 20.0°C
                    Voltage: 12.10 V
                    Voltage: 11.90 V

00778 - Steering Angle Sensor (G85)
000 - -
Freeze Frame:

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 1K0-959-433-MAX.clb
   Part No SW: 1K0 959 433 BT    HW: 1K0 959 433 BT
   Component:    KSG PQ35 G2 020 0202
   Revision: 00020000    Serial number: 00000000000000
   Coding: 00801A085283007F3F04850540084FD6907CA0
   Shop #: WSC 73430 790 00000
   VCID: 030FD2CE4215119C1E-8056

   Subsystem 5 - Part No: 1Z0 951 171 A
   Component: NeigungsSensor 008 5003
   Coding: 00000000
   Shop #: WSC 73430

Subsystem 6 - Part No: 1K0 951 605 C
Component: LIN BACKUP HORN H03 1301

Subsystem 7 - Part No: 1Z0 951 171 A
Component: Innenraumueberw.008 5003

1 Fault Found:
00323 - Vehicle Inclination Sensor (G384)
            014 - Defective
             Freeze Frame:
                    Fault Status: 01101110
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 65
                    Mileage: 345205 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 23:23:08

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels:. 1K0-959-702-MIN3.clb
   Part No SW: 1T0 959 702 D    HW: 1T0 959 702 D
   Component: Tuer-SG         005 0943
   Coding: 0000246
   Shop #: WSC 73430 790 00000
   VCID: 3973702670599B4C04-806C

1 Fault Found:
00132 - Outside Door Handle Illumination/mirror Light Passenger Side
012 - Electrical Fault in Circuit

-------------------------------------------------------------------------------
Address 56: Radio        Labels: 1K0-035-1xx-56.lbl
   Part No SW: 1Z0 035 161 C    HW: 1Z0 035 161 C
   Component: Radio FO3       019 0034
   Revision: 00019000    Serial number: SKZ7Z3G0162475
   Coding: 0010400
   Shop #: WSC 00426 204 10924
   VCID: 2E59537AB9174CF4A1-807A

1 Fault Found:
00856 - Radio Antenna
011 - Open Circuit

-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels:. 1K0-959-703-GEN3.clb
   Part No SW: 1K0 959 703 J    HW: 1K0 959 703 J
   Component: Tuer-SG         005 0907
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 3777761E464D8D3CF2-8062

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer        Labels: 8P0-907-383.clb
   Part No SW: 8P0 907 383     HW: 8P0 907 383
   Component: ANHAENGERELEKTR H01 0010
   Coding: 0000001
   Shop #: WSC 00000 000 00000
   VCID: 76E9BB1A01C7343429-8022

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels:. 1K0-959-704-GEN3.clb
   Part No SW: 1K0 959 704 J    HW: 1K0 959 704 J
   Component: Tuer-SG         005 0907
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 387575224B538244FB-806C

No fault code found.

-------------------------------------------------------------------------------
Address 76: Park Assist        Labels: 1Z0-919-283.lbl
   Part No SW: 1Z0 919 283 C    HW: 1Z0 919 283 C
   Component: Parkhilfe 8-Kan H04 0020
   Coding: 0010011
   Shop #: WSC 73430 790 00000
   VCID: 3E79633A6977BC7431-806A

No fault code found.

-------------------------------------------------------------------------------
Address 7D: Aux. Heat        Labels: 1K0-963-235.lbl
   Part No SW: 1K0 963 235 E    HW: 1K0 963 235 E
   Component: PTC-Element         0404
   Revision: 00800000    Serial number:
   Shop #: WSC 00000 000 00000
   VCID: 2D5B5476B41137EC98-8078

1 Fault Found:
00361 - Heater Element for Auxiliary Heater (Z35)
014 - Defective

End-------------------------(Elapsed Time: 02:04)--------------------------
Wednesday,25,August,2021,15:35:13:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows XP x86
VCDS Version: 20.12.0.0
Data version: 20201124 DS322.0
www.Ross-Tech.com

VIN: TMBGS61Z572050206 License Plate:
Mileage: 345200km-214497mi Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 1Z (1K0)
Scan: 01 03 08 09 15 16 17 19 25 42 44 46 52 56 62 69 72 76 7D

VIN: TMBGS61Z572050206 Mileage: 345200km-214497miles

00-Steering Angle Sensor -- Status: OK 0000
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: Malfunction 0010
52-Door Elect, Pass. -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
69-Trailer -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
76-Park Assist -- Status: Malfunction 0010
7D-Aux. Heat -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03G-906-016-BKC.clb
   Part No SW: 03G 906 021 LB    HW: 03G 906 021 LB
   Component: R4 1,9L EDC G000SG 8501
   Revision: --H05---    Serial number: SKZ7Z0F3806637
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 6AD19F6A457FE0D4BD-803E

1 Fault Found:
005784 - Please Check DTC Memory of Steering Wheel Electronics
               P1698 - 001 -
             Freeze Frame:
                    Fault Status: 01100001
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 345205 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 06:09:43

             Freeze Frame:
                    RPM: 0 /min
                    Speed: 0.0 km/h
                    Load: 0.0 %
                    Voltage: 11.93 V
                    Bin. Bits: 11001100
                    Bin. Bits: 00000000
                    (no units): 0.0

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK60-F.lbl
   Part No SW: 1K0 907 379 AC    HW: 1K0 907 379 AC
   Component: ESP FRONT MK60      0101
   Revision: 00H11001
   Coding: 0021633
   Shop #: WSC 73430 790 00000
   VCID: 73EF820E12B5211C0E-8026

2 Faults Found:
01486 - System Function Test Activated
000 - -
00287 - ABS Wheel Speed Sensor; Rear Right (G44)
003 - Mechanical Failure

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-907-044.lbl
   Part No: 1Z0 907 044 J
   Component: ClimatronicPQ35 084 0305
   Shop #: WSC 00000 000 00000
   VCID: 3D7B64366471A76C28-8068

1 Fault Found:
00229 - Refrigerant Pressure
002 - Lower Limit Exceeded

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-23-H.lbl
   Part No SW: 3C0 937 049 E    HW: 3C0 937 049 E
   Component: Bordnetz-SG     H37 1002
   Revision: 00H37000    Serial number: 00000004401301
   Coding: 09888F030004140000110D000000000000097F075C
   Shop #: WSC 73430 790 00000
   VCID: 2B5F5A6E8A0539DC86-807E

   Subsystem 1 - Part No: 1Z1 955 119 A Labels: 1KX-955-119.CLB
   Component: Wischer SK351 012 0401
   Coding: 00063477
   Shop #: WSC 73430

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 AA    HW: 1K0 909 605 AA
   Component: Q2 AIRBAG VW8   027 0900
   Revision: 11027000    Serial number: 003B5D0ZUXEF
   Coding: 0020786
   Shop #: WSC 73430 790 00000
   VCID: 6BDF9A6E4A85F9DCC6-803E

Subsystem 1 - Serial number: 6332MSME0F682628I

Subsystem 2 - Serial number: 6342MSME121E660BD

Subsystem 3 - Serial number: 6351HSME0B1E051FE

Subsystem 4 - Serial number: 6361HSME0B1E1B15C

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY8.lbl
   Part No SW: 1K0 953 549 BC    HW: 1K0 953 549 BC
   Component: Lenksäulenmodul 035 0070
   Coding: 0000042
   Shop #: WSC 73430 790 00000
   VCID: 74ED811217BB262417-8020

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1K0-920-xxx-17.lbl
   Part No SW: 1Z0 920 812 D    HW: 1Z0 920 812 D
   Component: KOMBIINSTRUMENT VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0F3806637
   Coding: 0003101
   Shop #: WSC 80093 222 69422
   VCID: 356B7C165C417F2CE0-8060

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels:. 1K0-907-530-V2.clb
   Part No SW: 1K0 907 530 H    HW: 1K0 907 951
   Component: J533__Gateway   H12 0150
   Revision:   H12       Serial number: 31001068151302
   Coding: 3D3F4F4007002302
   Shop #: WSC 80093 222 69422
   VCID: 2C5D59728F0B3EE48F-8078

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No SW: 1Z0 920 812 D    HW: 1Z0 920 812 D
   Component: IMMO            VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0F3806637
   Shop #: WSC 00000 000 00000
   VCID: 356B7C165C417F2CE0-8060

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 D    HW: 1T0 959 701 D
   Component: Tuer-SG         005 0953
   Coding: 0000246
   Shop #: WSC 73430 790 00000
   VCID: 387575224B538244FB-806C

3 Faults Found:
00120 - Outside Warning Light/Door exit Light Driver Side
            012 - Electrical Fault in Circuit
00913 - Window Regulator Switch; Front Right Driver (E81)
            008 - Implausible Signal
00131 - Outside Door Handle Illumination/mirror Light Driver Side
            012 - Electrical Fault in Circuit

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K1 909 144 L
   Component: EPS_ZFLS Kl.069 H07 1806
   Shop #: WSC 02069 000 90108
   VCID: 346D4112573B6624D7-8060

2 Faults Found:
02546 - Steering Limit Stop
            005 - No or Incorrect Basic Setting / Adaptation
             Freeze Frame:
                    Mileage: 345200 km
                    Temperature: 17.0°C
                    Voltage: 11.80 V
                    Voltage: 11.60 V
