Scanarea cu VCDS - erori aparute

6 Februarie, 2018

cele doua yale - de la usile cu erori - au lipituri reci - trebuie desfacute yalele, refacute lipiturile, curatat colectoarele la motorase si schimbate si switch-urile, daca tot le dai jos.

6 Februarie, 2018

Buna ziua,

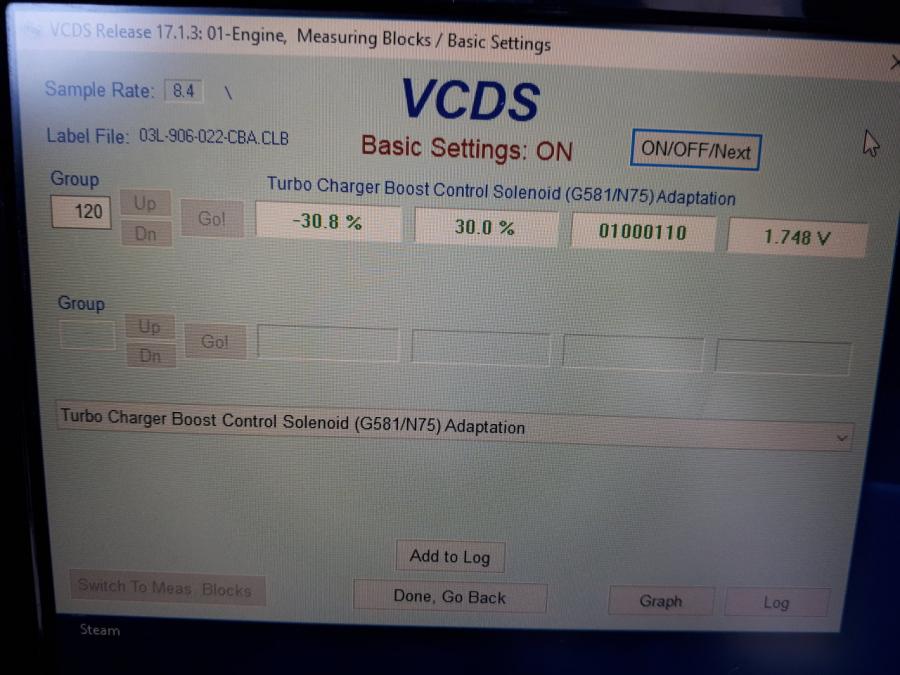

Masina din semnatura a avut DPF infundat, dupa curatare am ramas cu codul de eroare P2563. Dupa testari indelungate ale vacumului, cablaj, rezistenta, mentionez ca mai detin o masina cu acelasi cod motor si am putut face comparatie intre ele, singura diferenta am gasit-o cand vroiam sa fac adaptarea in grupul 120.1 si 120.4.

Daca poate cineva sa-mi explice ce reprezinta primele doua grupuri sau daca e defect actuatorul sau trebuie curatat turbo.

Multumesc anticipat !

6 Februarie, 2018

în urmă cu 3 ore, F l o r i n a scris:

cele doua yale - de la usile cu erori - au lipituri reci - trebuie desfacute yalele, refacute lipiturile, curatat colectoarele la motorase si schimbate si switch-urile, daca tot le dai jos.

de unde se pot cumpara acele switch-uri ?

6 Februarie, 2018

magazine de componente electronice.... magazine online... tme.eu... etc

daca e sa cauti un pic pe forum, gasesti toate informatiile pe forum.

6 Februarie, 2018

în urmă cu 2 ore, F l o r i n a scris:

magazine de componente electronice.... magazine online... tme.eu... etc

daca e sa cauti un pic pe forum, gasesti toate informatiile pe forum.

spune-mi te rog daca s-ar potrivi switch-ul de golf 4, la incuietoare de golf 5
ca am gasit un tip pe OLX ce vinde microintrerupatoare dinastea, doar ca sunt de golf 4

multumesc

6 Februarie, 2018

nu se potrivesc.

6 Februarie, 2018

în urmă cu 2 ore, Al Bundy a scris:

nu se potrivesc.

este vorba despre asta

zici ca nu s-ar potrivi ?
pare foarte similar cu cel de golf 5

cel ce vinde produsul, sustine ca s-ar potrivi.

multumesc

iar aici(alt tip de switch) https://www.ebay.com/itm/OEM-3BD-998-786-New-Right-Door-Lock-Microswitch-for-VW-Golf-MK4-Passat-B5-Bora/272549598143?epid=2102846019&hash=item3f7538d3bf:g:7ukAAOSwI59aBoZH&vxp=mtr
in titlu scrie ca e de golf 4, desi el e de golf 5... dupa cum arata

Modificat 6 Februarie, 2018 de ionut.vidrighin

7 Februarie, 2018

Salutare! Revin și eu cu niște erori la Passatul unui var. Merci de ajutor!

Address 01: Engine Labels: 03G-906-016-BKC.lbl

Part No SW: 03G 906 021 DP HW: 028 101 274 2

Component: R4 1,9L EDC G000SG 7870

Revision: --H01--- Serial number: VWZCZ000000000

Coding: 0000071

Shop #: WSC 00028 028 00001

VCID: 701A01CFA3AC4392355E85-8024

2 Faults Found:

005658 - Glowplug for Cylinder 1 (Q10)

P161A - 000 - Open Circuit

Freeze Frame:

Fault Status: 01110000

Fault Priority: 0

Fault Frequency: 1

Reset counter: 255

Mileage: 246956 km

Time Indication: 0

Date: 2000.00.00

Time: 09:09:45

Freeze Frame:

RPM: 0 /min

Speed: 0.0 km/h

Load: 0.0 %

Voltage: 12.46 V

Bin. Bits: 00001111

Temperature: 8.1°C

Bin. Bits: 00110000

005661 - Glowplug for Cylinder 4 (Q13)

P161D - 000 - Open Circuit

Freeze Frame:

Fault Status: 01110000

Fault Priority: 0

Fault Frequency: 1

Reset counter: 255

Mileage: 246956 km

Time Indication: 0

Date: 2000.00.00

Time: 09:09:45

Freeze Frame:

RPM: 0 /min

Speed: 0.0 km/h

Load: 0.0 %

Voltage: 12.46 V

Bin. Bits: 00001111

Temperature: 8.1°C

Bin. Bits: 00110000

Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------

Address 03: ABS Brakes Labels: 3C0-614-095-C2.clb

Part No SW: 3C0 614 095 P HW: 3C0 614 095 P

Component: ESP 440 C2 H015 0003

Revision: H015 Serial number: 0658116121

Coding: 0009985

Shop #: WSC 00028 028 00001

VCID: 2F98C2B37E121C6A6CE45E-807A

3 Faults Found:

01542 - Yaw Rate Sensor (G202)

014 - Defective - Intermittent

Freeze Frame:

Fault Status: 00101110

Fault Priority: 3

Fault Frequency: 2

Reset counter: 230

Mileage: 246857 km

Time Indication: 0

Date: 2000.00.00

Time: 00:02:08

01423 - Lateral Acceleration Sensor (G200)

014 - Defective - Intermittent

Freeze Frame:

Fault Status: 00101110

Fault Priority: 3

Fault Frequency: 2

Reset counter: 230

Mileage: 246857 km

Time Indication: 0

Date: 2000.00.00

Time: 00:02:09

00789 - Backup Switch (F41)

008 - Implausible Signal - Intermittent

Freeze Frame:

Fault Status: 00101000

Fault Priority: 6

Fault Frequency: 2

Reset counter: 232

Mileage: 246887 km

Time Indication: 0

Date: 2000.00.00

Time: 01:10:54

-------------------------------------------------------------------------------

Address 09: Cent. Elect. Labels: 3C0-937-049-23-M.lbl

Part No SW: 3C0 937 049 H HW: 3C0 937 049 H

Component: Bordnetz-SG H37 1301

Revision: 00H37000 Serial number: 00000003430606

Coding: 00880F0700041A00000A00000F000000000959435C0000

Shop #: WSC 00028 028 00001

VCID: 2EA6DFB77918156267F2AB-807A

Subsystem 1 - Part No: 3C1 955 119 Labels: 1KX-955-119.CLB

Component: Wischer VW461 012 0503

Coding: 00065493

Shop #: WSC 00028

02395 - Parking Light Front Right (M3)

012 - Electrical Fault in Circuit - Intermittent

Freeze Frame:

Fault Status: 00101100

Fault Priority: 2

Fault Frequency: 33

Reset counter: 232

Mileage: 244280 km

Time Indication: 0

Freeze Frame:

ON

Voltage: 12.50 V

------------------------------------------------------------

Address 15: Airbags Labels: 3C0-909-605.lbl

Part No SW: 3C0 909 605 F HW: 3C0 909 605 F

Component: 01 AIRBAG VW8 029 2421

Revision: 08029000 Serial number: 0039USHJN8KS

Coding: 0012337

Shop #: WSC 00028 028 00001

VCID: 29AC2CAB40F6725AB2A090-807C

Subsystem 1 - Serial number: 6332MSME0B131E56

Subsystem 2 - Serial number: 6342MSME0B4E726C

Subsystem 3 - Serial number: 6351HTS65CHQ0L13

Subsystem 4 - Serial number: 6361HTS614F2DLI2

Subsystem 5 - Serial number: 6371VTS6SH9Q8K83

Subsystem 6 - Serial number: 00000000000000000

1 Fault Found:

01218 - Side Airbag Igniter; Passenger Side (N200)

001 - Upper Limit Exceeded - MIL ON

------------------------------------------------------------------------------------------------------------------------------------

Address 17: Instruments Labels: 3C0-920-xxx-17.lbl

Part No SW: 3C0 920 850 L HW: 3C0 920 850 L

Component: KOMBIINSTRUMENT VD1 4038

Revision: V0032000 Serial number: 00000000000000

Coding: 0007105

Shop #: WSC 80093 222 69422

VCID: 2AAED3A745F07942BB9A87-807E

1 Fault Found:

00446 - Function Limitation due to Under-Voltage

002 - Lower Limit Exceeded - Intermittent

Freeze Frame:

Fault Status: 00100010

Fault Priority: 2

Fault Frequency: 1

Reset counter: 230

Mileage: 246857 km

Time Indication: 0

Date: 2000.00.00

Time: 00:01:16

-------------------------------------------------------------------------------

Address 25: Immobilizer Labels: 3C0-959-433-25.clb

Part No SW: 3C0 959 433 HW: 3C0 959 433

Component: IMMO 038 0347

Revision: 00038000 Serial number: VWZCZ000000000

Shop #: WSC 131071 1023 2097151

VCID: 67286A939662842A643426-8032

Subsystem 1 - Part No: 3C0 905 861 C

Component: ELV 023 0350

3C0905861C ELV 023 0350

2 Faults Found:

02823 - Requirements for Locking the Steering Column Lock not met

000 - - - Intermittent

Freeze Frame:

Fault Status: 00110000

Fault Priority: 7

Fault Frequency: 1

Reset counter: 207

Mileage: 244804 km

Time Indication: 0

Date: 2000.00.00

Time: 20:55:09

02812 - Supply Voltage (Terminal 30) for Electronic Steering Column Lock

002 - Lower Limit Exceeded - Intermittent

Freeze Frame:

Fault Status: 00100010

Fault Priority: 5

Fault Frequency: 1

Reset counter: 40

Mileage: 246857 km

Time Indication: 0

Date: 2000.00.00

Time: 00:01:55

-------------------------------------------------------------------------------

Address 46: Central Conv. Labels: 3C0-959-433-46.clb

Part No SW: 3C0 959 433 HW: 3C0 959 433

Component: KSG PQ46 ELV 038 0434

Revision: 00038000 Serial number: VWZCZ000000000

Coding: 01900A0801860E763804941570084F0E703C80

Shop #: WSC 00028 028 00001

VCID: 67286A939662842A643426-8032

Subsystem 1 - Part No: 1K0 951 605 C

Component: LIN BACKUP HORN H03 1301

Subsystem 2 - Component: NGS n.mounted

Subsystem 3 - Component: IRUE n.mounted

2 Faults Found:

01134 - Alarm Horn (H12)

000 - -

Freeze Frame:

Fault Status: 01100000

Fault Priority: 4

Fault Frequency: 17

Reset counter: 190

Mileage: 0 km

Time Indication: 0

01134 - Alarm Horn (H12)

004 - No Signal/Communication - Intermittent

Freeze Frame:

Fault Status: 00100100

Fault Priority: 4

Fault Frequency: 2

Reset counter: 230

Mileage: 0 km

Time Indication: 0

-------------------------------------------------------------------------------

Address 53: Parking Brake Labels: 3C0-907-801-53.clb

Part No SW: 3C0 907 801 G HW: 3C0 907 801 G

Component: EPB VD8HC005 013 0005

Revision: 013

Coding: 0000012

Shop #: WSC 00442 210 91419

VCID: 26B6279751E85D229F42F3-8072

1 Fault Found:

02844 - Lamp for Automatic Parking Function

009 - Open or Short to Ground - MIL ON

Freeze Frame:

Fault Status: 11101001

Fault Priority: 4

Fault Frequency: 46

Reset counter: 190

Time Indication: 0

Freeze Frame:

Voltage: 9.83 V

Count: 64

-------------------------------------------------------------------------------

Address 56: Radio Labels: 1K0-035-1xx-56.lbl

Part No: 1K0 035 186 AF

Component: Radio GR0 035 0034

Revision: 0003505S Serial number: VWZ2Z2H1131911

Coding: 0040400

Shop #: WSC 00028 028 00001

VCID: 6A2E13A78570B9427B1AC7-803E

4 Faults Found:

00668 - Supply Voltage Terminal 30

002 - Lower Limit Exceeded - Intermittent

00856 - Radio Antenna

011 - Open Circuit

00872 - Bass Speaker Rear Left (R15)

011 - Open Circuit

00873 - Bass Speaker Rear Right (R17)

011 - Open Circuit

-------------------------------------------------------------------------------

Address 7D: Aux. Heat Labels: 1K0-963-235.lbl

Part No SW: 1K0 963 235 E HW: 1K0 963 235 E

Component: PTC-Element 0404

Revision: 00800000 Serial number:

Shop #: WSC 00000 000 00000

VCID: 2DA4D8BB741E6E7A5EF8A4-8078

1 Fault Found:

00361 - Heater Element for Auxiliary Heater (Z35)

014 - Defective

7 Februarie, 2018

Dar cum s-a ales cu atatea ?

-Bujiile 1 si 4, de inlocuit.

- Z35 - rezistenta auxiliara - de reparat.

-difuzoare

- goarna alarma defecta

-baterie slaba - poate de aici si eroarea de colana = ELV

-sterge erorile pe ABS sa vedem daca dispar.... si pe toate, dupa care scanezi si vedem care raman

7 Februarie, 2018

Salut, am si eu o problema la un vw polo 6r. Dupa ce am facut updateul de soft, cel pentru problemele cu emisiile si injectoarele, am observat ca au lasat turatia foarte jos (la 720 rpm). Cand am incercat sa ridic turatia cu diagnoza, din blockul engine measuring blocks nu mai pot sa o ridic pentru ca este dezactivat. Dupa mai multe cautari am aflat ca noul standard de la vw este UDS,acest standard nu mai permite sa acesezi measuring blocks.

Știe cineva cum as putea sa ridic turatia?

Vreau sa ridic turația pentru ca trepideaza si ii tot variaza turatia cand sta la relanti ca si cand ar da sa moara motoru.(asta numa la prima pornire daca circul cu ea putin nu mai are nimic)

Sau daca stiti alta solutie pentru acest trepidat sunt dispus sa incerc.

Modificat 7 Februarie, 2018 de Sfirlea Alex

7 Februarie, 2018

Buna!

A aparut o eroare la scanare si as vrea sa stiu daca trebuie sa inlocuiesc cumva plutitorul (sau pompa) din rezervorul de motorina sau merge reparat?

Address 17: Instruments Labels: 5K0-920-xxx-17.clb
Control Module Part Number: 5K0 920 871 A HW: 5K0 920 871 A
Component and/or Version: KOMBI H03 0406
Software Coding: 170F00
Work Shop Code: WSC 00066 123 00147
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04089 (VW36)
VCID: 2C5D1A694710169
1 Fault Found:

9459995 - Covering for fuel level indicator sensor 1
B1059 1B [008] - Resistance Too High
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 8
Reset counter: 179
Mileage: 173423 km
Date: 2081.14.31
Time: 15:50:12

Multumesc!

7 Februarie, 2018

si nu indica corect carburantul din rezervor?

Plutitor nu gasesti separat, din pacate.

7 Februarie, 2018

Salutare!

Am un Seat Leon 1M 1.9TDI ARL 150HP si am urmatoarea eroare:

19586 - EGR System
P3130 - 35-10 - Regulation Range Exceeded - Intermittent

La measuring block pe canalul 003 la Actual Value e cam cu 200mg/str mai mare decat Specified Value.

Masina trage foarte bine, nu scoate fum, dar sta check-ul aprins in bord. Am schimbat EGR-ul, valva N18, verificat furtune vacuum si tot asa face.

Modificat 7 Februarie, 2018 de mariuscj

7 Februarie, 2018

salut

Ma poate ajuta cineva cu o interpretare a unui cod...va rog frumos.

Miercuri,07,Februarie,2018,15:45:23:00001
VCDS -- Emulator VAG/VAS bazat pe Windows. Editie în Româna Ruleaza pe Windows 10 x64
Versiune VCDS: ROJ 17.8.0.1
Versiune date: 20170817 DS276.3
www.vcds.ro

Numar VIN: WVWZZZ1JZ2W468909 Nr.înmatriculare:

Tip caroserie: 1J (1J - VW Golf/Bora IV (1998 > 2006))
Adrese de scanat: 01 02 03 08 15 16 17 19 22 29 35 36 37 39 46 47 55 56 57 75
76

Numar VIN: WVWZZZ1JZ2W468909 rulaj: 248430km
-------------------------------------------------------------------------------
Adresa 01: Motor Eticheta: ROJ\036-906-034-AZD.clb
Numar VAG: 036 906 034 CN
Component: MARELLI 4MV 4251
Codare: 00031
Atelier: WSC 01391
VCID: 60CE981CE043A246EA-4B64
WVWZZZ1JZ2W468909 VWZ7Z0A4541356

Nu a gasit coduri.
Gata de functie: 0000 0000

-------------------------------------------------------------------------------
Adresa 03: ABS frâne Eticheta: ROJ\1C0-907-37x-ABS.lbl
Numar VAG: 1C0 907 379 J
Component: ABS FRONT MK60 0103
Codare: 0001025
Atelier: WSC 01391 785 00200
VCID: 31682D58AB295BCE35-515A

Nu a gasit coduri.

-------------------------------------------------------------------------------
Adresa 15: Airbaguri Eticheta: ROJ\6Q0-909-605-VW5.clb
Numar VAG: 1C0 909 605 A
Component: 27 AIRBAG VW51 01 0004
Codare: 12855
Atelier: WSC 01391
VCID: 224AD214AECFF056BC-513C

Nu a gasit coduri.

-------------------------------------------------------------------------------
Adresa 17: Instrumente bord Eticheta: ROJ\1J0-920-xx5-17.clb
Numar VAG: 1J5 920 806 B
Component: KOMBI+WEGFAHRSP VDO V11
Codare: 01113
Atelier: WSC 00000
VCID: 2B543F30D905311E0F-513C
WVWZZZ1JZ2W468909 VWZ7Z0A4541356

Nu a gasit coduri.

-------------------------------------------------------------------------------
Adresa 19: Poarta CAN Eticheta: ROJ\6N0-909-901-19.clb
Numar VAG: 6N0 909 901
Component: Gateway K<->CAN 0001
Codare: 00006
Atelier: WSC 01391
VCID: 70EEE85C30A312C67A-513C

1 cod a gasit:
00463 - Modul penru pachet audio digital -J525- [DSP]
49-00 - Nu este comunicare

Sfârsit------------------------(Timp scurs: 05:14)-------------------------

7 Februarie, 2018

@Florin am revenit cu diferența!

Address 09: Cent. Elect. Labels: 3C0-937-049-23-M.lbl

Part No SW: 3C0 937 049 H HW: 3C0 937 049 H

Component: Bordnetz-SG H37 1301

Revision: 00H37000 Serial number: 00000003430606

Coding: C0880F0700041A23000A00000F000000000959435C0000

Shop #: WSC 00028 028 00001

VCID: 2EA6C0B77918156267F2AB-807A

Subsystem 1 - Part No: 3C1 955 119 Labels: 1KX-955-119.CLB

Component: Wischer VW461 012 0503

Coding: 00065493

Shop #: WSC 00028

Subsystem 2 - Component: Fehler Lin-Slave 02

2 Faults Found:

02071 - Local Databus

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 4

Mileage: 253310 km

Time Indication: 0

Freeze Frame:

ON

Voltage: 12.10 V

ON

OFF

01520 - Rain and Light Recognition Sensor (G397)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 4

Mileage: 253310 km

Time Indication: 0

Freeze Frame:

ON

Voltage: 12.10 V

ON

OFF

-------------------------------------------------------------------------------

Address 15: Airbags Labels: 3C0-909-605.lbl

Part No SW: 3C0 909 605 F HW: 3C0 909 605 F

Component: 01 AIRBAG VW8 029 2421

Revision: 08029000 Serial number: 0039USHJN8KS

Coding: 0012337

Shop #: WSC 00028 028 00001

VCID: 29AC33AB40F6725AB2A090-807C

Subsystem 1 - Serial number: 6332MSME0B131E56

Subsystem 2 - Serial number: 6342MSME0B4E726C

Subsystem 3 - Serial number: 6351HTS65CHQ0L13

Subsystem 4 - Serial number: 6361HTS614F2DLI2

Subsystem 5 - Serial number: 6371VTS6SH9Q8K83

Subsystem 6 - Serial number: 00000000000000000

1 Fault Found:

01218 - Side Airbag Igniter; Passenger Side (N200)

001 - Upper Limit Exceeded - MIL ON

-------------------------------------------------------------------------------

Address 46: Central Conv. Labels: 3C0-959-433-46.clb

Part No SW: 3C0 959 433 HW: 3C0 959 433

Component: KSG PQ46 ELV 038 0434

Revision: 00038000 Serial number: VWZCZ000000000

Coding: 00900A0801864E763802941570084F0E703C80

Shop #: WSC 00028 028 00001

VCID: 672875939662842A643426-8032

Subsystem 1 - Part No: 1K0 951 605 C

Component: LIN BACKUP HORN H03 1301

Subsystem 2 - Component: NGS n.mounted

Subsystem 3 - Component: IRUE n.mounted

1 Fault Found:

01134 - Alarm Horn (H12)

000 - -

Freeze Frame:

Fault Status: 01100000

Fault Priority: 4

Fault Frequency: 1

Reset counter: 4

Mileage: 253310 km

Time Indication: 0

Date: 2000.00.00

Time: 09:32:16

-------------------------------------------------------------------------------

Address 53: Parking Brake Labels: 3C0-907-801-53.clb

Part No SW: 3C0 907 801 G HW: 3C0 907 801 G

Component: EPB VD8HC005 013 0005

Revision: 013

Coding: 0000011

Shop #: WSC 00442 210 91419

VCID: 26B6389751E85D229F42F3-8072

1 Fault Found:

02844 - Lamp for Automatic Parking Function

009 - Open or Short to Ground - MIL ON

Freeze Frame:

Fault Status: 11101001

Fault Priority: 4

Fault Frequency: 254

Reset counter: 2

Time Indication: 0

Freeze Frame:

Voltage: 9.83 V

Count: 64

-------------------------------------------------------------------------------

Address 56: Radio Labels: 1K0-035-1xx-56.lbl

Part No: 1K0 035 186 AF

Component: Radio GR0 035 0034

Revision: 0003505S Serial number: VWZ2Z2H1131911

Coding: 0020400

Shop #: WSC 00028 028 00001

VCID: 6A2E0CA78570B9427B1AC7-803E

3 Faults Found:

00856 - Radio Antenna

011 - Open Circuit

00872 - Bass Speaker Rear Left (R15)

011 - Open Circuit

00873 - Bass Speaker Rear Right (R17)

011 - Open Circuit

-------------------------------------------------------------------------------

Address 7D: Aux. Heat Labels: 1K0-963-235.lbl

Part No SW: 1K0 963 235 E HW: 1K0 963 235 E

Component: PTC-Element 0404

Revision: 00800000 Serial number:

Shop #: WSC 00000 000 00000

VCID: 2DA4C7BB741E6E7A5EF8A4-8078

1 Fault Found:

00361 - Heater Element for Auxiliary Heater (Z35)

014 - Defective

7 Februarie, 2018

Asa, si care este intrebarea ?

7 Februarie, 2018

Cauze?

Modificat 7 Februarie, 2018 de janjean

7 Februarie, 2018

On 2/4/2018 at 4:41 PM, pronet said:

Parerea mea-bujia. Baga unitatea in test-dimineata-si vezi in blocurile de masura pana unde duce bujia. Eu zic ca ai "capul" calaminat si camera de ardere murdara. De acolo nu tine flacara. Beleaua e ca nu gasesti bujie separat, vine cu tot cu camera de ardere. Curatarea ei va tine max 2 ani-vn din experienta. Iar o camera noua e in jur de 950 lei. Acum iti faci calculele si vezi care varianta e mai avantajoasa ptr tine-daca tii masina inca 2 ani cel putin, ia una noua, daca nu, curatare-dar aici nu stii cat te va mai tine.

Bujia era puțin peste 40% și oscila. O luase bine in jos apoi a revenit dar tot in jos trăgea! Unde pot găsi și eu un tutorial sau câteva idei pt demontare camera de ardere?

8 Februarie, 2018

In topicul "webasto pe b6" gasesti. Este postat de mine acum vreo 2-3 ani sau mai recent de colegi.

8 Februarie, 2018

11 hours ago, janjean said:

@Florin am revenit cu diferența!

Address 09: Cent. Elect. Labels: 3C0-937-049-23-M.lbl

   Part No SW: 3C0 937 049 H HW: 3C0 937 049 H

   Component: Bordnetz-SG H37 1301

   Revision: 00H37000 Serial number: 00000003430606

   Coding: C0880F0700041A23000A00000F000000000959435C0000

   Shop #: WSC 00028 028 00001

   VCID: 2EA6C0B77918156267F2AB-807A

   Subsystem 1 - Part No: 3C1 955 119 Labels: 1KX-955-119.CLB

   Component: Wischer VW461 012 0503

   Coding: 00065493

   Shop #: WSC 00028

   Subsystem 2 - Component: Fehler Lin-Slave 02

2 Faults Found:

02071 - Local Databus

004 - No Signal/Communication

   Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 4

Mileage: 253310 km

Time Indication: 0

   Freeze Frame:

ON

Voltage: 12.10 V

ON

ON

OFF

OFF

OFF

01520 - Rain and Light Recognition Sensor (G397)

004 - No Signal/Communication

   Freeze Frame:

Fault Status: 01100100

Fault Priority: 2

Fault Frequency: 1

Reset counter: 4

Mileage: 253310 km

Time Indication: 0

   Freeze Frame:

ON

Voltage: 12.10 V

ON

ON

OFF

OFF

OFF

-------------------------------------------------------------------------------

Address 15: Airbags Labels: 3C0-909-605.lbl

   Part No SW: 3C0 909 605 F HW: 3C0 909 605 F

   Component: 01 AIRBAG VW8 029 2421

   Revision: 08029000 Serial number: 0039USHJN8KS

   Coding: 0012337

   Shop #: WSC 00028 028 00001

   VCID: 29AC33AB40F6725AB2A090-807C

   Subsystem 1 - Serial number: 6332MSME0B131E56

   Subsystem 2 - Serial number: 6342MSME0B4E726C

Subsystem 3 - Serial number: 6351HTS65CHQ0L13

   Subsystem 4 - Serial number: 6361HTS614F2DLI2

   Subsystem 5 - Serial number: 6371VTS6SH9Q8K83

   Subsystem 6 - Serial number: 00000000000000000

1 Fault Found:

01218 - Side Airbag Igniter; Passenger Side (N200)

001 - Upper Limit Exceeded - MIL ON

-------------------------------------------------------------------------------

Address 46: Central Conv. Labels: 3C0-959-433-46.clb

   Part No SW: 3C0 959 433 HW: 3C0 959 433

   Component: KSG PQ46 ELV 038 0434

   Revision: 00038000 Serial number: VWZCZ000000000

   Coding: 00900A0801864E763802941570084F0E703C80

   Shop #: WSC 00028 028 00001

   VCID: 672875939662842A643426-8032

   Subsystem 1 - Part No: 1K0 951 605 C

   Component: LIN BACKUP HORN H03 1301

   Subsystem 2 - Component: NGS n.mounted

   Subsystem 3 - Component: IRUE n.mounted

1 Fault Found:

01134 - Alarm Horn (H12)

000 - -

   Freeze Frame:

Fault Status: 01100000

Fault Priority: 4

Fault Frequency: 1

Reset counter: 4

Mileage: 253310 km

Time Indication: 0

Date: 2000.00.00

Time: 09:32:16

-------------------------------------------------------------------------------

Address 53: Parking Brake Labels: 3C0-907-801-53.clb

   Part No SW: 3C0 907 801 G HW: 3C0 907 801 G

   Component: EPB VD8HC005 013 0005

   Revision: 013

   Coding: 0000011

   Shop #: WSC 00442 210 91419

   VCID: 26B6389751E85D229F42F3-8072

1 Fault Found:

02844 - Lamp for Automatic Parking Function

009 - Open or Short to Ground - MIL ON

   Freeze Frame:

Fault Status: 11101001

Fault Priority: 4

Fault Frequency: 254

Reset counter: 2

Time Indication: 0

   Freeze Frame:

Voltage: 9.83 V

Count: 64

-------------------------------------------------------------------------------

Address 56: Radio Labels: 1K0-035-1xx-56.lbl

   Part No: 1K0 035 186 AF

   Component: Radio GR0 035 0034

   Revision: 0003505S Serial number: VWZ2Z2H1131911

   Coding: 0020400

   Shop #: WSC 00028 028 00001

   VCID: 6A2E0CA78570B9427B1AC7-803E

3 Faults Found:

00856 - Radio Antenna

011 - Open Circuit

00872 - Bass Speaker Rear Left (R15)

011 - Open Circuit

00873 - Bass Speaker Rear Right (R17)

011 - Open Circuit

-------------------------------------------------------------------------------

Address 7D: Aux. Heat Labels: 1K0-963-235.lbl

   Part No SW: 1K0 963 235 E HW: 1K0 963 235 E

   Component: PTC-Element 0404

   Revision: 00800000 Serial number:

   Shop #: WSC 00000 000 00000

   VCID: 2DA4C7BB741E6E7A5EF8A4-8078

1 Fault Found:

00361 - Heater Element for Auxiliary Heater (Z35)

014 - Defective

Masina are xenoane chinezesti pe ea ? daca da, sa le dati jos - daca nu, trebuie verificat ce e cu senzorul de lumina.

Masina are buton autohold ?

Z35 - rezistenta auxiliara - de reparat.

Difuzoarele la usile spate...sunt ? daca sunt, necesita inlocuire.

Verificat daca receptioneaza bine radio, avand in vedere eroarea de antena

8 Februarie, 2018

Fără xenoane, a avut autohold dar buton nu are. Funcția merge! Difuzoare nu avea dar a pus ieri. Merci mult!

8 Februarie, 2018

34 minutes ago, F l o r i n said:

~~Masina are xenoane chinezesti pe ea ? daca da, sa le dati jos - daca nu,~~ trebuie verificat ce e cu senzorul de lumina.

Masina are buton autohold ? pana nu ii pui buton, ramane cu acea eroare

Z35 - rezistenta auxiliara - de reparat.

~~Difuzoarele la usile spate...sunt ? daca sunt, necesita inlocuire.~~

Verificat daca receptioneaza bine radio, avand in vedere eroarea de antena

cam astea au ramas.....

8 Februarie, 2018

Buna ziua , vreo idee de la ce vine eroarea ?

8 Februarie, 2018

Valva blow off defecta. Verifica intai cablajul ei.E pe turbo montata.

Modificat 8 Februarie, 2018 de spido

8 Februarie, 2018

Multumesc , sa o descopar intai (1.4 TSI 170 CP).

Scanarea cu VCDS - erori aparute

Postare recomandată

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

F l o r i n

EEXCALADE

EEXCALADE

Posted Images

Sergiu Cristian

Link către comentariu

Distribuie pe alte siteuri

ionut.vidrighin

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

ionut.vidrighin

Link către comentariu

Distribuie pe alte siteuri

Al Bundy

Link către comentariu

Distribuie pe alte siteuri

ionut.vidrighin

Link către comentariu

Distribuie pe alte siteuri

janjean

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

Sfirlea Alex

Link către comentariu

Distribuie pe alte siteuri

vetsiv

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

mariuscj

Link către comentariu

Distribuie pe alte siteuri

pinkisor30

Link către comentariu

Distribuie pe alte siteuri

janjean

Link către comentariu

Distribuie pe alte siteuri

Al Bundy

Link către comentariu

Distribuie pe alte siteuri

janjean

Link către comentariu

Distribuie pe alte siteuri

janjean

Link către comentariu

Distribuie pe alte siteuri

pronet

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

janjean

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

Eduard Catalin Novgorodschi

Link către comentariu

Distribuie pe alte siteuri
