Scanarea cu VCDS - erori aparute

[opleistul23]

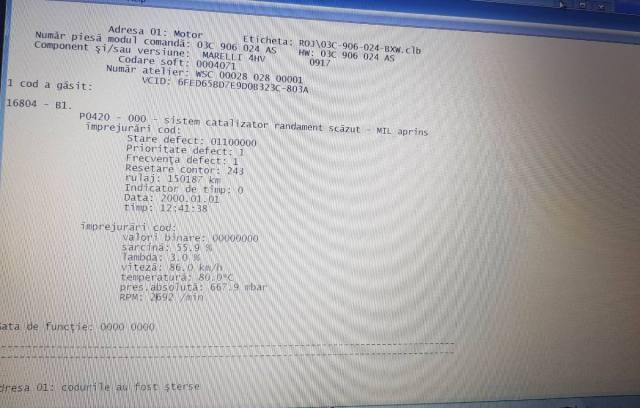

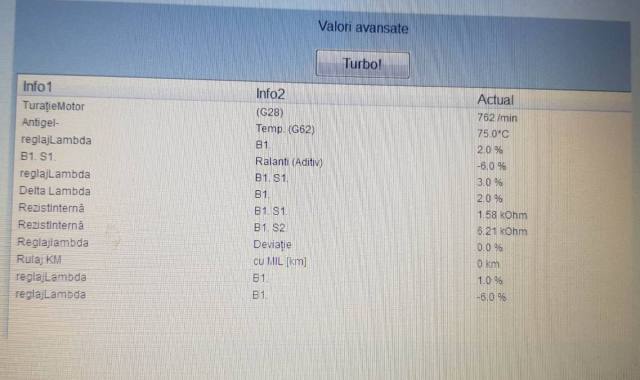

Eroare randament scazut catalizator, 1.4 16v Cod motor BUD, trebuie schimbat catalizatorul ? Nu scoate fum si merge normal. La ralantii da cateva rateuri subtile.

[spido]

In general da,este vb de un catalizator topit/spart.

[clau13]

Va salut! ieri cand sa plec de la servici mi-a aparut in bord abs, esp volan si beepuia. Am facut o scanare cu vcds si mi-a dat urmatoarele:

4 Faults Found: 005488 - Engine Start Blocked by Immobilizer P1570 - 000 - - Intermittent Freeze Frame: Fault Status: 00100000 Fault Priority: 1 Fault Frequency: 13 Reset counter: 255 Mileage: 236955 km Time Indication: 0 Date: 2022.10.22 Time: 08:09:40 Freeze Frame: RPM: 903 /min Speed: 0.0 km/h Load: 0.0 % Voltage: 11.10 V Bin. Bits: 00101111 Bin. Bits: 11000000 (no units): 33.0 005712 - Powertrain Data Bus P1650 - 000 - Missing Message from Instrument Cluster - Intermittent Freeze Frame: Fault Status: 00100000 Fault Priority: 3 Fault Frequency: 33 Reset counter: 255 Mileage: 0 km Time Indication: 0 Freeze Frame: RPM: 0 /min Speed: 0.0 km/h Load: 0.0 % Voltage: 12.01 V Bin. Bits: 00101111 Torque: 0.0 Nm Torque: 351.4 Nm 005712 - Powertrain Data Bus P1650 - 000 - Missing Message from Instrument Cluster - Intermittent Freeze Frame: VCDS Self-Diagnosis Log Wednesday,22,February,2023,12:05:29:00009 Page 3 VIN: License Plate: Fault Status: 00100000 Fault Priority: 3 Fault Frequency: 33 Reset counter: 255 Mileage: 0 km Time Indication: 0 Freeze Frame: RPM: 0 /min Speed: 0.0 km/h Load: 0.0 % Voltage: 12.01 V Bin. Bits: 00101111 Torque: 0.0 Nm Torque: 351.4 Nm 005748 - Powertrain Data Bus P1674 - 000 - Implausible Message from Instrument Cluster - Intermittent Freeze Frame: Fault Status: 00100000 Fault Priority: 3 Fault Frequency: 1 Reset counter: 255 Mileage: 0 km Time Indication: 0 Freeze Frame: RPM: 2163 /min Speed: 35.0 km/h Load: 39.2 % Voltage: 13.98 V Bin. Bits: 11101000 Torque: 236.7 Nm Bin. Bits: 0 00 0 Readiness: 0 0 0 0 0 ------------------------------------------------------------------------------- VCDS Self-Diagnosis Log Wednesday,22,February,2023,12:05:29:00009 Page 4 VIN: License Plate: Address 03: ABS Brakes Labels:. 3C0-614-109-C4.clb Part No SW: 3C0 614 109 K HW: 3C0 614 109 D Component: J104 C4 440 V2 0005 Revision: --020--- Serial number: 00000775119470 Coding: 0000267 Shop #: WSC 39721 123 57954 VCID: 2643439F91E704B649-8072 2 Faults Found: 01317 - Control Module in Instrument Cluster (J285) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 27 Reset counter: 76 Mileage: 0 km Time Indication: 0 Freeze Frame: Speed: 0.0 km/h Hex Value: 0x0000 Voltage: 11.75 V Bin. Bits: 00011111 Count: 152 00778 - Steering Angle Sensor (G85) 005 - No or Incorrect Basic Setting / Adaptation Freeze Frame: Fault Status: 00100100 Fault Priority: 3 Fault Frequency: 27 Reset counter: 76 Mileage: 0 km Time Indication: 0 ------------------------------------------------------------------------------- Address 08: Auto HVAC Labels: 1K0-820-047.lbl Part No SW: 1K0 820 047 GA HW: 1K0 820 047 GA Component: Climatic PQ35 141 0909 Revision: 00141027 Serial number: 00000000000000 Shop #: WSC 00000 000 00000 VCID: 69D908A34079EBCEA4-803C 1 Fault Found: 01317 - Control Module in Instrument Cluster (J285) 004 - No Signal/Communication - Intermittent ------------------------------------------------------------------------------- VCDS Self-Diagnosis Log Wednesday,22,February,2023,12:05:29:00009 Page 5 VIN: License Plate: Address 15: Airbags Labels: 3C0-909-605.lbl Part No SW: 3C0 909 605 M HW: 3C0 909 605 M Component: 0B AIRBAG VW8 032 2522 Revision: 12032000 Serial number: 003B1P9BA65 Coding: 0012354 Shop #: WSC 05311 000 00000 VCID: 306FA5C7A3235A06A3-8064 Subsystem 1 - Serial number: 6332MSME170F1A29 Subsystem 2 - Serial number: 6342MSME187C4F1E Subsystem 3 - Serial number: 6351HTS65JHS9RL6 Subsystem 4 - Serial number: 6361HTS65JH06AE6 Subsystem 5 - Serial number: 00000000000000000 Subsystem 6 - Serial number: 00000000000000000 1 Fault Found: 01317 - Control Module in Instrument Cluster (J285) 004 - No Signal/Communication - Intermittent ------------------------------------------------------------------------------- Address 16: Steering wheel Labels: 3C0-953-549-SW20.lbl Part No SW: 3C0 953 549 L HW: 3C0 953 549 L Component: Lenksäulenmodul 006 0010 Revision: 00006000 Serial number: 3C9953507BK Coding: 0000014 Shop #: WSC 05311 000 00000 VCID: 356194D35C417F2EF0-8060 No fault code found. ------------------------------------------------------------------------------- VCDS Self-Diagnosis Log Wednesday,22,February,2023,12:05:29:00009 Page 6 VIN: License Plate: Address 17: Instruments Labels: 3C0-920-xxx-17.lbl Part No SW: 3C0 920 871 E HW: 3C0 920 871 E Component: KOMBIINSTRUMENT VD1 1216 Revision: V0002000 Serial number: 00000000000000 Coding: 0007105 Shop #: WSC 01286 386 08256 VCID: 2643439F91E704B649-8072 10 Faults Found: 01299 - Diagnostic Interface for Data Bus (J533) 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 2 Fault Frequency: 8 Reset counter: 116 Mileage: 0 km Time Indication: 0 01316 - ABS Control Module 008 - Implausible Signal - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 2 Fault Frequency: 1 Reset counter: 255 Mileage: 0 km Time Indication: 0 00381 - Databus Instrument Cluster 014 - Defective - Intermittent Freeze Frame: Fault Status: 00101110 Fault Priority: 2 Fault Frequency: 38 Reset counter: 116 Mileage: 0 km Time Indication: 0 00474 - Control Module for Immobilizer 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 36 Reset counter: 116 Mileage: 0 km Time Indication: 0 00457 - Central Electronics Control Module / BCM (J519) 008 - Implausible Signal - Intermittent Freeze Frame: VCDS Self-Diagnosis Log Wednesday,22,February,2023,12:05:29:00009 Page 7 VIN: License Plate: Fault Status: 00101000 Fault Priority: 2 Fault Frequency: 25 Reset counter: 116 Mileage: 0 km Time Indication: 0 00473 - Control Module for Elect. Park/Hand Brake (J540) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 5 Reset counter: 116 Time Indication: 0 01309 - Power Steering Control Module (J500) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 5 Reset counter: 116 Time Indication: 0 01314 - Engine Control Module 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 4 Reset counter: 116 Time Indication: 0 01316 - ABS Control Module 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00101000 Fault Priority: 2 Fault Frequency: 1 Reset counter: 255 Mileage: 0 km Time Indication: 0 01321 - Control Module for Airbags (J234) 004 - No Signal/Communication - Intermittent Freeze Frame: Fault Status: 00100100 Fault Priority: 2 Fault Frequency: 2 Reset counter: 116 Time Indication: 0

Va rog un ajutor! imi cer scuze de cum s-a postat, am luat din pdf

[F l o r i n]

Ataseaza altfel scanarea. E greu de citit asa

[clau13]

claud.pdf

Atasez aici acel pdf. Multumesc mult pentru implicare.

Modificat 23 Februarie, 2023 de clau13

[spido]

Pare ca ai o problema cu ceasurile de bord. Trebuie inspectate, cablaj,conector,pini..



[vw2016]

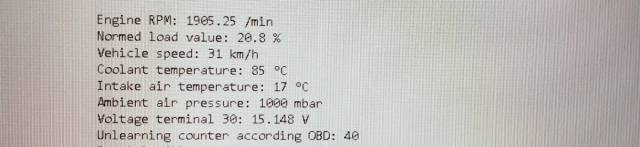

Salutare! Am și eu o eroare pe care nu o înțeleg, va rog dacă ma puteți ajuta! Este vorba de un motor 1.6 din 2016 cxxb cu 110 cai.

[F l o r i n]

Ce nu înțelegi,  legat de acesta eroare?

[ro_danny]

Va salut...postez si eu aici un "pomelnic" cu erori.... poate ma ajutati si pe mine sa le deslusesc.

Mentionez ca e vb de o skoda octavia 3 5E3 din 2016....motor 2.0 TDI cutie manuala, 150CP



Address 01: Engine Labels: None
Control Module Part Number: 04L 906 026 BN HW: 04L 907 309 R
Component and/or Version: R4 2,0L EDC H23 1197
Software Coding: 01190012043401090000
Work Shop Code: WSC 73430 031 00000
ASAM Dataset: EV_ECM20TDI01104L906026BN 002002 (SK37)
ROD: EV_ECM20TDI01104L906026BN_002.rod
VCID: 77ABEBC16F4EBA6396B-8022


4986 - Cylinder 3 Glow Plug Circuit (Q12)
P0673 00 [237] - Electrical Fault
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 25
Mileage: 164996 km
Date: 2023.02.03
Time: 12:12:32
Engine RPM: 992.00 /min
Normed load value: 28.2 %
Vehicle speed: 0 km/h
Coolant temperature: 5 °C
Intake air temperature: 8 °C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 13.400 V
Unlearning counter according OBD: 40
Electric auxiliary heater: shut-off conditions-Bits 0-7: 0
Electric auxiliary heater: shut-off conditions-Bits 0-7: 130
Electric auxiliary heater: relay activation-Bits 0-7: 0
Pre-glow time: 2500 ms
Glow status-Bits 0-7: 0
Glow status-Bits 0-7: 0
Glow cycles above temperature threshold-Bits 0-7: 0
Glow cycles above temperature threshold-Bits 0-7: 1
Glow cycles below temperature threshold-Bits 0-7: 0
Glow cycles below temperature threshold-Bits 0-7: 3
Outside temperature sensor 1: B1: raw value: 5.0 °C
Readiness: 1 1 0 0 0


========================================

Address 08: Auto HVAC Labels: Redir Fail!
Control Module Part Number: 5E0 907 044 AG HW: 5E0 907 044 AG
Component and/or Version: Climatronic H04 1601
Software Coding: 01010104002110011005000100101002
Work Shop Code: WSC 73430 031 00063
ASAM Dataset: EV_ACClimaBHBVW37X 006142 (SK37)
ROD: EV_ACClimaBHBVW37X_006_SK37.rod
VCID: 6A8DC2B52CFC178B195-803E
1 Fault Found

1048835 - Functionality limited due to Engine Control Module
P1719 00 [008] - -
[PTC-Reduzierung durch MSG]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 38
Mileage: 165333 km
Date: 2023.02.08
Time: 11:17:49
Voltage terminal 30: 13.6 V
Auxiliary heater: in stages-Enabling for auxiliary heater
operation: Enabling stage 3
Auxiliary heater: in stages-Act.val.: 2
Auxiliary heater: in stages-Target value: 3
Auxiliary heater: in stages-Specified value for control: 3

========================================

Address 17: Instruments Labels: Redir Fail!-SRI3
Control Module Part Number: 5E0 920 751 C HW: 5E0 920 751 C
Component and/or Version: KOMBI 305 8311
Software Coding: 07A402002980000801082A001000000000000000
Work Shop Code: WSC 73430 031 00000
ASAM Dataset: EV_DashBoardVDDMQBAB 009051 (SK37)
ROD: EV_DashBoardVDDMQBAB_009_VW26.rod
VCID: 2517F1898562F8F3F47-8070
2 Faults Found


16777018 - Function Restricted due to Interrupted Communications
U1110 00 [008] - -
[BAP_Audio_0x31 keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 254
Reset counter: 71
Mileage: 133591 km
Date: 2021.11.11
Time: 13:20:10
16777020 - Function Restricted due to Interrupted Communications
U1110 00 [008] - -
[BAP_TEL_0x28 keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 254
Reset counter: 72
Mileage: 133591 km
Date: 2021.11.11
Time: 13:20:10

====================================
Address 19: CAN Gateway Labels: Redir Fail!
Control Module Part Number: 5Q0 907 530 AM HW: 5Q0 907 530 F
Component and/or Version: GW MQB High 128 1265
Software Coding:
030100345F087300EB00024A080F00010001050000000000000000000000
Work Shop Code: WSC 73430 790 00000
ASAM Dataset: EV_GatewLear 013020 (SK37)
ROD: EV_GatewLear_013.rod
VCID: 7CA1F4ED5668993BFB9-8028
1 Fault Found


131699 - Control unit for information electronics 1
U1054 00 [009] - No Communication
[Timeout Knoten 0x73 / 5F - Steuergerät für Informationselektronik 1]
Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 240
Mileage: 164996 km
Date: 2023.02.02
Time: 20:38:04
Terminal 30 power supply: 13.2 V
Terminal 15: On

============================================
Address 52: Door Elect, Pass. Labels: None
Control Module Part Number: 5Q4 959 592 E HW: 5Q4 959 592 B
Component and/or Version: TSG BFS 010 0032
Software Coding: 00110120D000040000001100
Work Shop Code: WSC 57388 002 1048576
ASAM Dataset: EV_DCUPasseSideEWMAXCONT 006001 (SK37)
ROD: EV_DCUPasseSideEWMAXCONT.rod
VCID: 46D55605582413EBDDD-8012
3 Faults Found

65593 - Switch for Central Locking
B122D 29 [009] - Signal Implausible
Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 33
Reset counter: 19
Mileage: 165412 km
Date: 2023.02.09
Time: 17:49:23
65579 - Motors for Central Locking
B122B 11 [009] - Short to Ground
Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 2
Reset counter: 3
Mileage: 165361 km
Date: 2023.02.08
Time: 15:05:33
65578 - Motors for Central Locking
B122B 12 [008] - Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 14
Reset counter: 71
Mileage: 165486 km
Date: 2023.02.10
Time: 20:44:47

===============================================

Address 52: Door Elect, Pass. Labels: None
Control Module Part Number: 5Q4 959 592 E HW: 5Q4 959 592 B
Component and/or Version: TSG BFS 010 0032
Software Coding: 00110120D000040000001100
Work Shop Code: WSC 57388 002 1048576
ASAM Dataset: EV_DCUPasseSideEWMAXCONT 006001 (SK37)
ROD: EV_DCUPasseSideEWMAXCONT.rod
VCID: 46D55605582413EBDDD-8012
3 Faults Found

65593 - Switch for Central Locking
B122D 29 [009] - Signal Implausible
Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 33
Reset counter: 19
Mileage: 165412 km
Date: 2023.02.09
Time: 17:49:23
65579 - Motors for Central Locking
B122B 11 [009] - Short to Ground
Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 2
Reset counter: 3
Mileage: 165361 km
Date: 2023.02.08
Time: 15:05:33
65578 - Motors for Central Locking
B122B 12 [008] - Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 14
Reset counter: 71
Mileage: 165486 km
Date: 2023.02.10
Time: 20:44:47

===============================
Address 52: Door Elect, Pass. Labels: None
Control Module Part Number: 5Q4 959 592 E HW: 5Q4 959 592 B
Component and/or Version: TSG BFS 010 0032
Software Coding: 00110120D000040000001100
Work Shop Code: WSC 57388 002 1048576
ASAM Dataset: EV_DCUPasseSideEWMAXCONT 006001 (SK37)
ROD: EV_DCUPasseSideEWMAXCONT.rod
VCID: 46D55605582413EBDDD-8012
Fault Codes have been Erased

3 Faults Found
65593 - Switch for Central Locking
B122D 29 [009] - Signal Implausible
Confirmed - Tested Since Memory Clear
65579 - Motors for Central Locking
B122B 11 [009] - Short to Ground
Confirmed - Tested Since Memory Clear
65578 - Motors for Central Locking
B122B 12 [008] - Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 14
Reset counter: 71
Mileage: 165486 km
Date: 2023.02.10
Time: 20:44:47
=========================================





PArtea cu Bujia cam deslusit-o....nasol e ca e bujie cu senzor de presiune si inteleg ca se schima cu totul....si e cam o gramada de banuti.....dar asta este....

La restul sa vedem ce putem deslusi.

Va multumesc anticiapt.

SI felicitari pentru cei care stiu si ii ajuta pe cei ca mine.....

[spido]

Da,bujia nr 3 cu senzor pare a fi...dar repeta scanarea si cu alta interfata. Asta te poate pacali. In plus...ceva probleme pe la broastele usilor,o necomunicare cu interfata mrdia(radio,cd,navi,telefon). Sterge erorile si refa scanarea. Vezi ce ramane si nu se sterge.

[ro_danny]

@spido Nu mai am Radio Bolero cu care a venit... am o navigatie Android...china... poate fi de la asta?

Cu vroasca am problema cu usa dreapta fata....dar mi-a zis cineva ca sa verific cablurile....insa....nu prea stiu cum sa le verific.... ca e un manunchi mare de fire

Oare e broasca pe bune sau pot fi alte probelme?

Am sters erorile si cam aceleasi apar....

[F l o r i n]

Da, cele legate de modul 5F infotaintment.

Pe usi...verifica codarile...ca am ceva erori acolo si banuiesc ca sunt de la codari

[spido]

Pe UȘA...ca e numai 52,acum am vazut si eu. Interfata..sau operatorul ei..

[ro_danny]

@Florin si @spido  puteti detalia la ce anume sa ma uit? Nu am ulbat si nu am codat nimic pt inchzatori....nu am acut curajul inca sa fac nimic cu testerul decat diagonza ....desi mi-ar placea sa activez cateva chestii....insa pan nu invat nu ma apuc....



am interfata VCDS ARM 429 Real HEX-V2 21.9 vers soft.

[spido]

Refa scanarea.

[F l o r i n]

9 hours ago, ro_danny said:

@Florin si @spido  puteti detalia la ce anume sa ma uit? Nu am ulbat si nu am codat nimic pt inchzatori....nu am acut curajul inca sa fac nimic cu testerul decat diagonza ....desi mi-ar placea sa activez cateva chestii....insa pan nu invat nu ma apuc....



am interfata VCDS ARM 429 Real HEX-V2 21.9 vers soft.

Interfetele clona nu sunt ceva care sa imi provoace placere la codare. Am avut N masini la reparat, in urma utilizării clonelor pt codari. Deci, cu grija.

Pana atunci, sterge toate erorile si cum ti-a recomandat si spido, fa inca o scanare completa

[ro_danny]

Ok am s revin.....intre timp am deblocat usa....cu un pic de noroc...si am deconecatat mufa de la incuietoare....o inchid manual cu blocare.....

Ca imi e frica sa nu se blocheze daca mai e conectata electric.

Refac testul si postez

[Al Bundy]

Schimba broasca.



[ro_danny]

@Al Bundyam de cand sa o comand.... acum nu stiu daca e ok sa iau afetrmarket sau una SH originala....

Ce ma puteti sfatui?

Am inteles ca sunteti  "tatic" pe domeniu.

Va multumesc pentru ajutor.

[Al Bundy]

Multumesc de aprecieri. Recomand originala. Daca este peste buget atunci una after.

[F l o r i n]

No, originala noua, in jurul la 1000 lei

Noua, aftermarket,  ceva ok....400..450 lei.

China...evita...200 lei

[Dominik2022]

Salutare,



Am un Polo din 2014 1.4tdi, am avut un impact usor (bara fata rep,grila radiator inl).

Mi-a aparut martorul AIRBAG aprins. Am incercat sa conectez cu VCDS ul da nu conecteaza la modulul AIRBAG. Am incercat cu un alt diag. Bosch KTS si mi a dat un cod de erroare U015100- Comunicatie cu unit. de control pentru airbaguri,fara comunicatie.



Ce problema poate sa fie? Puteti sa-mi ajutati cu o diagrama ca sa masor daca primeste semnal sau curent.



Multumesc





[spido]

Ce tip e masina? 6R? Cod motor?

[F l o r i n]

La sigurante te-ai uitat?

[dac_ian]

Buna. Octavia 2019 1.6 cu adblue 145km și regenerarea la 300km .mă puteți ajuta. Mersi
