Codari VCDS (Tiguan 5N & 5N2)

[adiboy]

Buna ziua, am doua nelamuriri referitoare lumini si service reminder. 1) Pozitia Auto se poate configura din VCDS ca luminile de intalnire sa stea permanent aprinse indiferent de intensitatea luminii? Si cele din spate (stopurile) sa se aprinda singure cand se lasa seara se pot configura la reprezentanta sau cu ajutorul Vag-com?

Problema nr. 2 consta imposibilitatea de a reseta service reminder-ul din BC acesta sa fie setat de cei de la service sa apara cand ii vine timpul fara sa permita soferului sa reseteze cand vrea el cati km mai are pana la urmatoarea vizita in service. Va multumesc anticipat si felicit moderatorii pentru calitatea site-ului pentru promptitudinea si corectitudinea cu care se administreaza acesta.

Masina e un Tiguan din 2011. Sport & Style

[andrei_221]

1. poti configura pragurile de luminozitate la care lucreaza functia AUTO, dar nu poti modifica actiunile acesteia (respectiv sa lase aprinse luminile de zi). Cand detecteaza intuneric, va aprinde farurile si implicit se vor stinge luminile de zi ( sau dupa caz se reduce intensitatea  led-urilor respective)

2. cand senzoruld e lumina comanda aprinderea luminilor, acestea se aprind automat pe pozitii si faza scurta (deci se aprind si pozitiile spate)

3. Nu poti bloca resetarea service reminder-ului din tester. da mai multe detalii ca nu stiu la ce te referi

[adiboy]

BC-ul are functia de a reseta oricand km de service adica sa o ia iar de la 15000 sau 365 zile. Ma intereseaza daca se poate bloca sa nu mai poata soferul face asta ci doar in service

[andrei_221]

asta nu se poate

Modificat 23 Iulie, 2014 de andrei_221

[vartolomei_alex]

Salut! Am un tiguan 2.0 tdi de 170 cp din 2010, tocmai ce am facut revizia si priceputii de la service au uitat sa imi reseteze calculatorul, cum se procedeaza?? Trebuie sa ma joc cu contactul si butoanele din bord dar nu prea stiu ordinea.. Ms!

[wassupady]

@vartolomei_alex: doar daca legi un calculator la masina, resetarea se face prin soft. (ex. vcds)

[Al Bundy]

Salut! Am un tiguan 2.0 tdi de 170 cp din 2010, tocmai ce am facut revizia si priceputii de la service au uitat sa imi reseteze calculatorul, cum se procedeaza?? Trebuie sa ma joc cu contactul si butoanele din bord dar nu prea stiu ordinea.. Ms!

Ai maxidot (CB plus) ?

Intri la service si dai reset.

[grp]

Am gasit asta poate intereseaza pe cineva:

Sursa:  http://tiguanclub.com/vcds/

"Below is a list of custom coding options through VCDS (requires the Ross-Tech Micro-CAN adapter).

The first place that delivers the biggest BFB or return on investment (once you’ve purchased a VCDS cable from Ross-Tech) is to access the full Convenience Settings via MODULE 9 – Central Electronics.

In total there are 30 Bytes/sub-menus (0 – 29) and each with various Bits/Check boxes which serve to turn options ‘on’ or ‘off’.

IMPORTANT TIP:
Access to this MODULE 9 is quite temperamental! Sometimes you may see a “no response from controller” message appear on your screen, but with no such problem with other modules during the same session. Ross-Tech have suggested that it is a VW gremlin that puts this module to sleep, whenever it detects that the doors are locked.

Solution is to just lock, unlock your doors a few times (using driver side central lock buttons) and finally end with the doors unlocked.

Officially there is a Ross-Tech Coding Manual for the Tig:
http://wiki.ross-tech.com/wiki/index.php/VW_Tiguan_(5N)

However it is incomplete and most entries refer to coding from other VAG vehicles."

[Folding Mirror]

Select STG 46

STG Long Coding -> Function 07

Byte 06

Bit 7 Activate

[Electronic Hand Break Activation]

Select STG 53

STG Adaptation -> Function 10

Channel 04

New Value 0

[XDS Activation]

Select STG 03

STG Adaptation -> Function 10

Channel 67

New Value 1

[Rain Lights]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

RLS Subsystem

Byte 0

Bit 1 Activate

[Defogger Timing]

Select STG 09 (vehicle power)

STG Adaptation -> Function 10

Channel 03

Adjust Value Between 1-254

[US Parking Lights]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 07

Bit 0 Activate

[Sunroof Opening With Remote Control]

Select STG 46

STG Long Coding -> Function 07

Byte 08

Bit 2 Activate

Bit 6 Deactivate

Select STG 4F

STG Long Coding -> Function 07

Byte 01

Bit 0 Deactivate

[LED Plate Bulb Error Deleting]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 23

Bit 6 Activate

[Tear Wiping Activation]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 21

Bit 4 Activate

[Disabling Rear Wipe in Rear Drive]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 21

Bit 2 Deactivate

[Headlight Wash Deactivation]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 20

Bit 5 Deactivate

[Unlocking Door when Stop the Car ]

Select STG 46

STG Adaptation -> Function 10

Channel 05

Value = 1

[Locking Door up to 15 km/h]

Select STG 46

STG Adaptation -> Function 10

Channel 04

Value = 1

[Rain Close]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 4

Bit 5-6 Activate

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

RLS Sub Selection

Byte 4

Bit 2 Activate

[Emergency Break/Flashing Lights]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 16

Bit 1 Activate

Bit 2 Activate

Byte 27

Bit 5 Activate

[Comfort Blinker Cycle]

Select STG 09 (vehicle power)

STG Adaptation -> Function 10

Channel 31

Adjust Value Between 1-5.

[Hill Hold Assist Duration]

Select STG 03 (brake electronics)

STG adjustment -> function 10

Select Berganfahrassistent

Adjust as you wish. (default: Normal)

[Pointer Test]

Select STG 17 (switchboard)

STG long coding -> function 07

Byte 1

Bit 0 Activate

[Seat Belt Warning]

Select STG 17 (dash panel insert)

STG Long Coding -> Function 07

Byte 1

Bit 1 Deactivate

[Footwell Lighing Adjustment]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 20

Bit 0 Activate

[Highway Lights at 140 km/h]

Select STG 09 (vehicle power)

STG Long Coding RLS -> Function 07

Byte 0

Bit 0 Activate

[Cornering Fog Light Activation]

Select STG 09 (vehicle power)

STG Long Coding -> Function 07

Byte 14

Bit 7 Activate

Byte 12

Bit 4 Activate

Modificat 29 Februarie, 2016 de grp

[aurica]

este chiatr ce trebuia. poate ar mai trebuii adaugat cate ceva daca mai stie cineva. o sa ma uit si eu peste codarile mele sa vad ce am plus minus.

[unchiu]

Salut.

As dori sa activez Lane Assist la un Tiguan 2012 2.0. Am vazut ca are o camera sub oglinda, are senzori de lumina si de ploaie. Camera nu stiu daca e buna sau nu pentru Lane Assist, de aceea postez o scanare poate cineva mai priceput isi da o parere. Multumesc.



Sunday,27,August,2017,14:48:58:49450
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 16.8.0.3
Data version: 20160803 DS255
www.Ross-Tech.com

VIN: WVGZZZ5NZCW564330   License Plate:
Mileage: 131300km-81586mi   Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 5N (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 20 22 25 37 42 44 46 4C 52 53
          56 62 69 72 77

VIN: WVGZZZ5NZCW564330   Mileage: 131300km-81586miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
20-High Beam Assist. -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Malfunction 1010
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
4C-Tire Pressure II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: Malfunction 1010
62-Door, Rear Left -- Status: OK 0000
69-Trailer -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFFB)       Labels: 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 LG    HW: 03L 907 309 AD
   Component: R4 2.0l TDI   H25 9979
   Revision: 42H25---    Serial number: 00000000000000
   Coding: 00250012043600080000
   Shop #: WSC 49212 183 00000
   ASAM Dataset: EV_ECM20TDI01103L906018LG 003013
   ROD: EV_ECM20TDI01103L906018LG.rod
   VCID: 7AFB988EFD1E7392EE-802E

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743)       Labels: 0BH-927-711.clb
   Part No SW: 0BH 300 011 K    HW: 0BH 927 711 C
   Component: DSG DQ500-7A  H05 1706
   Revision: 00H05V01
   Coding: 0014
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_TCMDQ500021 001001
   ROD: EV_TCMDQ500021_VW36.rod
   VCID: 2A5B68CE4D3E0312DE-807E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 5N0-614-109-C6.clb
   Part No SW: 5N0 614 109 AP    HW: 5N0 614 109 AP
   Component: J104   C6 450M VD94 0005
   Revision: --H07---    Serial number: 00000005248245
   Coding: 0005441
   Shop #: WSC 01357 011 00200
   VCID: 79F987823018788AE7-802C

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb
   Part No SW: 5K0 907 044 ES    HW: 5K0 907 044 ES
   Component: Climatronic   H18 1112
   Revision: 00001004
   Coding: 0000004002
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Climatronic A01010
   ROD: EV_ClimaAutoBasis_VW36.rod
   VCID: 000FEA669BC22942A0-8054

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb
   Part No SW: 5K0 937 086 M    HW: 5K0 937 086 M
   Component: BCM PQ35 M    021 0064
   Revision: BC021001
   Coding: 40180A3B80251AC0400800C8340081E44B510088736D8560648040000040
   Shop #: WSC 01357 011 00200
   VCID: 3E73549EA9B69FB292-806A

   Subsystem 1 - Part No: 5N1 955 119 A  Labels: 1KX-955-119.CLB
   Component: WWS 100112 03  32  0010
   Coding: 009795

   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 221211 05  54  0403
   Coding: 02304D

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791)       Labels: 3AA-919-475.clb
   Part No SW: 3AA 919 475 L    HW: 4H0 919 475 E
   Component: PARKHILFE PLA H06 0025
   Revision: --------    Serial number: 56261202000889
   Coding: 158103
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_EPHVA2C000000000 002008
   ROD: EV_EPHVA2C000000000_VW36.rod
   VCID: 44872676CF5AF562C4-8010

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 5N0-959-655.lbl
   Part No SW: 5N0 959 655 R    HW: 5N0 959 655 R
   Component: J234__206 VW10 HI   1918
   Revision: 23016000    Serial number: 003K0PSGYPF.
   Coding: 0012342
   Shop #: WSC 01357 011 00200
   VCID: 4C970E562F0A3D220C-8018

   Subsystem 1 - Serial number: 6332MTS650433511

   Subsystem 2 - Serial number: 6342MTS661923511

   Subsystem 3 - Serial number: 6351HTS6G1TLV9KR

   Subsystem 4 - Serial number: 6361HTS6TH1FV9KR

   Subsystem 5 - Serial number: 00000000000000000

   Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels: 5K0-953-569.clb
   Part No SW: 5K0 953 501 AT    HW: 5K0 953 569 H
   Component: LENKS.MODUL   014 0140
   Revision: FF010040    Serial number: 20120121200004
   Coding: 199A140000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_VW360SteerWheelUDS A03004
   ROD: EV_VW360SteerWheelUDS.rod
   VCID: 7CF79E96F72A4DA2FC-8028

   Multifunction steering wheel control module:
   Subsystem 1 - Part No SW: 5K0 959 542     HW: 5K0 959 542   Labels: 3C8-959-537.CLB
   Component: E221__MFL-TAS  H08 0010
   Coding: 830000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
   Part No SW: 5N0 920 882 C    HW: 5N0 920 882 C
   Component: KOMBI         H04 0417
   Serial number: 00000000000000
   Coding: 111F01
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_VW25.rod
   VCID: 336575AA9AF442DA6D-8066

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 M    HW: 1K0 907 951
   Component: J533  Gateway H42 1623
   Revision:   H42       Serial number: 201211F6001985
   Coding: 356002
   Shop #: WSC 01357 011 00200
   VCID: 3A7B588EB59EB392AE-806E

2 Faults Found:
01300 - Control Module for Navigation with CD-Rom (J401)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 254
                    Reset counter: 188
                    Mileage: 130018 km
                    Time Indication: 0
                    Date: 2017.07.22
                    Time: 13:58:19

01304 - Radio
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 254
                    Reset counter: 188
                    Mileage: 130018 km
                    Time Indication: 0
                    Date: 2017.07.22
                    Time: 13:58:19

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels: 8K0-857-511.clb
   Part No SW: 5K0 857 511 C    HW: 8P0 857 511 C
   Component: FLA           H04 0006
   Revision: AA001002
   Coding: 0101196B74745D545420363E00
   Shop #: WSC 01357 011 00200
   VCID: 2E5364DE79D66F3202-807A

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD        Labels: 0AY-907-554-V1.clb
   Part No SW: 0AY 907 554 E    HW: 0AY 907 554 E
   Component: Haldex 4Motion      0043
   Coding: 0000005
   Shop #: WSC 00000 000 00000
   VCID: 4D910352D410342A1B-8018

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0417
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6ADBA8CE8DBEC3121E-803E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels: 3C0-959-70X-GEN4.clb
   Part No SW: 5N0 959 701 F    HW: 3C0 959 793 B
   Component: TUER-SG FT    002 0503
   Revision: 13110009    Serial number: 0004113965
   Coding: 0000BC
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
   ROD: EV_TSGFPQ35BRFVW46X.rod
   VCID: 387F42868392A18258-806C

   Slave Driver:
   Subsystem 1 - Part No SW: 5N0 959 703 F    HW: 3C0 959 794 C  Labels: 1K0-959-70X-GEN4.CLB
   Component: J388__TSG-HL  007 1504
   Serial number: 00000006412191
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 5N1-909-144.clb
   Part No SW: 5N1 909 144 M    HW: 5N1 909 148 G
   Component: J500__APA-BS KL.287 1002
   Revision: 1AH03836    Serial number: 00113570350301
   Coding: 0000258
   Shop #: WSC 01324 020 00200
   VCID: 3C775E967FAA8DA2BC-8068

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels: 3C0-959-70X-GEN4.clb
   Part No SW: 5N0 959 702 F    HW: 3C0 959 792 B
   Component: TUER-SG BT    002 0503
   Revision: 15110009    Serial number: 0004183889
   Coding: 0000BC
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
   ROD: EV_TSGBPQ35BRFVW46X.rod
   VCID: 39794782B898B88AA7-806C

   Slave Passenger:
   Subsystem 1 - Part No SW: 5N0 959 704 F    HW: 3C0 959 795 C  Labels: 1K0-959-70X-GEN4.CLB
   Component: J389__TSG-HR  007 1504
   Serial number: 00000006388681
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake        Labels: 3AA-907-801.clb
   Part No SW: 3AA 907 801 G    HW: 3AA 907 801 G
   Component: J540 EPB4  VW-64783 0009
   Revision:   H19       Serial number: 00000000585829
   Coding: 0026157
   Shop #: WSC 01357 011 00200
   VCID: 35614BB25C805CEA43-8060

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels: 1K0-907-383-MY8.lbl
   Part No SW: 1K0 907 383 F    HW: 1K0 907 383 F
   Component: Anhaenger     H09 0100
   Revision: 3A001001    Serial number: 00008030007829
   Coding: 410D000100000000
   Shop #: WSC 01357 011 00200
   VCID: 306F7AA663E279C210-8064

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels: 7P6-035-730.clb
   Part No SW: 5K0 035 730 F    HW: 5K0 035 730 F
   Component: TELEFON       H12 2902
   Revision: 1B001001    Serial number: 00007661631421
   Coding: 0A00000000000001
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_UHVNA A01719
   ROD: EV_UHVNA.rod
   VCID: 285F92C653323102C8-807C

2 Faults Found:
9457427 - Left audio channel for speech/telephone
          B104F 13 [009] - Short to GND
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 122
                    Mileage: 130018 km
                    Date: 2017.07.22
                    Time: 13:49:13

9457171 - Right audio channel for speech/telephone
          B104E 13 [009] - Short to GND
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 122
                    Mileage: 130018 km
                    Date: 2017.07.22
                    Time: 13:49:13

End-------------------------(Elapsed Time: 04:10)--------------------------

[Andrei_72]

Camera cred ca ar putea fi si de la Adaptive Front Light System (AFS).

[unchiu]

Salut,

Cu camera m-a lamurit Andrei_72, multumesc.

Am acum alta problema. Am montat o navigatie cu Dynaudio in locul RCD510. Masina nu are Dynaudio. Am umblat la codari pana am scapat de erorile de pe navi si radio insa e una la care nu i-am dat de cap. Ma poate ajuta cineva? Multumesc.



Saturday,16,September,2017,23:28:44:49450
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 16.8.0.3
Data version: 20160803 DS255
www.Ross-Tech.com

VIN: WVGZZZ5NZCW564330   License Plate:
Mileage: 133390km-82884mi   Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 5N (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 20 22 25 37 42 44 46 4C 52 53
          56 62 69 72 77 A5

VIN: WVGZZZ5NZCW564330   Mileage: 133390km-82884miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
4C-Tire Pressure II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
69-Trailer -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFFB)       Labels: 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 LG    HW: 03L 907 309 AD
   Component: R4 2.0l TDI   H25 9979
   Revision: 42H25---    Serial number: 00000000000000
   Coding: 00250012043600080000
   Shop #: WSC 49212 183 00000
   ASAM Dataset: EV_ECM20TDI01103L906018LG 003013
   ROD: EV_ECM20TDI01103L906018LG.rod
   VCID: 7AFB988EFD1E7392EE-802E

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743)       Labels: 0BH-927-711.clb
   Part No SW: 0BH 300 011 K    HW: 0BH 927 711 C
   Component: DSG DQ500-7A  H05 1706
   Revision: 00H05V01
   Coding: 0014
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_TCMDQ500021 001001
   ROD: EV_TCMDQ500021_VW36.rod
   VCID: 2A5B68CE4D3E0312DE-807E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 5N0-614-109-C6.clb
   Part No SW: 5N0 614 109 AP    HW: 5N0 614 109 AP
   Component: J104   C6 450M VDB1 0005
   Revision: --H07---    Serial number: 00000005248245
   Coding: 0005441
   Shop #: WSC 01357 011 00200
   VCID: 79F987823018788AE7-802C

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb
   Part No SW: 5K0 907 044 ES    HW: 5K0 907 044 ES
   Component: Climatronic   H18 1112
   Revision: 00001004
   Coding: 0000004002
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Climatronic A01010
   ROD: EV_ClimaAutoBasis_VW36.rod
   VCID: 000FEA669BC22942A0-8054

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb
   Part No SW: 5K0 937 086 M    HW: 5K0 937 086 M
   Component: BCM PQ35 M    021 0064
   Revision: BC021001
   Coding: 40180A3B80251AC0400800C8340081E44B510088736D8560648040000040
   Shop #: WSC 01357 011 00200
   VCID: 3E73549EA9B69FB292-806A

   Subsystem 1 - Part No: 5N1 955 119 A  Labels: 1KX-955-119.CLB
   Component: WWS 100112 03  32  0010
   Coding: 009795

   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 221211 05  54  0403
   Coding: 02304D

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791)       Labels: 3AA-919-475.clb
   Part No SW: 3AA 919 475 L    HW: 4H0 919 475 E
   Component: PARKHILFE PLA H06 0025
   Revision: --------    Serial number: 56261202000889
   Coding: 158103
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_EPHVA2C000000000 002008
   ROD: EV_EPHVA2C000000000_VW36.rod
   VCID: 44872676CF5AF562C4-8010

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 5N0-959-655.lbl
   Part No SW: 5N0 959 655 R    HW: 5N0 959 655 R
   Component: J234__206 VW10 HI   1918
   Revision: 23016000    Serial number: 003K0PSGYPF.
   Coding: 0012342
   Shop #: WSC 01357 011 00200
   VCID: 4C970E562F0A3D220C-8018

   Subsystem 1 - Serial number: 6332MTS650433511

   Subsystem 2 - Serial number: 6342MTS661923511

   Subsystem 3 - Serial number: 6351HTS6G1TLV9KR

   Subsystem 4 - Serial number: 6361HTS6TH1FV9KR

   Subsystem 5 - Serial number: 00000000000000000

   Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels: 5K0-953-569.clb
   Part No SW: 5K0 953 501 AT    HW: 5K0 953 569 H
   Component: LENKS.MODUL   014 0140
   Revision: FF010040    Serial number: 20120121200004
   Coding: 199A140000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_VW360SteerWheelUDS A03004
   ROD: EV_VW360SteerWheelUDS.rod
   VCID: 7CF79E96F72A4DA2FC-8028

   Multifunction steering wheel control module:
   Subsystem 1 - Part No SW: 5K0 959 542     HW: 5K0 959 542   Labels: 3C8-959-537.CLB
   Component: E221__MFL-TAS  H08 0010
   Coding: 830000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
   Part No SW: 5N0 920 882 C    HW: 5N0 920 882 C
   Component: KOMBI         H04 0417
   Serial number: 00000000000000
   Coding: 111F01
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_VW25.rod
   VCID: 336575AA9AF442DA6D-8066

1 Fault Found:
13648640 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 177
                    Mileage: 133390 km
                    Date: 2017.09.16
                    Time: 23:53:02

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 M    HW: 1K0 907 951
   Component: J533  Gateway H42 1623
   Revision:   H42       Serial number: 201211F6001985
   Coding: 356002
   Shop #: WSC 01357 011 00200
   VCID: 3A7B588EB59EB392AE-806E

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels: 8K0-857-511.clb
   Part No SW: 5K0 857 511 C    HW: 8P0 857 511 C
   Component: FLA           H04 0006
   Revision: AA001002
   Coding: 0101196B74745D545420363E00
   Shop #: WSC 01357 011 00200
   VCID: 2E5364DE79D66F3202-807A

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD        Labels: 0AY-907-554-V1.clb
   Part No SW: 0AY 907 554 E    HW: 0AY 907 554 E
   Component: Haldex 4Motion      0043
   Coding: 0000005
   Shop #: WSC 00000 000 00000
   VCID: 4D910352D410342A1B-8018

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0417
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6ADBA8CE8DBEC3121E-803E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J0506)       Labels: 1T0-035-680.clb
   Part No SW: 1T0 035 680 H    HW: 1T0 035 680 H
   Component: RNS-MID       H70 4120
   Revision: AB001001    Serial number: VWZ6Z7M3260046
   Coding: 0400040000000000000C
   Shop #: WSC 01357 011 00200
   VCID: 336575AA92F442DA6D-8066

   Subsystem 1 - Part No: 1T0 919 859 C
   Component: EU East V13  8350

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels: 3C0-959-70X-GEN4.clb
   Part No SW: 5N0 959 701 F    HW: 3C0 959 793 B
   Component: TUER-SG FT    002 0503
   Revision: 13110009    Serial number: 0004113965
   Coding: 0000BC
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
   ROD: EV_TSGFPQ35BRFVW46X.rod
   VCID: 387F42868392A18258-806C

   Slave Driver:
   Subsystem 1 - Part No SW: 5N0 959 703 F    HW: 3C0 959 794 C  Labels: 1K0-959-70X-GEN4.CLB
   Component: J388__TSG-HL  007 1504
   Serial number: 00000006412191
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 5N1-909-144.clb
   Part No SW: 5N1 909 144 M    HW: 5N1 909 148 G
   Component: J500__APA-BS KL.287 1002
   Revision: 1AH03836    Serial number: 00113570350301
   Coding: 0000258
   Shop #: WSC 01324 020 00200
   VCID: 3C775E967FAA8DA2BC-8068

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels: 3C0-959-70X-GEN4.clb
   Part No SW: 5N0 959 702 F    HW: 3C0 959 792 B
   Component: TUER-SG BT    002 0503
   Revision: 15110009    Serial number: 0004183889
   Coding: 0000BC
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
   ROD: EV_TSGBPQ35BRFVW46X.rod
   VCID: 39794782B898B88AA7-806C

   Slave Passenger:
   Subsystem 1 - Part No SW: 5N0 959 704 F    HW: 3C0 959 795 C  Labels: 1K0-959-70X-GEN4.CLB
   Component: J389__TSG-HR  007 1504
   Serial number: 00000006388681
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake        Labels: 3AA-907-801.clb
   Part No SW: 3AA 907 801 G    HW: 3AA 907 801 G
   Component: J540 EPB4  VW-64783 0009
   Revision:   H19       Serial number: 00000000585829
   Coding: 0026157
   Shop #: WSC 01357 011 00200
   VCID: 35614BB25C805CEA43-8060

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506)       Labels: 1T0-035-680.clb
   Part No SW: 1T0 035 680 H    HW: 1T0 035 680 H
   Component: RNS-MID       H70 4120
   Revision: AB001001    Serial number: VWZ6Z7M3260046
   Coding: 0400040000000000000C
   Shop #: WSC 01357 011 00200
   VCID: 336575AA92F442DA6D-8066

   Subsystem 1 - Part No: 1T0 919 859 C
   Component: EU East V13  8350

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels: 1K0-907-383-MY8.lbl
   Part No SW: 1K0 907 383 F    HW: 1K0 907 383 F
   Component: Anhaenger     H09 0100
   Revision: 3A001001    Serial number: 00008030007829
   Coding: 410D000100000000
   Shop #: WSC 01357 011 00200
   VCID: 306F7AA663E279C210-8064

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels: 7P6-035-730.clb
   Part No SW: 5K0 035 730 F    HW: 5K0 035 730 F
   Component: TELEFON       H12 2902
   Revision: 1B001001    Serial number: 00007661631421
   Coding: 0A00000000000001
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_UHVNA A01719
   ROD: EV_UHVNA.rod
   VCID: 285F92C653323102C8-807C

No fault code found.

-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist
Cannot be reached

End-------------------------(Elapsed Time: 03:51)--------------------------

[Al Bundy]

care e aia ?



[unchiu]

Cea de la instrumente... inainte sa umblu la codarile navigatiei nu exista (dar aveam erori de canal dreapta fata si de microfon si a trebuit sa le modific), acum a aparut si reapare imediat dupa stergere - poate am alterat si alta codare care nu trebuia.



Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
   Part No SW: 5N0 920 882 C    HW: 5N0 920 882 C
   Component: KOMBI         H04 0417
   Serial number: 00000000000000
   Coding: 111F01
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_VW25.rod
   VCID: 336575AA9AF442DA6D-8066

1 Fault Found:
13648640 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 177
                    Mileage: 133390 km
                    Date: 2017.09.16
                    Time: 23:53:02

Modificat 17 Septembrie, 2017 de unchiu

[F l o r i n]

posibil - pune printscreen dupa long coding navigatie

[unchiu]

Am gasit buba, din greseala am activat in gateway ceva in plus:

A5-Frt Sens. Drv. Assist -- Status: OK 0000

.....

Address A5: Frt Sens. Drv. Assist
Cannot be reached

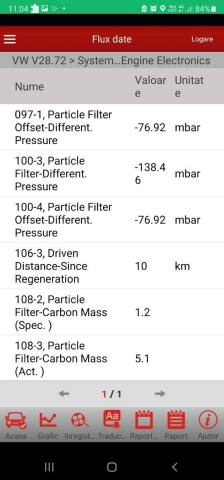

Era chiar sub Telefon, pe care il dezactivasem anterior cand am avut o navi Blaupunkt instalata, apoi am facut codarea gateway de pe telefonul mobil cu Launch si cred ca am apasat mai jos initial cand am vrut sa reactivez telefonul masinii si nu mi-am dat seama ca am schimbat codarea la A5. Am comparat acum cu un scan mai vechi si A5 nu aparea in raport.

Multumesc pentru asistenta.

[livs]

La Tiguanul din dotare am comutator pe usa pentru pliere oglinzi manual. Exista vreo setare cu VCDS pentru pliere/depliere  automata, la inchidere/deschidere din telecomanda?

Si a doua intrebare: ce semnifica "Folding Mirror" din primul post?

[F l o r i n]

Tiguanul din semnatura.... ce an este ? Oricum, ai cele mai mari sanse sa nu mearga, din pacate

[livs]

Din 2014. Am mai cautat pe net si am gasit asta: https://www.stemei.de/pages/coding/vw-tiguan-5n/spiegelanklappen-beim-zusperren.php

[pronet]

Vezi ce generatie sunt controlerele de usa. Poate merge.

[Mr. Joe]

Salut!

@livs ai reusit cu plierea oglinzilor din cheie? Merge 100%, testat, chiar daca oficial la reprezentanta spun ca nu se poate. Important este sa ai modulul de pliere oglinzi din buton pe usa.

[F l o r i n]

Da, numai ca la unele merge cu VCDS ul....la altele mai complicat, cu VCP ul si modificare de eeprom. Depinde dd calculatorul de usa, an fabricatie, etc

[livs]

On 2/25/2018 at 1:51 AM, Mr. Joe said:

Salut!

@livs ai reusit cu plierea oglinzilor din cheie? Merge 100%, testat, chiar daca oficial la reprezentanta spun ca nu se poate. Important este sa ai modulul de pliere oglinzi din buton pe usa.

Nu am mai incercat, nici nu am apucat sa pun interfata pe masina. Daca ai mai multe informatii, le astept cu placere.

[Mr. Joe]

Uite toata procedura aici, explicata pas cu pas:

Daca atunci cand introduci noua valoare iti zice " out of range" intri si iesi pana iti accepta.

[mielu80]

Salutare,

De putin timp m-am apucat sa montez si eu oglinzi pliabile electric pe Tiguan (2011).

Toate bune si frumoase pe partea dreapta a masinii,functioneaza plierea din buton,plierea din telecomanda si mirror down la mersul inapoi.

Din pacate am facut o mica greseala si pe partea stanga am luat un controller 5K0 959 793 A ce provine de la un VW Touran iar de cand l-am montat s-au inversat un pic comenzile pentru reglarea oglinzilor :

- cand misc joystikcul sus/jos oglinzile fac miscarile stanga/dreapta

- cand misc joystickul stanga/dreapta oglinzile fac miscarile sus/jos

E oarecum normal,Touranul are joystickul sus,pe usa chiar langa manerul pentru deschis usa,cu varful indreptat inspre sofer.

Bineinteles,acum ambele oglinzi (stanga si dreapta) functioneaza dupa regulile controllerului de Touran,adica inversat.

La Tiguan ca si la Golf 6,joysticul este pe manerul pe care se tine bratul stang,impreuna cu butoanele pentru geamuri,cu varful indreptat inspre plafon.

Se intampla ca cineva sa aiba  continutul din EEPROM pentru calculatorul de usa stanga fata ?

Sau cineva cu VCP sau ODIS la indemana sa-l poate copia din EEPROM ?

Codul ansamblului motor+controller este: 5N0959701C

La fel de bine ar merge si de la Golf 6,unde codul este: 5K0959701E



Multumesc.



Modificat 31 Mai, 2018 de mielu80
