Retrofit xenon OEM -Passat B7 -nota tehnica

1 Aprilie, 2013

Nota tehnica retrofit xenon OEM Passat B7:

Variabile importante :

-B7 4Motion sau tractiune fata

-B7 cu suspensie normala sau suspensie electromecanica (nu e cea mai corecta denumire dar sa o denumim precum ELSA)

-implicit discutam doar de B7 pentru circulatie pe partea dreapta!

Caz de studiu: tractiune fata cu suspensie normala.

In dezmembrari veti gasi faruri de LHD cu cod:3AB941752 (dr) si 3AB941751(stg), sunt coduri de prima echipare si au fost inlocuite de ...753.....754.

Desigur , cu 1-2 urechi rupte, astfel ca va trebuie kit de reparatie : 3AA998225 (stg) si 3AA998226 (dr), acestea contin cele trei urechi si holtzsurub cu pas special.

Bec xenon necesar : D3S, nu fac aici o discutie cum deosebim fake de origine!

Modul xenon necesar: 8K0941597C , se schimba in E si cel mai actual este B.

La SH , luati in considerare data de pe el si ultima litera pentru a anticipa ore de folosire.

Producatori: MITSUBISHI ELECTRIC si MAGNETTI MARELLI ( cele mai multe caderi pe Q3, Q5 si Facelift la Q7 le-am avut pe cele de la Magnetti!!!)

Aplicatie: Passat B7, Audi Q3,Audi Q5, Audi Q7 , dupa 2011.

Modulul de cornering necesar: 3D0941329A, il gasiti la Golf6, Passat B7, Audi Q5, Phaeton new.

Aplicatiile au fost puse pentru a va ajuta cautarea de module SH.

Pentru cei care au abilitatea necesara si timp disponibil isi pot confectiona singuri adaptorul 10-14 pini , daca nu sursa rapida este Kufatec (49euro + TVA) + 35 euro transport DHL(7-10zile).

Atentie daca luati adaptorul de 49 euro nu v-a fi complet (nu are pini can 1 , 2 si 4 alimentare modul cornering)

Daca luati pachetul de autoleveling , atunci va fi complet.

Atentie: verificati schema electrica pentru ca dispunerea pinilor nu este echivalenta de la PASSAT B6 !!!

Calculator autoleveling necesar: 5M0907357F - Z02 ( este un succesor al lui 5M0907357E ( nu am probat daca merge cu E , dar in nici un caz sub el.)

In final lucrul cel mai urat: central electric necesar: 3AA937087J-ZGG sau Z1F

Central electric de pe non -xenon nu stie sa faca dimming pana la 30% la LED DRL, atunci cand se aprind luminile.

Pentru a economisi momentan ceva bani , am cablat DRL LED din far ca fiind pozitie.

Astfel nu exista erori, led-urile din far se aprind la actionarea luminilor.

DEZAVANTAj: nu exista dimming, led-urile stau pe intensitate maxima si nu se aprind ca DRL. (dar avem minus 1600 lei la buget retrofit!!)

Aceste dezavantaje se pot elimina cu module PWM pentru modul led (factor de umplere variabil) dar din comoditate voi lua un central electric.

Pentru B7 cu suspensie normala se foloseste doar un singur senzor autolevelig spate, cod: 1K0941273N este succesor la G

La kufatec gasiti kit complet autoleveling B7, la B6 exista variata cu kit complet sau doar cablu la 89 euro , in principiu se poate folosi de la B6 si eliminare mufa senzor fata. Am precizat de aceste variante ca poate gasiti modul de autoleveling si senzor din alte surse.

Pret (poate relevant exemplul doar daca adaugati 30-40% si rezulta pret de reprezentanta sau poate nu !!!???))

Preturile sunt pe un contract propriu, pret de reprezentanta este cu tot cu TVA si este pus in paranteza-doar informatii la zi si precise)

far xenon stg sau dr - 1770lei+TVA

kit reparatie stg+ dr: 85lei+TVA (reprezentanta 130 lei)

modul autoleveling: 480lei+TVA

senzor autoleveling spate: 310lei+ TVA (reprezentanta 650lei)

central electric : 1091lei+TVA (reprezentanta 1660 lei)

modul xenon: 709lei +TVA (reprezentanta ???? odata 2170 lei altadata 1358 ????)

modul cornering: 490lei + TVA

bec xenon D3S : 318+TVA

Preturi la SH ( in RO)

-far 450-500 lei cu ureche rupta si el in stare buna

-far "perfect" citat din vanzator :250 euro la prima strigare

Nota: Luati personal farul , curat, va vedeti cat de tare este "batut de pietre". Cu pozele e cam greu, poate sa arate rau si sa fie mai bun in realitate sau invers!!!

Daca trebuie polishat , mergeti la cineva care stie sa faca bine acest lucru , stratul de protectie este foarte dur, cel mai dur l-am intalnit la A5 si A4-8K cu LED DRL, aplicati imediat folie 3M sau cel mai rau Oracal Guard 270.

-modul xenon 450-500 lei

-bec D3S foarte variabil: 200-400 lei -RISC SA O "LUATI" -100% cu un fake. (Si cele OEM sunt in ultima perioada sub orice critica, pot vorbi de OEM ca am experienta la schimbat multe catre clienti, nu am experienta la "facaturi" - nu am , nu import , nu vand, imi rezerv dreptul nici sa nu montez decat cu acordul scris al clientului).

-modul cornering (foarte rar!!)

-modul autoleveling (frecvente cele cu litera C de pe B6 care nu sunt compatibile)

Nota: Cand cautati SH ,modul xenon si cornering axativa pe cei care dezmembreaza Audi noi (Q3. Q5, Q7 facelift) , putini stiu ca exista si pe Golf 6 si Passat B7. In anunturi sunt prezentate ca piese de Audi si desigur cu pret de Audi....

Voi reveni cu pret actual de reprezentanta pentru a va face o idee.

Revin si cu configuratia de pini pentru adaptor 10-14 pini.

Stadiul actual : faruri , module , becuri, adaptoare - fara autoleveling momentan si fara central electric schimbat. Led-urile se aprind la doar la intensitate maxima la aprinderea pozitiei.

Am lasat DRL pe bec din proiectorul dublu din bara.

In curand: autoleveling , ulterior - central electric.

Toate bune si spor la retrofit!!!

P.S. Cu pleopele de la CSR pentru B7 (de le userul KTY) look-ul xenonului devine mai "nervos".

Modificat 1 Aprilie, 2013 de Mecatronic

2 Aprilie, 2013

Retrofit spalator faruri Passat B7

Mentionez ca toate piesele necesare au fost luate de noi, OEM, dar din alte surse, nu sunt relevante preturile mele, dar va sugerez sa incercati in diverse directii, va pot spune ca unele piese la furnizori sunt la 1/3 din pret de reprezentanta ( la piesele scumpe ma refer care si conteaza!!!).

In paranteza sunt preturi de reprezentanta la zi cu TVA inclus.

Cele care nu sunt mentionate au fost pe stoc la mine, dar revin cu informatii totale.

Nu am facut referire la bara fata , deoarece am achizitionat-o SH, in stare perfecta.

Atentie: cand luati bara SH , verificati suporti si prinderi la cilindri, precum si la suporti de senzor parcare. Nu intrati in panica daca este deteriorat vreo unul, exista la bucata atat suporti de cilindru, cat si de senzor parcare.

Daca tot sunteti in acest moment, cumparati suporti pentru senzori PLA , ca oricum vopsiti bara. Chiar daca nu faceti retrofit , puteti pune niste senzori defecti pentru a umple gaurile.

Necesar:

Cilindru spalator dreapta 3AA955104 ( reprezentanta 189.09 lei)

Capac spalator dreapta 3AA955110 GRU (40.27)

Cilindru spalator stanga 3AA955103 (189.09)

Capac spalator stanga 3AA955109 GRU (40.27)

Clips fixare ( necesar 6 buc.) 1J0955846 (9.72)

Racord "T" 8D0955873 (14.57)

Racord "L" (necesar 3 buc.) 6R0955665 (122.70)

Pompa 6R955681 ( stoc- revin cu pret)

Garnitura pompa 431955465A ( stoc - revin cu pret)

Garnitura intre bidoane 3C0955489A (6.90)

Cot la 90 ( necesar 2 buc.) 3AA955665 (16.30)

Vas superior 3AA955453H ( stoc -revin cu pret)

Vas inferior 3AA955453J ( stoc - revin cu pret)

Kit furtune OEM , la colac de 5 m ( stoc - revin cu pret)

Mufa , pini , etc voi comunica ulterior , datele prezentate le-am avut in tableta mea.

Toate bune!

6 Aprilie, 2013

Exista cumva si kit de reparatie pentru farurile de B6?

6 Aprilie, 2013

Desigur , exista si kit de reparatie de B6 , cred ca pret de reprezentanta in jur de 150 lei/ set. Set-ul contine 3 piese si suruburil necesare. Set-ul este separat stg si dreapta.

Trimite - mi pe PM pe ce parte si care ureche, poate exista pe stoc ramase din kit-uri , de obicei la faruri care sunt recuperabile se rupe o ureche.

Toate bune!

Modificat 6 Aprilie, 2013 de Mecatronic

7 Aprilie, 2013

Multumesc, era doar informativ, pentru ca ma bate gandul la retrofit xenon OEM pe B6 si am avut ocazia sa iau farurile la un pret bun, dar erau cu urechile rupte. Probabil cine le-a cumparat a stiut despre kitul de reparatie si a profitat de ocazie. Cred ca la 100 lei farul era pomana curata.

8 Aprilie, 2013

sigur ca erau....

Da, se gasesc kit-uri de reparatie la majoritatea VW-urilor.

10 August, 2017

Update preturi 14.07.2017 - Retrofit spalator far pentru Passat B7

Realizat retrofit de curand, piese SH achizitionate de client: bara fata cu spalator si PLA, rezervor dublu + pompa

Pret bara nu stiu nici macar informativ, pret bazin + pompe = 200 lei

NOTA IMPORTANTA: ATENTIE LA ACHIZITIE !!

LA BARA CU SUPORT SPALATOR: SUPORTUL DE CILINDRU NU ESTE PIESA DE SCHIMB, NU SE LIVREAZA , DECI TREBUIE SA FIE IN STARE PERFECTA.

IDEM, SUPORT SENZOR "PLA", STG+DR.

Piese noi: ( PRET FARA TVA!)

3AA955103 ( cilindru ridicator cu sup)- 248,50 lei

3AA955104 ( cilindru ridicator cu sup)- 248,50 lei

3AA955109 ( capac)- 53,50 lei

3AA955110 (capac)- 53,50 lei

6R0955665 ( piesa unghi)- 27,85 lei ( necesar 3 buc.)

8D0955873 ( racord"T")- 27,60 lei

3AA955665 (connection piece)- 11,20 lei ( necesar 2 buc.)

1J0955846 ( clema)- 1,95 lei ( necesar 6 buc.)

Furtun nu am comandat , pentru ca aveam pe stoc ( se livreaza la kit/3m), cu aceasta ocazie am vazut aberatia maxima ( desi in Etka scrie destul de clar , la rep. se comanda multiplu de kit, sustinand ca e pret pe metru! Facturi de reparatie cu aprox. 1000 lei pentru 3 m de furtun!) Si la pretul corect mi se pare o exagerare din partea VW, aprox. 90-100 lei/metru.

Releu, suport releu, cablaj OEM, din stoc.

ATENTIE LA GARNITURA DINTRE VASE!!

COD: 3C0955489A - 9,50 lei

Prin rutarea corespunzatoare a cablajului si furtunului gofrat pentru spalator parbriz scapati de necesitatea achizitiei," kit-ului de reparatie instalatie spalat parbriz de la Audi" - cod: 4F0998102B

Necesar si doua " table" la pret tipic de VW, le aveam pe stoc, revin cu cod, nu-l am la indemana, pentru prindere vase rezervor( superior+inferior).

Aceste table nu exista pe masini cu halogen!!

Spor la cumparaturi si retrofit!!

Modificat 10 August, 2017 de Mecatronic

10 August, 2017

UPDATE:

Suporti tabla:

3C0815948 -54 lei cu Tva

3C0955473A -141 lei cu Tva

Kit furtun: - 7P6955964A - 263 lei cu Tva

Pompa spalator far: 6R0955681

Desi exista cod de piesa, urmatoarele componente nu se livreaza!

3AA807177+3AA807178 ( suporti spalator far)

3AA919399+3AA919400 (suporti PLA fata)

Cei mai apropiati suporti de PLA fata, ca unghi de aplicare, sunt cei de la CC facelift cu 3C8..., care se livreaza.

Nici piesele de PLA spate nu se livreaza, dar se pot folosi suporti din kit-ul de PDC-B7, fata sau spate.

6 Decembrie, 2017

salut,

am un B7 2011, si vreau sa ii pun xenon si leduri;

fostul proprietar a inlocuit triplele spate, acum am led,( fara sa schimbe nimic la central electric) si acum vreau sa schimb si fata.

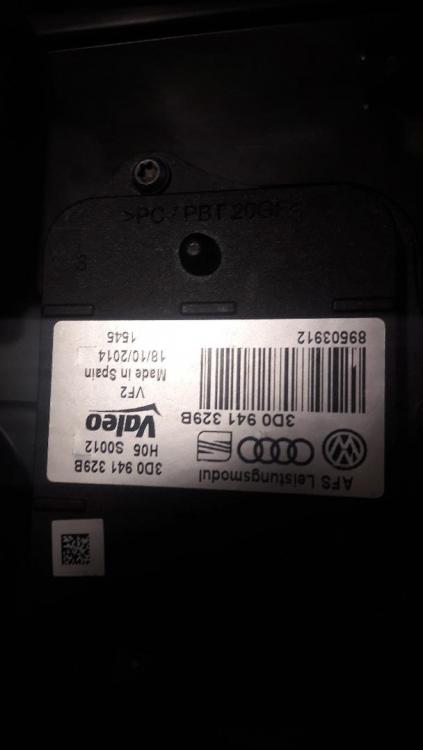

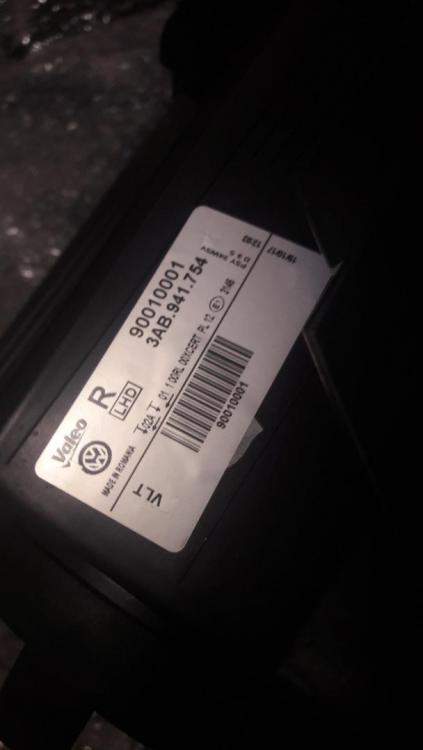

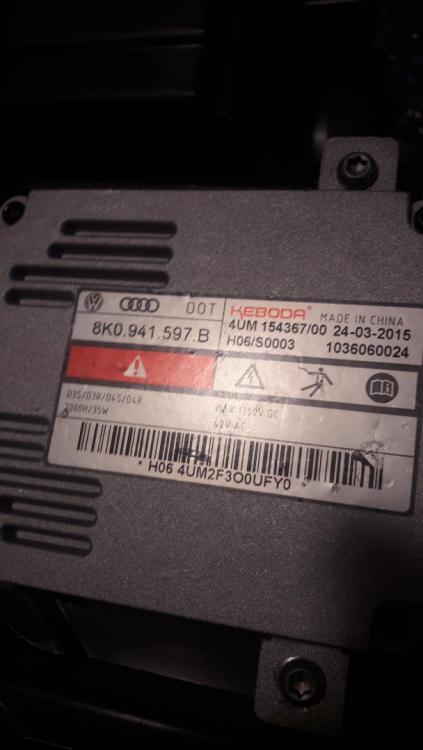

Am cumparat farurile, oferta, codurile sunt in pozele atasate.

Intrebarea mea, este nevoie sa schimb central electric(din ce am citit mai sus) - cel actual este 3AA 937 087 A? sau pot scapa doar cu codarea?

Atasez si o scanarea masinii.

Multumesc anticipat

Log-WVWZZZ3CZBP315989-154060km-95728mi.txt

6 Decembrie, 2017

Pe scurt, iti mai trebuie:

Can extended, BCM(Central electric), senzor leveling, calculator afs(sa fie tot de passat, deoarece acelasi tip este pus pe mai multe tipuri de masini si nu merge codat), cablaj complet, 3-4 ore de montaj la cineva specializat!(poate chiar mai mult)

99% bcm-ul tau nu suporta xenon, deci da trebuie schimbat!

Topicul asta este destul de bine facut! Mai citeste-l o data si citeste si ultimele doua pagini de aici:

7 Decembrie, 2017

BCM este la el cu 087, deci nu ar mai trebui schimbat.

7 Decembrie, 2017

Nu , nu trebuie schimbat - se rezolva din byte 18, asa cum am mai spus.

Enache - foloseste functia de cautare, a forumului - s-a discutat de multe ori, despre acest retrofit.

Tot asa, fa o scanare sa vedem ce can are masina.

Abia dupa ce vedem scanarea, iti putem zice 100% ce trebuie inlocuit

7 Decembrie, 2017

Multumesc pentru raspunsuri, m-am grabit ca mireasa...entuziasmat caut pe forum mai in detaliu.

Ideea e ca eu nu vreau leveling, masina este cu suspensie normala...tractiune fata.

Si o scanare:

Wednesday,06,December,2017,17:25:08:49450
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 16.8.0.3
Data version: 20160803 DS255
www.Ross-Tech.com

VIN: WVWZZZ3CZBP315989 License Plate:
Mileage: 154060km-95728mi Repair Order:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 3C (7N0)
Scan: 01 02 03 08 09 15 16 17 19 25 37 42 44 46 4F 52 53 56 61 62
72

VIN: WVWZZZ3CZBP315989 Mileage: 154060km-95728miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFFB) Labels: 03L-906-018-CFF.clb
Part No SW: 03L 906 018 BG HW: 03L 907 309 N
Component: R4 2,0L EDC H24 9936
Revision: 47H24--- Serial number: VWZCZ000000000
Coding: 001D0012042401080000
Shop #: WSC 00423 211 102020
ASAM Dataset: EV_ECM20TDI01103L906018BG 003008
ROD: EV_ECM20TDI01103L906018BG.rod
VCID: 70EFBAA6AB6239C250-8024

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 02E-927-770.clb
Part No SW: 02E 300 054 J HW: 02E 927 770 AL
Component: GSG DSG AG6 511 2604
Revision: 05351112 Serial number: 00001011160336
Coding: 0000020
Shop #: WSC 00028 028 00001
VCID: 1D31B312C470E4AAAB-8048

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 3AA-614-109.clb
Part No SW: 3AA 614 109 N HW: 3AA 614 109 N
Component: J104 C2 450M VD05 0005
Revision: --H07--- Serial number: 00000003505711
Coding: 0007603
Shop #: WSC 00028 790 00312
VCID: 387F42864B92A18258-806C

1 Fault Found:
02214 - Tire Pressure Warning
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 6
Fault Frequency: 2
Reset counter: 30
Mileage: 153938 km
Time Indication: 0
Date: 2017.11.24
Time: 13:23:43

Freeze Frame:
Speed: 42.0 km/h
Hex Value: 0x0000
Bin. Bits: 00000000 00000000
Voltage: 12.75 V
Bin. Bits: 00011111
Count: 185
Hex Value: 0x0000

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels: 3C8-907-336.clb
Part No SW: 7N0 907 426 K HW: 7N0 907 426 K
Component: AC Manuell H17 0202
Revision: 00012001
Coding: 0000000003
Shop #: WSC 00028 028 00020
ASAM Dataset: EV_Climatic A01005
ROD: EV_ClimaBasis_VW36.rod
VCID: 3C775E96B7AA8DA2BC-8068

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 3AA-937-087.clb
Part No SW: 3AA 937 087 A HW: 3AA 937 087 A
Component: BCM PQ47 H 413 0452
Revision: BB413001
Coding: 000000000000000000180080100081E443016488404C81606480C7200041
Shop #: WSC 00028 028 00001
VCID: 387F42868B92A18258-806C

Subsystem 1 - Part No SW: 3AB 955 419 HW: 3AB 955 419 Labels: 1KX-955-119.CLB
Component: Wischer 09111 10 0603
Coding: 00B795

3 Faults Found:
00984 - Left Tail Light (M4)
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 2
Fault Frequency: 22
Reset counter: 45
Mileage: 153929 km
Time Indication: 0
Date: 2017.11.24
Time: 01:56:40

Freeze Frame:
Term 15 On
Voltage: 13.15 V
ON
ON
ON
OFF
ON

00985 - Right Tail Light (M2)
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 2
Fault Frequency: 22
Reset counter: 45
Mileage: 153929 km
Time Indication: 0
Date: 2017.11.24
Time: 01:56:40

Freeze Frame:
Term 15 On
Voltage: 13.20 V
ON
ON
ON
OFF
ON

01504 - Bulb for License-Plate Light (X)
010 - Open or Short to Plus - Intermittent
Freeze Frame:
Fault Status: 00101010
Fault Priority: 2
Fault Frequency: 22
Reset counter: 45
Mileage: 153929 km
Time Indication: 0
Date: 2017.11.24
Time: 01:56:40

Freeze Frame:
Term 15 On
Voltage: 13.15 V
ON
ON
ON
OFF
ON

-------------------------------------------------------------------------------
Address 15: Airbags Labels: 5N0-959-655.lbl
Part No SW: 5N0 959 655 R HW: 5N0 959 655 R
Component: J234__101 VW10 HI 1918
Revision: 22014000 Serial number: 003K0PQM2CK1
Coding: 0012337
Shop #: WSC 00028 790 00312
VCID: 4C970E562F0A3D220C-8018

Subsystem 1 - Serial number: 6332MTS606013190

Subsystem 2 - Serial number: 6342MTS652483110

Subsystem 3 - Serial number: 6351HTS61JN7I9KJ

Subsystem 4 - Serial number: 6361HTS6A3F7I9KJ

Subsystem 5 - Serial number: 00000000000000000

Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527) Labels: 3C0-953-569.clb
Part No SW: 3C5 953 501 BG HW: 5K0 953 569 T
Component: LENKS.MODUL 009 0136
Revision: FF010039 Serial number: 20101206200324
Coding: 1992250000
Shop #: WSC 00028 028 00020
ASAM Dataset: EV_VW360SteerWheelUDS A03004
ROD: EV_VW360SteerWheelUDS.rod
VCID: 6BD5ADCA8244DA1A65-803E

Multifunction steering wheel control module:
Subsystem 1 - Part No SW: 3C8 959 537 D HW: 3C8 959 537 D Labels: 3C8-959-537.CLB
Component: E221__MFL-TK6 H06 0022
Coding: E30000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 3C8-920-xxx-17.clb
Part No SW: 3AA 920 870 A HW: 3AA 920 870 A
Component: KOMBI H20 0420
Serial number: 00000000000000
Coding: 160F01
Shop #: WSC 00028 028 00020
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04089
ROD: EV_Kombi_UDS_VDD_RM09_VW25.rod
VCID: 306F7AA66BE279C210-8064

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: 7N0-907-530-V2.clb
Part No SW: 7N0 907 530 G HW: 1K0 907 951
Component: J533 Gateway H41 1614
Revision: H41 Serial number: 071210F2002533
Coding: 461006
Shop #: WSC 00028 028 00001
VCID: 346776B697FA45E274-8060

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer Labels: 3C0-959-433-25.clb
Part No SW: 3AA 959 433 HW: 3AA 959 433
Component: IMMO 043 0399
Revision: 00043000 Serial number: VWZCZ000000000
Shop #: WSC 131071 1023 2097151
VCID: 76E38CBE010617F28A-8022

Subsystem 1 - Part No: 3C0 905 861 J
Component: ELV 029 0380
3C0905861J ELV 029 0380

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J0506) Labels: 1T0-035-680.clb
Part No SW: 1T0 035 680 C HW: 1T0 035 680 C
Component: RNS-MID H04 2660
Revision: AB001001 Serial number: VWZ6Z7J9308075
Coding: 04000402040000A000
Shop #: WSC 05314 000 00000
VCID: 2E5364DE79D66F3202-807A

1 Fault Found:
01523 - Microphone for Telephone (R38)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 5
Fault Frequency: 27
Reset counter: 5
Mileage: 153929 km
Time Indication: 0
Date: 2017.11.24
Time: 01:28:32

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels: 3C0-959-70X-GEN4.clb
Part No SW: 3AA 959 701 HW: 3C0 959 793 B
Component: TUER-SG FT 002 0529
Revision: 13110009 Serial number: 0001877912
Coding: 0204B5
Shop #: WSC 00028 028 00020
ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
ROD: EV_TSGFPQ35BRFVW46X.rod
VCID: 74E7B6B6DF7A05E2B4-8020

Slave Driver:
Subsystem 1 - Part No SW: 3C0 959 703 HW: 3C0 959 795 Labels: 1K0-959-70X-GEN4.CLB
Component: J388__TSG-HL 004 0408
Serial number: 00000001814397
Coding: 000490

1 Fault Found:
66048 - Motor for Front Window Regulator
B11EC 54 [008] - Missing Calibration / Basic Setting
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 7
Fault Frequency: 1
Reset counter: 29
Mileage: 153929 km
Date: 2017.11.24
Time: 01:28:20

-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 5N1-909-144.clb
Part No SW: 5N1 909 144 L HW: 5N1 909 148 G
Component: J500__APA-BS KL.310 0802
Revision: 1AH03729 Serial number: 00103340200901
Coding: 0000258
Shop #: WSC 00028 028 00001
VCID: 3B755D8A7AA48A9AB5-806E

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: 3C0-959-433-46.clb
Part No SW: 3AA 959 433 HW: 3AA 959 433
Component: KSG PQ47 ELV 043 0631
Revision: 00043000 Serial number: VWZCZ000000000
Coding: 02910A8002860E76300494157C084F0B607801
Shop #: WSC 00028 028 00001
VCID: 76E38CBE010617F28A-8022

Subsystem 1 - Component: Sounder n.mounted

Subsystem 2 - Component: NGS n.mounted

Subsystem 3 - Component: IRUE n.mounted

No fault code found.

-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II (J520) Labels: 1K0-907-532.clb
Part No SW: 7N0 907 532 HW: 1K0 907 951
Component: EZE_2 H41 1614
Revision: H41 Serial number: 071210F2002533
Coding: 00000008
Shop #: WSC 00028 028 00001
VCID: 6FEDB9DABE5C263A49-803A

Subsystem 1 - Part No SW: 3AA 919 204 HW: 3AA 919 204
Component: Analoguhr 003 0003

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels: 3C0-959-70X-GEN4.clb
Part No SW: 3AA 959 702 HW: 3C0 959 792 B
Component: TUER-SG BT 002 0529
Revision: 15110009 Serial number: 0001805136
Coding: 0204B4
Shop #: WSC 00028 028 00020
ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
ROD: EV_TSGBPQ35BRFVW46X.rod
VCID: 75E18BB2D4001CEA83-8020

Slave Passenger:
Subsystem 1 - Part No SW: 3C0 959 704 HW: 3C0 959 794 Labels: 1K0-959-70X-GEN4.CLB
Component: J389__TSG-HR 004 0408
Serial number: 00000001822052
Coding: 000490

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake Labels: 3AA-907-801.clb
Part No SW: 3AA 907 801 E HW: 3AA 907 801 E
Component: J540 EPB4 VW-55183 0007
Revision: H18 Serial number: 00000000074456
Coding: 0022056
Shop #: WSC 00028 028 00001
VCID: 336575AA52F442DA6D-8066

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506) Labels: 1T0-035-680.clb
Part No SW: 1T0 035 680 C HW: 1T0 035 680 C
Component: RNS-MID H04 2660
Revision: AB001001 Serial number: VWZ6Z7J9308075
Coding: 04000402040000A000
Shop #: WSC 05314 000 00000
VCID: 2E5364DE79D66F3202-807A

1 Fault Found:
01523 - Microphone for Telephone (R38)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 5
Fault Frequency: 27
Reset counter: 5
Mileage: 153929 km
Time Indication: 0
Date: 2017.11.24
Time: 01:28:32

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels: 1K0-907-534.clb
Part No SW: 7N0 907 534 HW: 1K0 907 951
Component: Batt.regelung H41 1614
Serial number: 071210F2002533
Coding: 030B185A
Shop #: WSC 00028 028 00001
VCID: 71E9BFA2A86830CA5F-8024

Subsystem 1 - Part No SW: 1K0 915 181 F HW: 1K0 915 181 A
Component: J367-BDM H07 0150
Serial number: 00000000009370213721

No fault code found.

End-------------------------(Elapsed Time: 02:51)--------------------------

7 Decembrie, 2017

Pacat de farurile alea care costa o caruta de bani. Nu e vorba doar de leveling ci si de afs.

Oricum, nu e chiar plug&play chiar si fara optiunile astea!

Ti-ar trebui si mufele adaptoare de la faruri, deci ceva cablaj oricum ai de achizitionat.

Despre can ii las pe colegii mai experimentati sa-ti explice.

7 Decembrie, 2017

Dupa un portofoliu de cel putin 10 x B7 cu retrofit xenon ( sunt autorizat sa fac asta si la masini in garantie, doar VW/Audi), iti spun acum (2017 ), nu la momentul 2013, ca este cea mai idioata treaba sa nu pui autoleveling. Un singur Polo din vreo 5, nu l-am facut cu leveling si imi pare rau, desi respecta conditia de la inceput, conducatorul auto are 55-60 kg , masina tot timpul goala, circula 99 % ziua si nu iese din oras, face 2000 km /an.

In primul rand este 100% ilegal si nu este nici o diferenta intre tine si cei cu "csenoane chinezesti" daca nu ai autoleveling.(Aia macar au reglaj manual).

La fel de ilegal esti si daca nu completezi cu instalatie de spalat faruri !! ( Nota: stiu, o sa spuneti ca la B8 in configurator este optional, astept sa ma anuntati cand o sa treceti de control trafic RAR si Politie cu argumentul asta! )

Functie de momentul in care sunt extrase farurile adaptive de sub alimentare / can , pot ramane in pozitii limita care nu se pot compensa din reglaje manuale !!

Fortarea la capete de cursa a reglajelor mecanice va duce la stricarea angrenajelor!!

Nu mai punem ca ai bordul " pom de iarna" si erori multiple , functie de includere, sau nu, in can gw list.

Solutia este: OEM sau deloc.

Exista si solutia sa nu asculti de parerea asta , sa pui adaptori 10/14, sa nu-ti pese de ceilalti participanti la trafic, sa nu ai flash pe FL cu luminile stinse, sa reglezi farurile la usa de la garaj , sa ai IC cu pom de Craciun inainte de Craciun, sa nu ai DRL "corect",..., dar sa nu ai masina in poze cu numar de inmatriculare pentru ca este o baza de date RAR in continua crestere cu cei cu "csenon"!

Asta dupa ce se pare ca esti si norocos la can -gw si bcm....

Modificat 7 Decembrie, 2017 de Mecatronic

29 August, 2018

Salutari. Eu sunt boboc boboc. Primul vw, praf cu tehnica si calculatoarele si totusi as dori sa instalez bi xenon adaptiv. Am un passat b7 din 2013 si am gasit niste faruri noi, complete. Si cam atat. Ma poate ajuta cineva mai departe? ?

multam!

Modificat 29 August, 2018 de darkm
Corecturi gramaticale :))

30 August, 2018

Dupa schimbarea becurilor D3S , faza scurta bate jos si nu vad mai nimic ! Se face o adaptare cu vcds sau trebuie mers la service pentru reglaj mecanic ? Precizez ca nu am dat farurile jos sau sa fi umblat la șuruburi ! ms

14 Decembrie, 2018

Salut. Sunt nou posesor de passat si as dori sa stiu daca am nevoie de un modul xenon/cornering/autoleveling pentru fiecare far. Dar central electric este compatibil cu xenon?

Friday,07,December,2018,20:21:18:00001
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.8.0.1 (x64)
Data version: 20170721 DS276.2
www.Ross-Tech.com


VIN: WVWZZZ3CZCE142730   License Plate:


Chassis Type: 3C-VW46 (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 25 37 42 44 46 4C 4F 52 53 56
          61 62 72

VIN: WVWZZZ3CZCE142730   Mileage: 167370km-103998miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: OK 0000
4C-Tire Pressure II -- Status: OK 0000
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFGB)       Labels:. 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 NT    HW: 03L 907 309 AE
   Component: R4 2,0L EDC   H25 4010
   Revision: 41H25---    Serial number: 00000000000000
   Coding: 001D0012040401080000
   Shop #: WSC 12113 001 1048576
   ASAM Dataset: EV_ECM20TDI01103L906018NT 003005
   ROD: EV_ECM20TDI01103L906018NT.rod
   VCID: 0918A5B8A839430EDD-805C

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 02E-927-770.clb
   Part No SW: 02E 300 057 N    HW: 02E 927 770 AL
   Component: GSG DSG AG6     512 3113
   Revision: 05551213    Serial number: 00001201200075
   Coding: 0000020
   Shop #: WSC 05311 000 00000
   VCID: 2446D40CE7DBFE66CE-8070

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 3AA-614-109.clb
   Part No SW: 3AA 614 109 AG    HW: 3AA 614 109 AG
   Component: J104   C2 450M VDE9 0023
   Revision: --H07---    Serial number: 00000005327725
   Coding: 0007612
   Shop #: WSC 05311 000 00000
   VCID: 72EAE2546DAF20D68C-8026

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels:| 5K0-907-044.clb
   Part No SW: 3AA 907 044 C    HW: 3AA 907 044 C
   Component: Climatronic   H03 0101
   Revision: 00001K01
   Coding: 0014004803
   Shop #: WSC 00015 115 00000
   ASAM Dataset: EV_Climatronic A01010
   ROD: EV_ClimaAutoBasis_VW36.rod
   VCID: 306E285C6B2352C63A-8064

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 3AA-937-087.clb
   Part No SW: 3AA 937 087 G    HW: 3AA 937 087 G
   Component: BCM PQ47 H    421 0464
   Revision: BB421001
   Coding: 000800000000000000180280540009F421D54B88406C8560E48046240041
   Shop #: WSC 05311 123 12345
   VCID: 3E720664A977B4B6B8-806A

   Subsystem 1 - Part No SW: 3AB 955 419     HW: 3AB 955 419   Labels: 1KX-955-119.CLB
   Component: Wischer 15121  10  0603
   Coding: 00BF95

   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 010212 05  54  0403
   Coding: 06302A

1 Fault Found:
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 13
                    Mileage: 166841 km
                    Time Indication: 0
                    Date: 2013.04.12
                    Time: 16:44:12

             Freeze Frame:
                        Term 15 On
                    Voltage: 13.90 V
                        ON
                        ON
                        ON
                        OFF
                        ON


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 3AE-919-475.clb
   Part No SW: 3AE 919 475 B    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0016
   Revision: --------    Serial number: 28261203202846
   Coding: 108102
   Shop #: WSC 99999 1023 2097151
   ASAM Dataset: EV_EPHVA18VW47X0000 001005
   ROD: EV_EPHVA18VW47X0000.rod
   VCID: 3E720664A177B4B6B8-806A

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 5N0-959-655.lbl
   Part No SW: 5N0 959 655 AA    HW: 5N0 959 655 AA
   Component: J234__101 VW10 HI   2118
   Revision: 24017000    Serial number: 003L7P28VY57
   Coding: 0012337
   Shop #: WSC 05311 000 00000
   VCID: 7CF6CC6C3FEB66A6D6-8028

   Subsystem 1 - Serial number: 6332MTS694730172

   Subsystem 2 - Serial number: 6342MTS638710192

   Subsystem 3 - Serial number: 6351HTS6C2B80AKJ

   Subsystem 4 - Serial number: 6361HTS6L4P20AKR

   Subsystem 5 - Serial number: 00000000000000000

   Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels:| 3C0-953-569.clb
   Part No SW: 3C9 953 501 BF    HW: 5K0 953 569 S
   Component: LENKS.MODUL   014 0140
   Revision: FF010040    Serial number: 20111017200296
   Coding: 198A250000
   Shop #: WSC 12345 333 12345
   ASAM Dataset: EV_VW360SteerWheelUDS A03004
   ROD: EV_VW360SteerWheelUDS.rod
   VCID: 6ED2F624B197043668-803A

   Multifunction steering wheel control module:
   Subsystem 1 - Part No SW: 3C8 959 537 D    HW: 3C8 959 537 D  Labels: 3C8-959-537.CLB
   Component: E221__MFL-TK6  H06 0022
   Coding: E30000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 3C8-920-xxx-17.clb
   Part No SW: 3AA 920 870 D    HW: 3AA 920 870 D
   Component: KOMBI         H03 0609
   Serial number: 00000000000000
   Coding: 161F01
   Shop #: WSC 05314 115 00000
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_A04_VW32.rod
   VCID: 336427509A3569DE47-8066

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 P    HW: 1K0 907 951
   Component: J533  Gateway H40 1623
   Revision:   H40       Serial number: 270112F2000172
   Coding: 462006
   Shop #: WSC 05314 123 12345
   VCID: 3D700168A471AFAEA1-8068

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 3C0-959-433-25.clb
   Part No SW: 3AA 959 433     HW: 3AA 959 433
   Component:    IMMO         043 0400
   Revision: 00043000    Serial number: VWZCZ000000000
   Shop #: WSC 131071 1023 2097151
   VCID: 76E2DE4401C73CF6A0-8022

   Subsystem 1 - Part No: 3C0 905 861 J
   Component:    ELV          029 0380
   3C0905861J     ELV          029 0380

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J794)       Labels:| 1K0-035-27x-37.clb
   Part No SW: 3C0 035 279 H    HW: 3C0 035 279 H
   Component: RNS315-EU   H36 0263
   Serial number: VWZAZ2M3932406
   Coding: 000004110400110000019004
   Shop #: WSC 00015 115 00000
   ASAM Dataset: EV_RNS315EUV2UDS A01004
   ROD: EV_RNS315EUV2UDS.rod
   VCID: 285EC03C53F31A06E2-807C

   Data medium:
   Subsystem 1 - Part No: 3AA 919 866
   Component: EUR_W_0038  0038

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels:| 3C0-959-70X-GEN4.clb
   Part No SW: 3AA 959 701 A    HW: 3C0 959 793 C
   Component: TUER-SG FT    002 0533
   Revision: 12110009    Serial number: 0004343644
   Coding: 0200B7
   Shop #: WSC 05311 115 00000
   ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
   ROD: EV_TSGFPQ35BRFVW46X_VW32.rod
   VCID: 35601948944177EE69-8060

   Slave Driver:
   Subsystem 1 - Part No SW: 3C0 959 703     HW: 3C0 959 795   Labels: 1K0-959-70X-GEN4.CLB
   Component: J388__TSG-HL  004 0407
   Serial number: 00000002713051
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 5N1-909-144.clb
   Part No SW: 5N1 909 144 N    HW: 5N1 909 148 G
   Component: J500__APA-BS KL.311 1101
   Revision: 1AH03735    Serial number: 00122820088001
   Coding: 0000258
   Shop #: WSC 05311 000 00000
   VCID: 3D7001686471AFAEA1-8068

1 Fault Found:
01288 - Terminal 30; Steering Assist
            011 - Open Circuit - Intermittent
             Freeze Frame:
                    Fault Status: 00101011
                    Fault Priority: 9
                    Fault Frequency: 2
                    Reset counter: 137
                    Time Indication: 0

             Freeze Frame:
                        Term 15 On
                    RPM: 0 /min
                    Speed: 0.0 km/h
                    (no units): 2.0
                    Voltage: 4.00 V


-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 3C0-959-433-46.clb
   Part No SW: 3AA 959 433     HW: 3AA 959 433
   Component:    KSG PQ47 ELV 043 0634
   Revision: 00043000    Serial number: VWZCZ000000000
   Coding: 0091020052830E76340494157C084F0B6058C1
   Shop #: WSC 05311 123 12345
   VCID: 76E2DE4401C73CF6A0-8022

   Subsystem 1 - Component:   Sounder n.mounted

   Subsystem 2 - Component:       NGS n.mounted

   Subsystem 3 - Component:      IRUE n.mounted

No fault code found.

-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II (J520)       Labels:. 1K0-907-532.clb
   Part No SW: 7N0 907 532     HW: 1K0 907 951
   Component: EZE_2         H40 1623
   Revision:   H40       Serial number: 270112F2000172
   Coding: 00000008
   Shop #: WSC 05314 123 12345
   VCID: 6FECEB20BE9D0D3E63-803A

   Subsystem 1 - Part No SW: 3AA 919 204 A    HW: 3AA 919 204 A
   Component: Analoguhr  004 0003

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels:| 3C0-959-70X-GEN4.clb
   Part No SW: 3AA 959 702 A    HW: 3C0 959 792 C
   Component: TUER-SG BT    002 0533
   Revision: 14110009    Serial number: 0004358430
   Coding: 0200B6
   Shop #: WSC 05311 115 00000
   ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
   ROD: EV_TSGBPQ35BRFVW46X_VW32.rod
   VCID: 36621E4489477CF660-8062

   Slave Passenger:
   Subsystem 1 - Part No SW: 3C0 959 704     HW: 3C0 959 794   Labels: 1K0-959-70X-GEN4.CLB
   Component: J389__TSG-HR  004 0407
   Serial number: 00000002706068
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake        Labels: 3AA-907-801.clb
   Part No SW: 3AA 907 801 G    HW: 3AA 907 801 G
   Component: J540 EPB4  VW-64783 0009
   Revision:   H19       Serial number: 00000000663699
   Coding: 0022167
   Shop #: WSC 05311 000 00000
   VCID: 356019485C4177EE69-8060

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7N0 907 534     HW: 1K0 907 951
   Component: Batt.regelung H40 1623
   Serial number: 270112F2000172
   Coding: 030F185A
   Shop #: WSC 05314 123 12345
   VCID: 71E8ED58A8A91BCE75-8024

   Subsystem 1 - Part No SW: 1K0 915 181 H    HW: 1K0 915 181 A
   Component: J367-BDM  H07 0180
   Serial number: 00000000008900679052

No fault code found.

End-------------------------(Elapsed Time: 03:00)--------------------------

15 Decembrie, 2018

Ai nevoie de farurile complete plus modul leveling și senzor bascula, precum și de cablajele adiacente.

Centrala ta se poate coda pentru farurile bixenon oem

15 Decembrie, 2018

@F l o r i n ce cod trebuie sa aiba centrala ca sa stie si bixenon? Atasez un scan. PS, eroare pe can e de la modul camera spate.
Chassis Type: 3C (7N0)
Scan: 01 02 03 08 09 10 13 15 16 17 18 19 25 37 42 44 46 4F 52 53
56 61 62 65 69 6C 6D 72 77 A5

VIN: WVWZZZ3CZBE331517 Mileage: 241840km-150272miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: Malfunction 0010
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: Malfunction 0010
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFFB) Labels: 03L-906-018-CFF.clb
Part No SW: 03L 906 018 BG HW: 03L 907 309 N
Component: R4 2,0L EDC H24 8243
Revision: 47H24--- Serial number: 00000000000000
Coding: 001D003A047401080000
Shop #: WSC 00015 115 00000
ASAM Dataset: EV_ECM20TDI01103L906018BG 003007
ROD: EV_ECM20TDI01103L906018BG.rod
VCID: 70F6C1B3FAA3EA02EF00065-8024

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 02E-927-770.lbl
Part No SW: 02E 300 054 J HW: 02E 927 770 AL
Component: GSG DSG AG6 511 2603
Revision: 05351112 Serial number: 00001011260989
Coding: 0000020
Shop #: WSC 05311 000 00000
VCID: 1D28C8075DB13BEA1446979-8048

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 3AA-614-109.clb
Part No SW: 3AA 614 109 P HW: 3AA 614 109 P
Component: J104 C2 450M V5D8 0011
Revision: --H07--- Serial number: 00000003379894
Coding: 0121267
Shop #: WSC 05311 000 00000
VCID: 3A62239BEC5F6CD2112454D-806E

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 5K0-907-044.clb
Part No SW: 5K0 907 044 EC HW: 5K0 907 044 EC
Component: Climatronic H17 1010
Revision: 00003001
Coding: 0000000003
Shop #: WSC 00015 115 00000
ASAM Dataset: EV_Climatronic A01010
ROD: EV_ClimaAutoBasis_VW36.rod
VCID: 70F6C1B3FAA3EA02EF00065-8024

1 Fault Found:
9481988 - Air Quality Sensor
B10AF 04 [008] - Internal System Fault
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 2
Reset counter: 0
Mileage: 241531 km
Date: 2018.10.25
Time: 13:35:24

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 3AA-937-087.clb
Part No SW: 3AA 937 087 A HW: 3AA 937 087 A
Component: BCM PQ47 H 413 0452
Revision: BB413001
Coding: 0002000000000000001C0080740081E447510088476DA5606480C7200041
Shop #: WSC 05311 000 00000
VCID: 38663993D25372C2E750BE5-806C

Subsystem 1 - Part No SW: 3AB 955 419 HW: 3AB 955 419 Labels: 1KX-955-119.CLB
Component: Wischer 11121 10 0603
Coding: 00B795

Subsystem 2 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 211210 05 54 0403
Coding: 033028

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791) Labels: 3AA-919-475.clb
Part No SW: 3AA 919 475 D HW: 3AA 919 475 A
Component: PARKHILFE PLA H04 0007
Revision: -------- Serial number: 20431034500910
Coding: 318306
Shop #: WSC 99999 1023 2097151
ASAM Dataset: EV_EPHVA2C000000000 001006
ROD: EV_EPHVA2C000000000_SE36.rod
VCID: 3C6E2583E66B5E620338425-8068

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg Labels: None
Part No SW: 3AA 907 567 HW: 3AA 907 567
Component: AC201 RDW A 036 0143
Revision: 00036000 Serial number: 00000000902054
Coding: 0010000
Shop #: WSC 05311 000 00000
VCID: 77E4FAAF9FCDB1BA2ECAF51-8022

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags Labels: 5N0-959-655.lbl
Part No SW: 5N0 959 655 R HW: 5N0 959 655 R
Component: J234__101 VW10 HI 1918
Revision: 22014000 Serial number: 003K0PRNQ2C9
Coding: 0012337
Shop #: WSC 05311 000 00000
VCID: 4C8E7543B6CBE262B398925-8018

Subsystem 1 - Serial number: 6332MTS653583280

Subsystem 2 - Serial number: 6342MTS690073370

Subsystem 3 - Serial number: 6351HTS6HA34L9KR

Subsystem 4 - Serial number: 6361HTS6L712L9KJ

Subsystem 5 - Serial number: 00000000000000000

Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527) Labels: 3C0-953-569.clb
Part No SW: 3C9 953 501 BM HW: 5K0 953 569 T
Component: LENKS.MODUL 009 0136
Revision: FF010039 Serial number: 20101215101607
Coding: 399AA50001
Shop #: WSC 00015 115 00000
ASAM Dataset: EV_VW360SteerWheelUDS A03004
ROD: EV_VW360SteerWheelUDS.rod
VCID: 75F8F0A785C1CF2A3CF6DF9-8020

Multi Function Steering Wheel Control Module:
Subsystem 1 - Part No SW: 3C8 959 537 D HW: 3C8 959 537 D
Component: E221__MFL-TK6 H06 0022
Coding: E30000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 3C8-920-xxx-17.clb
Part No SW: 3AA 920 880 A HW: 3AA 920 880 A
Component: KOMBI H02 0206
Serial number: 00000000000000
Coding: 161F00
Shop #: WSC 05314 115 00000
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04089
ROD: EV_Kombi_UDS_VDD_RM09_SK35.rod
VCID: 317004B73129A30AA08ECB9-8064

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat Labels: 1K0-815-007.clb
Part No: 7N0 963 272 A
Component: Standheizer 043 4730
Revision: 00043000 Serial number: 09022127000000
Coding: 0031032
Shop #: WSC 05311 000 00000
VCID: 337C0EBFCB359D9AD262E11-8066

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: 7N0-907-530-V2.clb
Part No SW: 7N0 907 530 G HW: 1K0 907 951
Component: J533 Gateway H41 1614
Revision: H41 Serial number: 211210F2000389
Coding: 462006
Shop #: WSC 05314 000 00000
VCID: 347E0DA3CE3B96A2CB68EA5-8060

1 Fault Found:
00469 - Infotainment Databus in Single Wire Operation
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 254
Reset counter: 216
Mileage: 228560 km
Time Indication: 0
Date: 2011.11.07
Time: 17:17:04

-------------------------------------------------------------------------------
Address 25: Immobilizer Labels: 3C0-959-433-25.clb
Part No SW: 3AA 959 799 HW: 3AA 959 799
Component: IMMO 083 0399
Revision: 00083000 Serial number: VWZCZ000000000
Shop #: WSC 131071 1023 2097151
VCID: 05188067D521D32A2C56EF9-8050

Subsystem 1 - Part No: 3C0 905 861 J
Component: ELV 029 0380
3C0905861J ELV 029 0380

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J0506) Labels: 1T0-035-680.clb
Part No SW: 1T0 035 680 C HW: 1T0 035 680 C
Component: RNS-MID H42 2720
Revision: AB001001 Serial number: VWZ6Z7K5363100
Coding: 04000442040000A000
Shop #: WSC 05314 123 12345
VCID: 2E4A1FCB2017BC72BDAC28D-807A

1 Fault Found:
02873 - Control Module for Back-Up Camera (J772)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 5
Fault Frequency: 2
Reset counter: 254
Mileage: 241584 km
Time Indication: 0

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels: 3C0-959-70X-GEN4.clb
Part No SW: 3AA 959 701 A HW: 3C0 959 793 C
Component: TUER-SG FT 002 0529
Revision: 12110009 Serial number: 0001942853
Coding: 0210FF
Shop #: WSC 05311 115 00000
ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
ROD: EV_TSGFPQ35BRFVW46X.rod
VCID: 357830A7C5418F2AFC769F9-8060

Slave Driver:
Subsystem 1 - Part No SW: 3AA 959 703 HW: 3C0 959 794 B Labels: 1K0-959-70X-GEN4.CLB
Component: J388__TSG-HL 004 0407
Serial number: 00000001775124
Coding: 0000D8

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 5N1-909-144.clb
Part No SW: 5N1 909 144 L HW: 5N1 909 148 G
Component: J500__APA-BS KL.310 0802
Revision: 1AH03729 Serial number: 00103490078701
Coding: 0000258
Shop #: WSC 05311 000 00000
VCID: 3B6C269FE36555DA0A32591-806E

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: 3C0-959-799-46.clb
Part No SW: 3AA 959 799 HW: 3AA 959 799
Component: 02 KESSY PQ47 083 0323
Revision: 00083000 Serial number: VWZCZ000000000
Coding: 01900A00D2C34E76300494157E00CFCE705801030424B8
Shop #: WSC 05311 000 00000
VCID: 05188067D521D32A2C56EF9-8050

Subsystem 1 - Part No: 1K8 951 605 A
Component: LIN BACKUP HORN H11 9004

Subsystem 2 - Part No: 3C0 951 171 C
Component: Neigungssensor 004 0611

Subsystem 3 - Part No: 3C0 951 171 C
Component: Innenraumueberw.004 0611

1 Fault Found:
01134 - Alarm Horn (H12)
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 4
Fault Frequency: 51
Reset counter: 216
Mileage: 240999 km
Time Indication: 0
Date: 2013.02.26
Time: 14:08:09

-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II (J520) Labels: 1K0-907-532.clb
Part No SW: 7N0 907 532 HW: 1K0 907 951
Component: EZE_2 H41 1614
Revision: H41 Serial number: 211210F2000389
Coding: 00000008
Shop #: WSC 05314 000 00000
VCID: 6FF4C2CFE79DF57AF63A1D1-803A

Subsystem 1 - Part No SW: 3AA 919 204 HW: 3AA 919 204
Component: Analoguhr 003 0003

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels: 3C0-959-70X-GEN4.clb
Part No SW: 3AA 959 702 A HW: 3C0 959 792 C
Component: TUER-SG BT 002 0529
Revision: 14110009 Serial number: 0001950646
Coding: 0210FE
Shop #: WSC 05311 115 00000
ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
ROD: EV_TSGBPQ35BRFVW46X.rod
VCID: 367A37ABD8478432F57C80D-8062

Slave Passenger:
Subsystem 1 - Part No SW: 3AA 959 704 HW: 3C0 959 795 B Labels: 1K0-959-70X-GEN4.CLB
Component: J389__TSG-HR 004 0407
Serial number: 00000001786901
Coding: 0000D8

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake Labels: 3AA-907-801.clb
Part No SW: 3AA 907 801 E HW: 3AA 907 801 E
Component: J540 EPB4 VW-55183 0007
Revision: H18 Serial number: 00000000100076
Coding: 0022067
Shop #: WSC 05311 000 00000
VCID: 337C0EBFCB359D9AD262E11-8066

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506) Labels: 1T0-035-680.clb
Part No SW: 1T0 035 680 C HW: 1T0 035 680 C
Component: RNS-MID H42 2720
Revision: AB001001 Serial number: VWZ6Z7K5363100
Coding: 04000442040000A000
Shop #: WSC 05314 123 12345
VCID: 2E4A1FCB2017BC72BDAC28D-807A

1 Fault Found:
02873 - Control Module for Back-Up Camera (J772)
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00100100
Fault Priority: 5
Fault Frequency: 2
Reset counter: 254
Mileage: 241584 km
Time Indication: 0

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels: 1K0-907-534.clb
Part No SW: 7N0 907 534 HW: 1K0 907 951
Component: Batt.regelung H41 1614
Serial number: 211210F2000389
Coding: 030B185A
Shop #: WSC 05314 000 00000
VCID: 71F0C4B7F1A9E38AE00E0B9-8024

Subsystem 1 - Part No SW: 1K0 915 181 F HW: 1K0 915 181 A
Component: J367-BDM H07 0150

No fault code found.

-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502) Labels: 3AA-907-273.clb
Part No SW: 3AA 907 273 B HW: 3AA 907 273 B
Component: RDKBERU30 H08 0008
Serial number: 10000000009470
ASAM Dataset: EV_RDKBERU30 003010
ROD: EV_RDKBERU30_VW36.rod
VCID: 337C0EBFCB35911AD262E11-8066

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels: 7N0-907-383.clb
Part No SW: 7N0 907 383 HW: 7N0 907 383
Component: Anhaenger H07 0101
Revision: 3I001002 Serial number: 00000139837791
Coding: 4106040000000000
Shop #: WSC 05314 000 00000
VCID: 73FCCEBF8BB5D19A12E2211-8026

No fault code found.

-------------------------------------------------------------------------------
Address 6C: Back-up Cam. Labels: 5N0-907-441.clb
Part No SW: 3C9 907 441 HW: 3C9 907 441
Component: J772__Rearview 0020
Revision: 00H09000 Serial number: 525PA8-J0Y1021
Coding: 0030007
Shop #: WSC 05311 000 00000
VCID: 68C6A9D3C2732E42B770AE5-803C

No fault code found.

-------------------------------------------------------------------------------
Address 6D: Trunk Elect. Labels: None
Part No SW: 3C9 827 383 J HW: 3C9 827 383 J
Component: J605 HECKDECKEL 0804
Revision: 00H27001
Shop #: WSC 05314 000 00000
VCID: 38663993D2537EC2E750BE5-806C

Subsystem 1 - Part No: 3C9 827 384 J
Component: J756 HECKDECKEL 0804

Subsystem 2 - Serial number: 1000H27001001C0159ÿ

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412) Labels: 7P6-035-730.clb
Part No SW: 7P6 035 730 D HW: 7P6 035 730 D
Component: TELEFON H05 0440
Revision: 1B001001 Serial number: 00007669128141
Coding: 0A01000000000001
Shop #: WSC 00015 115 00000
ASAM Dataset: UHVNA A01007
ROD: UHVNA.rod
VCID: 337C0EBFCB35911AD262E11-8066

No fault code found.

-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242) Labels: 3AA-980-654.clb
Part No SW: 3AA 980 654 A HW: 3AA 980 654 A
Component: MFK_Gen1 H08 0200
Serial number: 0136423051
Coding: 010000000102020D0200000001000000
Shop #: WSC 05311 115 00000
ASAM Dataset: EV_47X 001639
ROD: EV_47X.rod
VCID: 367A37ABD8478432F57C80D-8062

No fault code found.

End-------------------------(Elapsed Time: 03:55)--------------------------

15 Decembrie, 2018

Suporta

26 Decembrie, 2018

Unde se monteaza mai exact modulul AFS,in spatele rcd-ului, torpedoului?

Modificat 26 Decembrie, 2018 de svflorin

27 Decembrie, 2018

de fabrica, pe brida de metal de pe consola centrala, la pasager, in lateral stanga torpedou.

13 Ianuarie, 2019

Salutare,

Aveti idee daca merita sa cumpar un senzor second hand de autoleveling (spate stanga)? Nu mai functioneaza exact pe partea pe care am amortizorul scurs.

Sper sa nu fi gresit topicul.

Mersi

14 Ianuarie, 2019

daca este convenabil la pret, merita. Daca este bun, vei afla dupa ce il montezi pe masina

Retrofit xenon OEM -Passat B7 -nota tehnica

Postare recomandată

Mecatronic

Link către comentariu

Distribuie pe alte siteuri

Mecatronic

Link către comentariu

Distribuie pe alte siteuri

EWS

Link către comentariu

Distribuie pe alte siteuri

Mecatronic

Link către comentariu

Distribuie pe alte siteuri

EWS

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

Mecatronic

Link către comentariu

Distribuie pe alte siteuri

Mecatronic

Link către comentariu

Distribuie pe alte siteuri

enache184

Link către comentariu

Distribuie pe alte siteuri

dragos_u

Link către comentariu

Distribuie pe alte siteuri

Al Bundy

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

enache184

Link către comentariu

Distribuie pe alte siteuri

dragos_u

Link către comentariu

Distribuie pe alte siteuri

Mecatronic

Link către comentariu

Distribuie pe alte siteuri

darkm

Link către comentariu

Distribuie pe alte siteuri

casper_bdc

Link către comentariu

Distribuie pe alte siteuri

svflorin

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

Raulbogdan

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

svflorin

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

banciu28

Link către comentariu

Distribuie pe alte siteuri

F l o r i n

Link către comentariu

Distribuie pe alte siteuri

Pentru a adăuga comentarii este necesară înregistrarea sau autentificarea

Înregistrare membru

Autentificare
